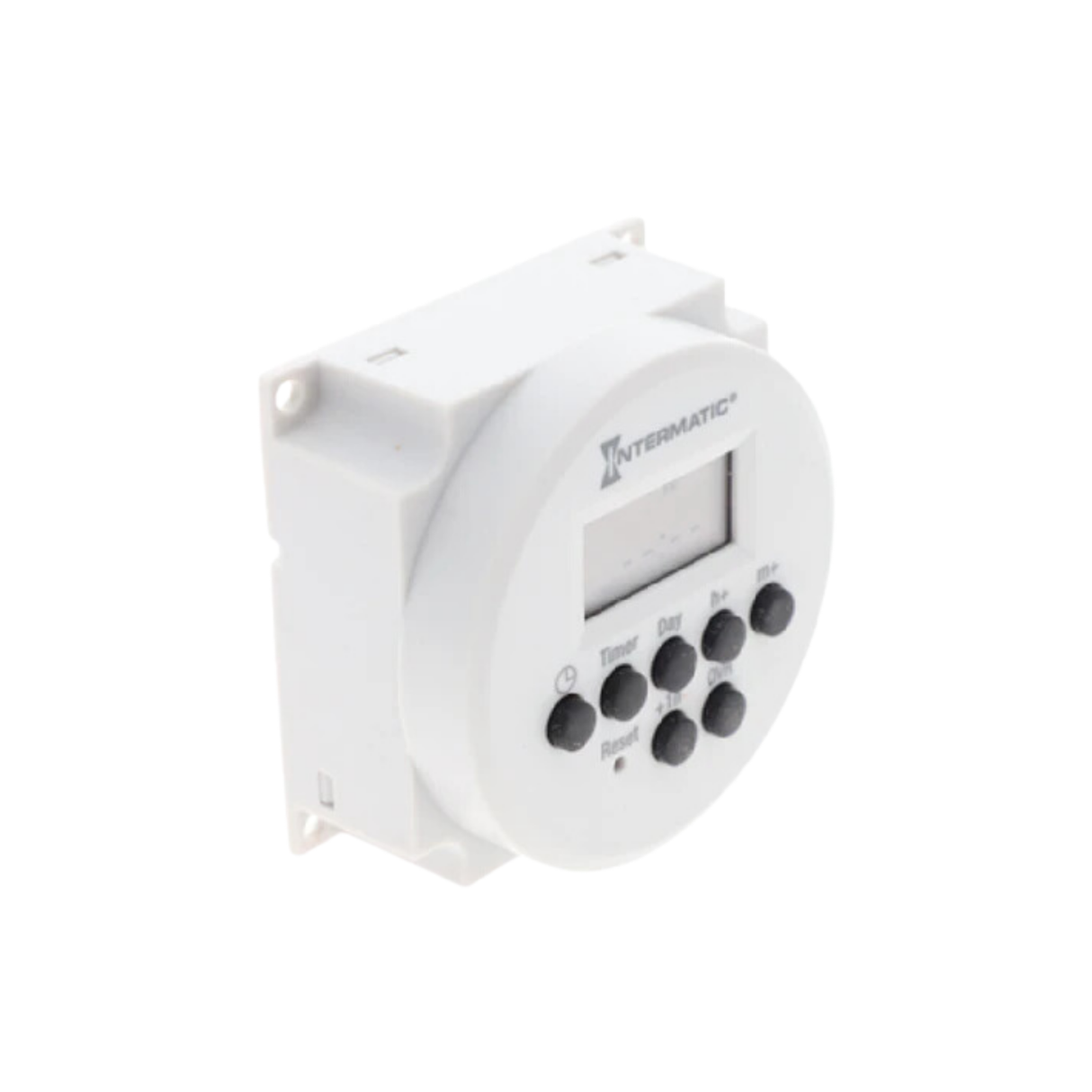

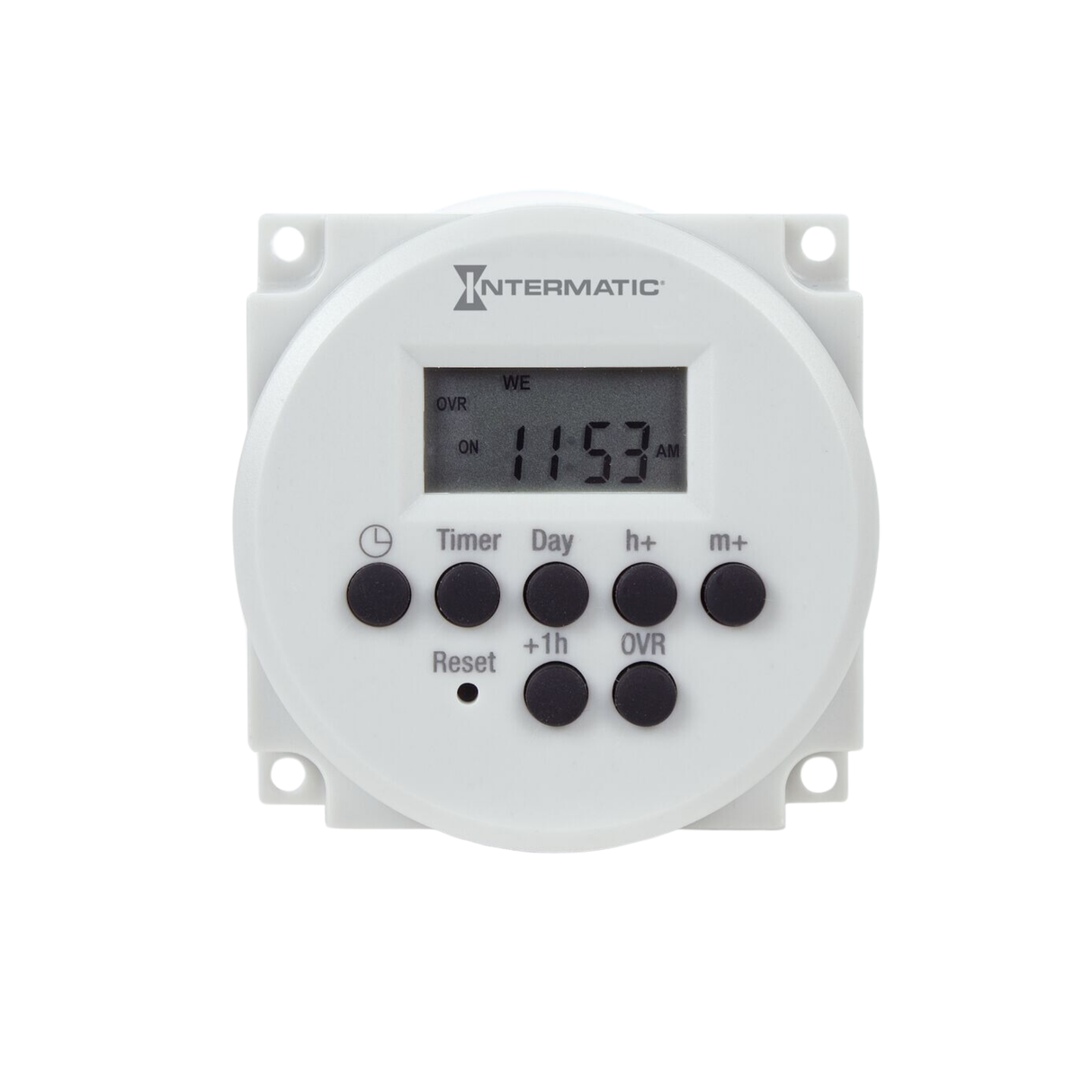

Intermatic FM1D14-LV-U 24 VAC 60 Hz Voltage Specific 24 Hours, 7-Day General Purpose Time Control
Intermatic FM1D14-LV-U 24 VAC 60 Hz Voltage Specific 24 Hours, 7-Day General Purpose Time Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Intermatic FM1D14-LV-U 24 VAC 60 Hz Voltage Specific 24 Hours, 7-Da...
Description
Description
The FM1D14 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules. The FM1D14 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
Features:
24-Hour or 7-day applications.
14 Setpoint programs.
Easy to program.
Manual override with status indication.
Self-recharging battery with backup protection up to 2500-hours.
LCD display.
A models come with clear dust cover.
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: FM1D14-LV-U
Product Type: General Purpose Time Control
Material: Noryl
Voltage Rating: 24 VAC
Frequency Rating: 60 Hz
Magnetic Ballast (NO) Load Range: 8 A, 277 VAC
Tungsten (NO) Load Rating: 1000 W, 120 VAC
Magnetic Ballast (NC) Load Rating: 8 A, 120 VAC
Resistive (NC) Load Rating: 30 A, 120-277 VAC
Voltage Selection Type: Voltage Specific
Operating Temperature: 5 to 131 Degrees F
Operation Mode: 24 Hours, 7-Day
Minimum Wire Size: #24 AWG
Maximum Wire Size: #10 AWG
Dimensions: 3.35" x 3.8" x 2.5"
Weight: 0.29 lb.
