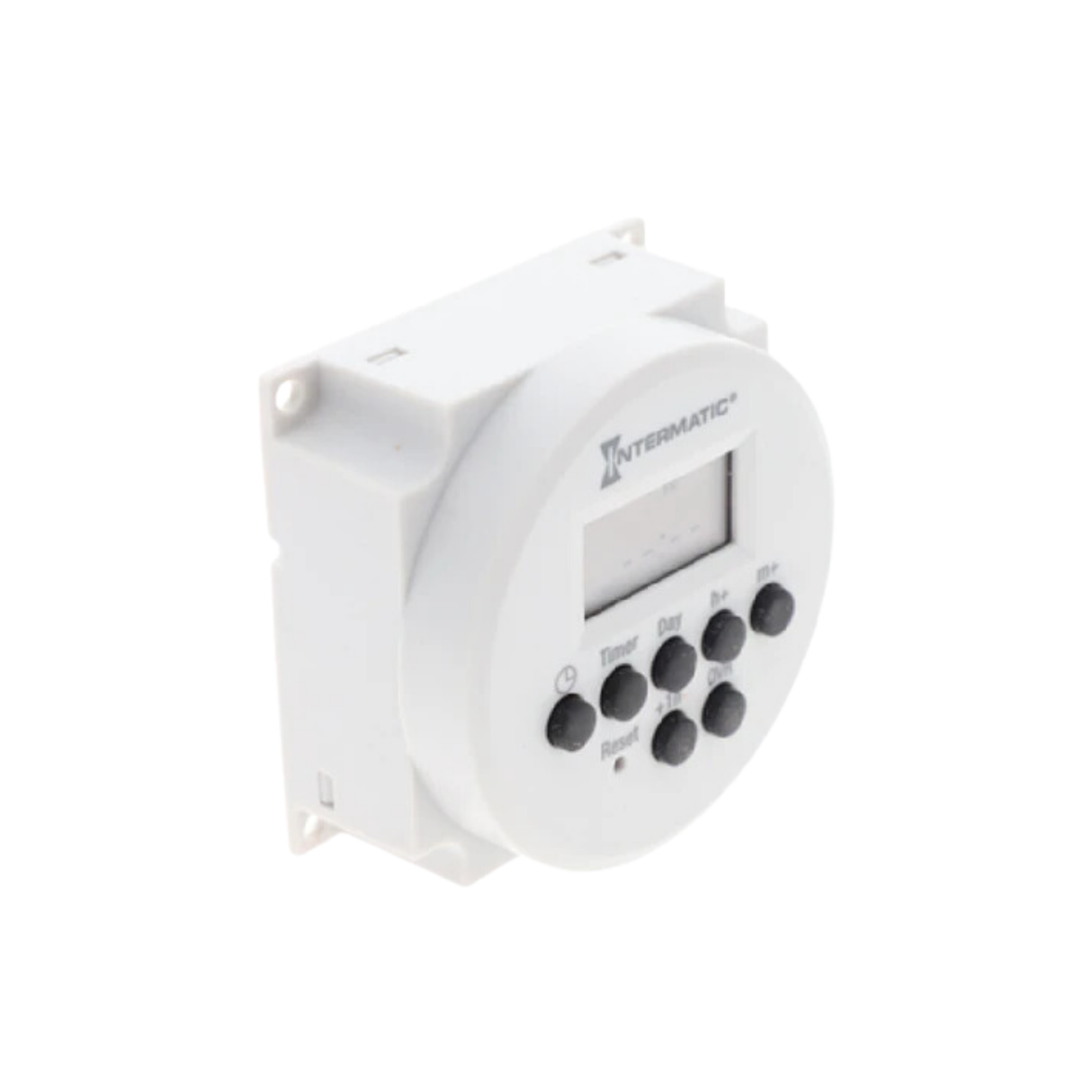

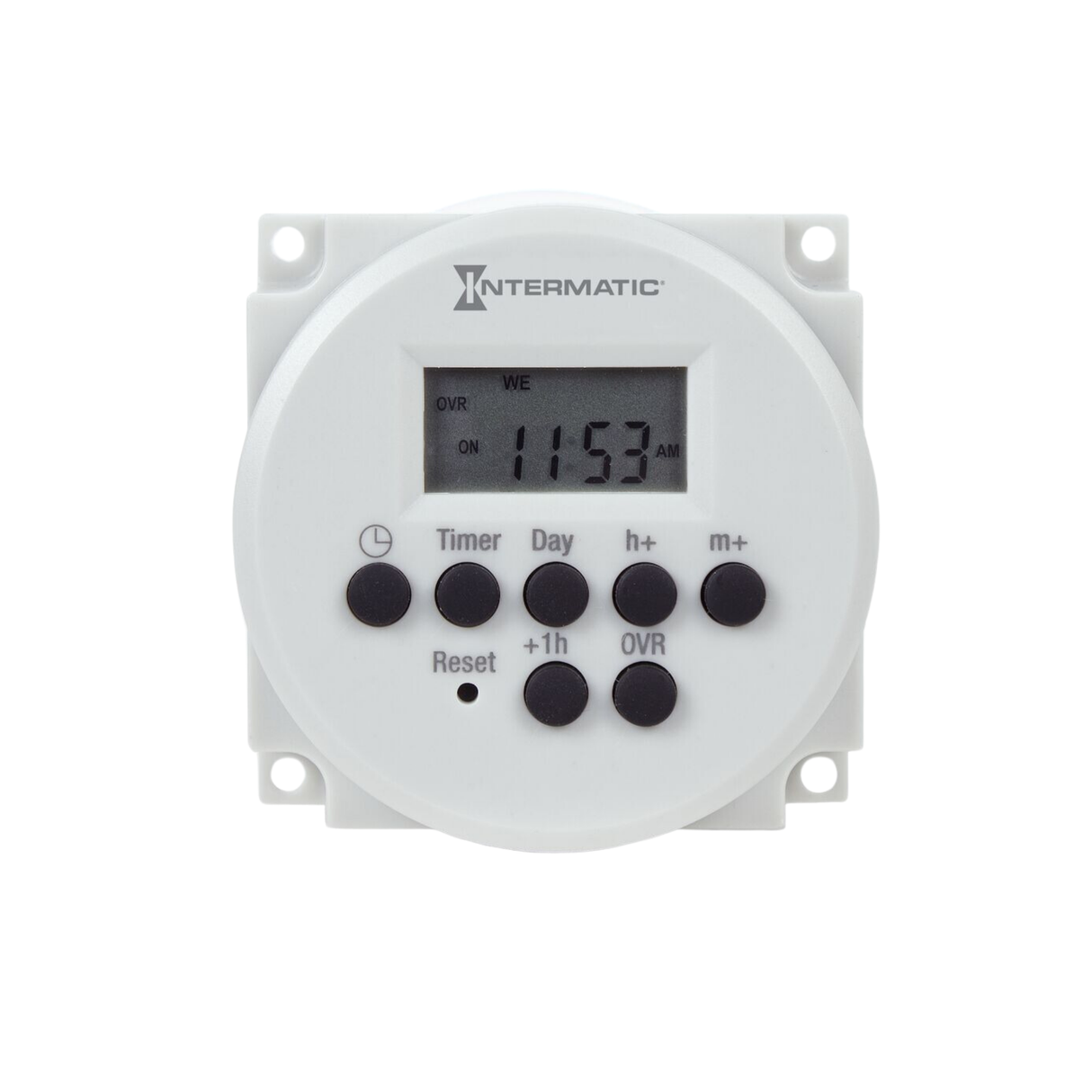

Intermatic FM1D20-AV-U 120 V 15 A SPDT 24 hour, 7-day, Cycle Electronic Surface/DIN Rail Mount Timer
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Intermatic FM1D20-AV-U 120 V 15 A SPDT 24 hour, 7-day, Cycle Electr...
Description
Description
The FM1D20 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules with integrated cycle timer. The FM1D20 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
Features:
24-Hour or 7-day applications.
20 Setpoint programs.
Easy to program.
Manual override with status indication.
Self-recharging battery with backup protection up to 2500-hours.
LCD display.
A & E models come with clear dust cover.
Cycle timer function.
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: FM1D20-AV-U
Product Type: Electronic Surface/DIN Rail Mount Timer
Material: Noryl
Voltage Rating: 120 V
Current Rating: 15 A
Voltage Selection Type: Voltage Specific
Operation Mode: 24 hour, 7-day, Cycle
General Purpose (NO) Voltage Rating: 15 A, 277 VAC
Electronic Ballast (NO) Voltage Rating: 4.9 A, 120 VAC
Magnetic Ballast (NO) Voltage Rating: 8 A, 277 VAC
Tungsten (NO) Load Ratings: 1000 W, 120 VAC
General Purpose (NC) Voltage Rating: 15 A, 277 VAC
Magnetic Ballast (NC) Voltage Rating: 8 A, 120 VAC
Motor Load Ratings NO Ranges: 1/2 HP @ 120 VAC; 10 FLA, 60 LRA @ 250 VAC; 1 HP @ 250 VAC
Motor Load Ratings NC Ranges: 1/2 HP @ 120/240 VAC; 10 FLA, 60 LRA @ 250 VAC
Maximum Power Consumption: 1.4 W
No. of Circuit: 1
Operating Temperature Range: 5 to 131 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Minimum Wire Size: #24 AWG
Maximum Wire Size: #10 AWG
Minimum ON/OFF Time: 1 Minute
Switch Type: SPDT
Wiring Option: Spade terminals for #24 to #10 AWG wire (A models)
Mounting: DIN Rail, Surface
Dimensions: 3.4" x 3.8" x 2.5"
Weight: 0.3 lb.
