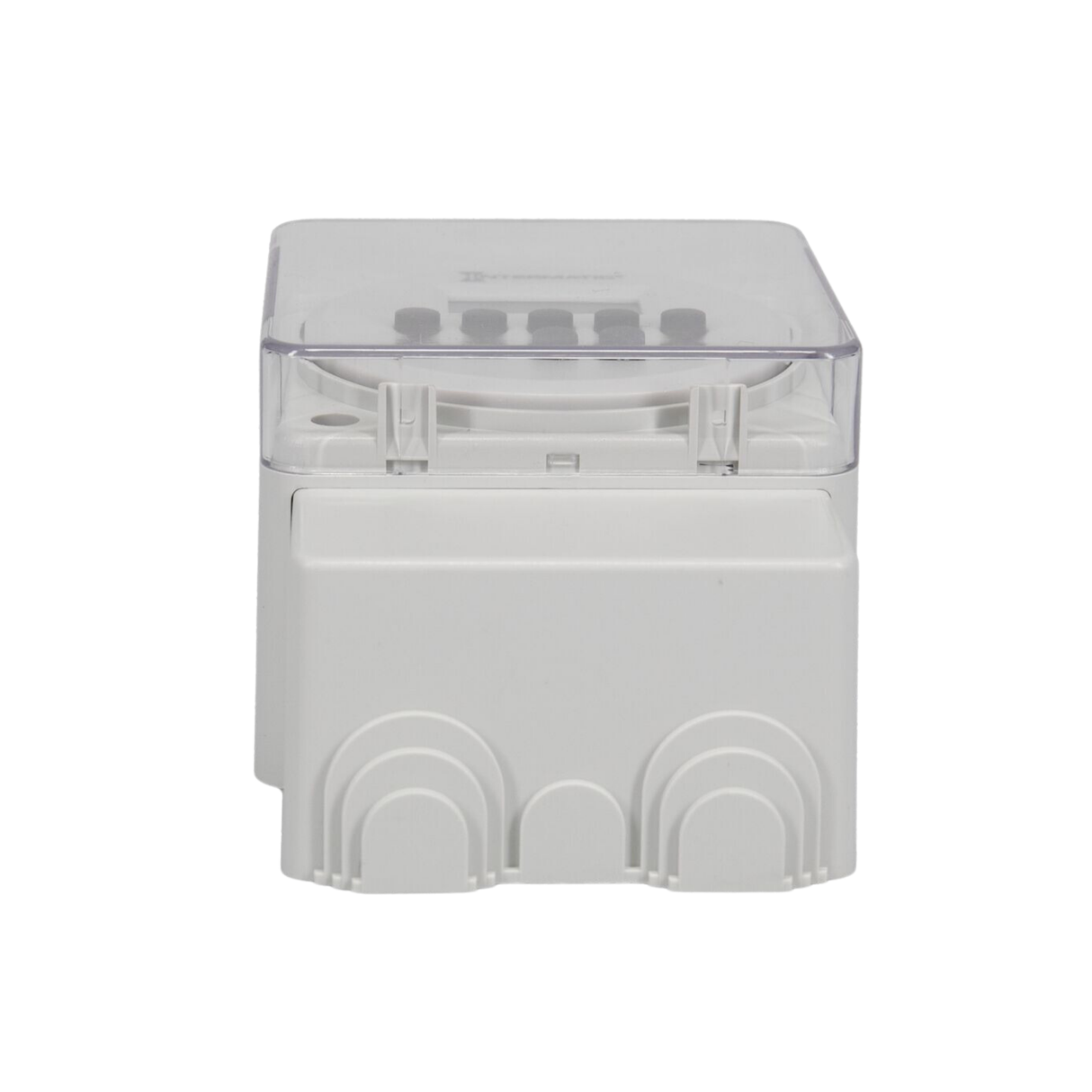

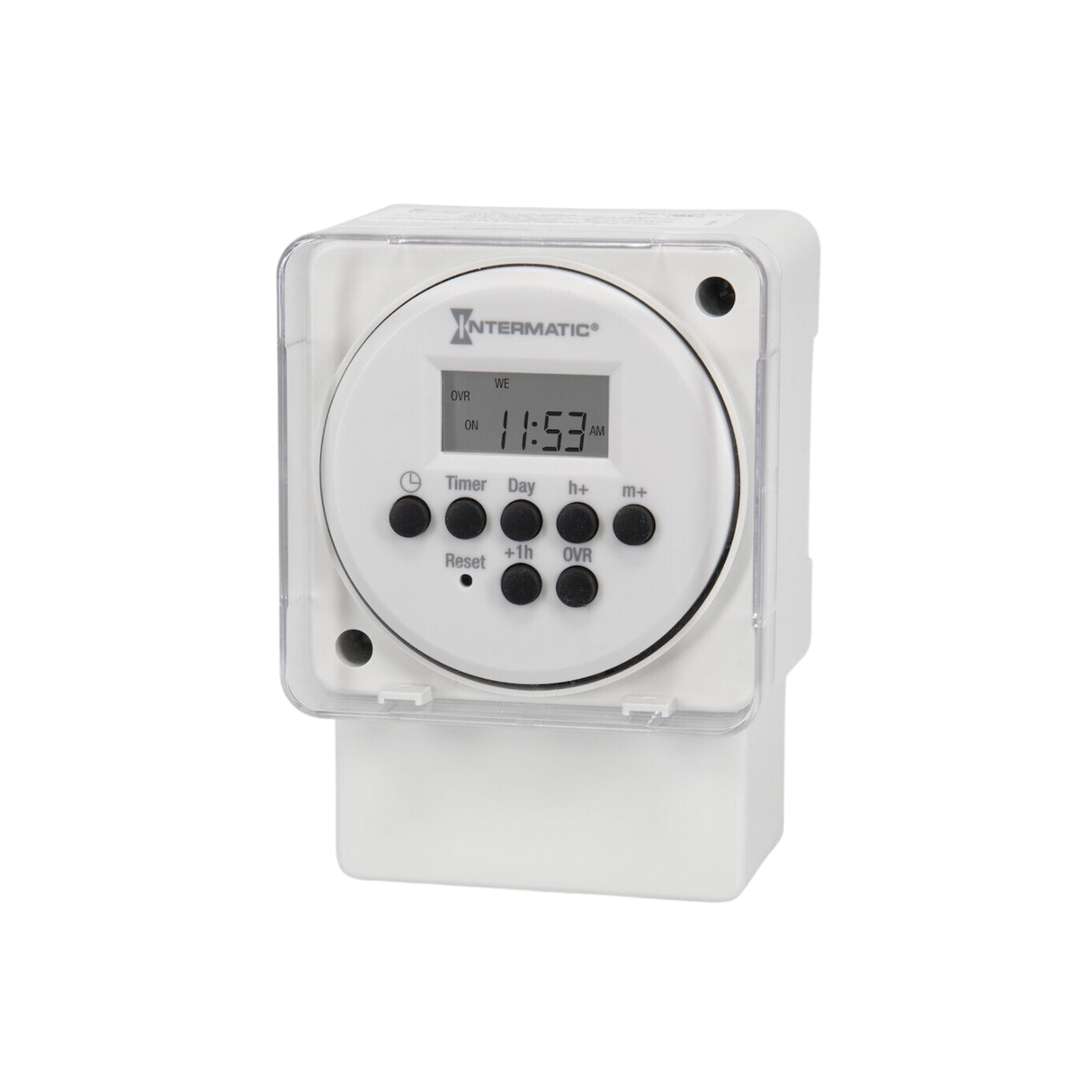

Intermatic FM1D20A-AV 120 V 15 A 1.4 W 24 hour, 7-day, Cycle Electronic Surface/DIN Rail Mount Timer
Intermatic FM1D20A-AV 120 V 15 A 1.4 W 24 hour, 7-day, Cycle Electronic Surface/DIN Rail Mount Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
The FM1D20 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules with integrated cycle timer. The FM1D20 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.
Features:
24-Hour or 7-day applications.
20 Setpoint programs.
Easy to program.
Manual override with status indication.
Self-recharging battery with backup protection up to 2500-hours.
LCD display.
A & E models come with clear dust cover.
Cycle timer function.
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: FM1D20A-AV
Product Type: Electronic Surface/DIN Rail Mount Timer
Material: Noryl
Voltage Rating: 120 V
Current Rating: 15 A
Voltage Selection Type: Voltage Specific
Operation Mode: 24 hour, 7-day, Cycle
General Purpose (NO) Voltage Rating: 15 A, 277 VAC
Electronic Ballast (NO) Voltage Rating: 4.9 A, 120 VAC
Magnetic Ballast (NO) Voltage Rating: 8 A, 277 VAC
General Purpose (NC) Voltage Rating: 15 A, 277 VAC
Magnetic Ballast (NC) Voltage Rating: 8 A, 120 VAC
Motor Load Ratings NO Ranges: 1/2 HP @ 120 VAC; 10 FLA, 60 LRA @ 250 VAC; 1 HP @ 250 VAC
Motor Load Ratings NC Ranges: 1/2 HP @ 120/240 VAC; 10 FLA, 60 LRA @ 250 VAC
Maximum Power Consumption: 1.4 W
No. of Circuit: 1
Operating Temperature Range: 5 to 131 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Minimum Wire Size: #24 AWG
Maximum Wire Size: #10 AWG
Wiring Option: Screw terminals for #24 to #10 AWG wire (A models)
Mounting: DIN Rail, Surface
Dimensions: 5" x 3.35" x 3.4"
Weight: 0.57 lb.
