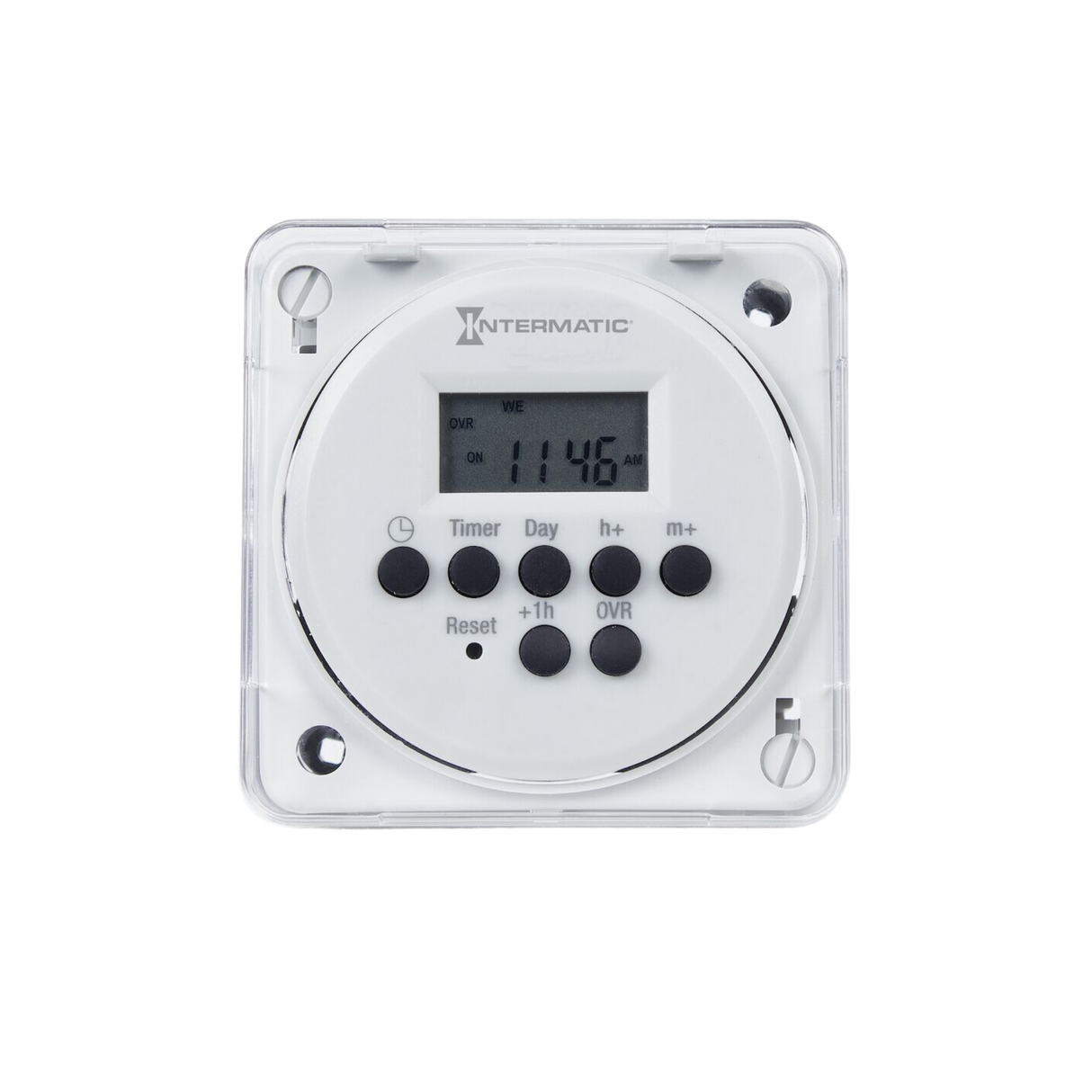

Intermatic FM1D20E-LV 12/24 VDC, 15 A SPDT 24-Hour or 7-Day Flush Mount Electronic Timer

The FM1D20 Series is a great value electronic time-based control solution for ventilating, heating, cooling, lighting or other electrical loads in commercial and industrial applications. These one-channel time switches are programmable for 24-hour or 7-day schedules with integrated cycle timer. The FM1D20 Series is intended for either panel, surface, flush or DIN rail mounting. Flush and surface/DIN rail (A & E models) are completely enclosed in a plastic housing and include a terminal cover, dust cover and subbase for installation and hard wiring.

Features:

24-Hour or 7-day applications.
20 Setpoint programs.
Easy to program.
Manual override with status indication.
Self-recharging battery with backup protection up to 2500-hours.
LCD display.
A & E models come with clear dust cover.
Cycle timer function.

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: FM1D20E-LV
Product Type: Electronic Timer
Material: Noryl
Voltage Rating: 24 VAC, 12/24 VDC
Current Rating: 15 A
Voltage Selection Type: Voltage Specific
Operation Mode: 24 hour, 7-day, Cycle
General Purpose (NO) Voltage Rating: 15 A, 277 VAC
Electronic Ballast (NO) Voltage Rating: 4.9 A, 120 VAC
Magnetic Ballast (NO) Voltage Rating: 8 A, 277 VAC
General Purpose (NC) Voltage Rating: 15 A, 277 VAC
Magnetic Ballast (NC) Voltage Rating: 8 A, 120 VAC
Motor Load Ratings NO Ranges: 1/2 HP @ 120 VAC; 10 FLA, 60 LRA @ 250 VAC; 1 HP @ 250 VAC
Motor Load Ratings NC Ranges: 1/2 HP @ 120/240 VAC; 10 FLA, 60 LRA @ 250 VAC
Maximum Power Consumption: 1.4 W
No. of Circuit: 1
Operating Temperature Range: 5 to 131 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Switch Type: SPDT
Minimum Wire Size: #24 AWG
Maximum Wire Size: #10 AWG
Wiring Option: Spade terminals for #24 to #10 AWG wire (A models)
Mounting: Flush
Dimensions: 3.4" x 3.85" x 2.7"
Weight: 0.38 lb.
