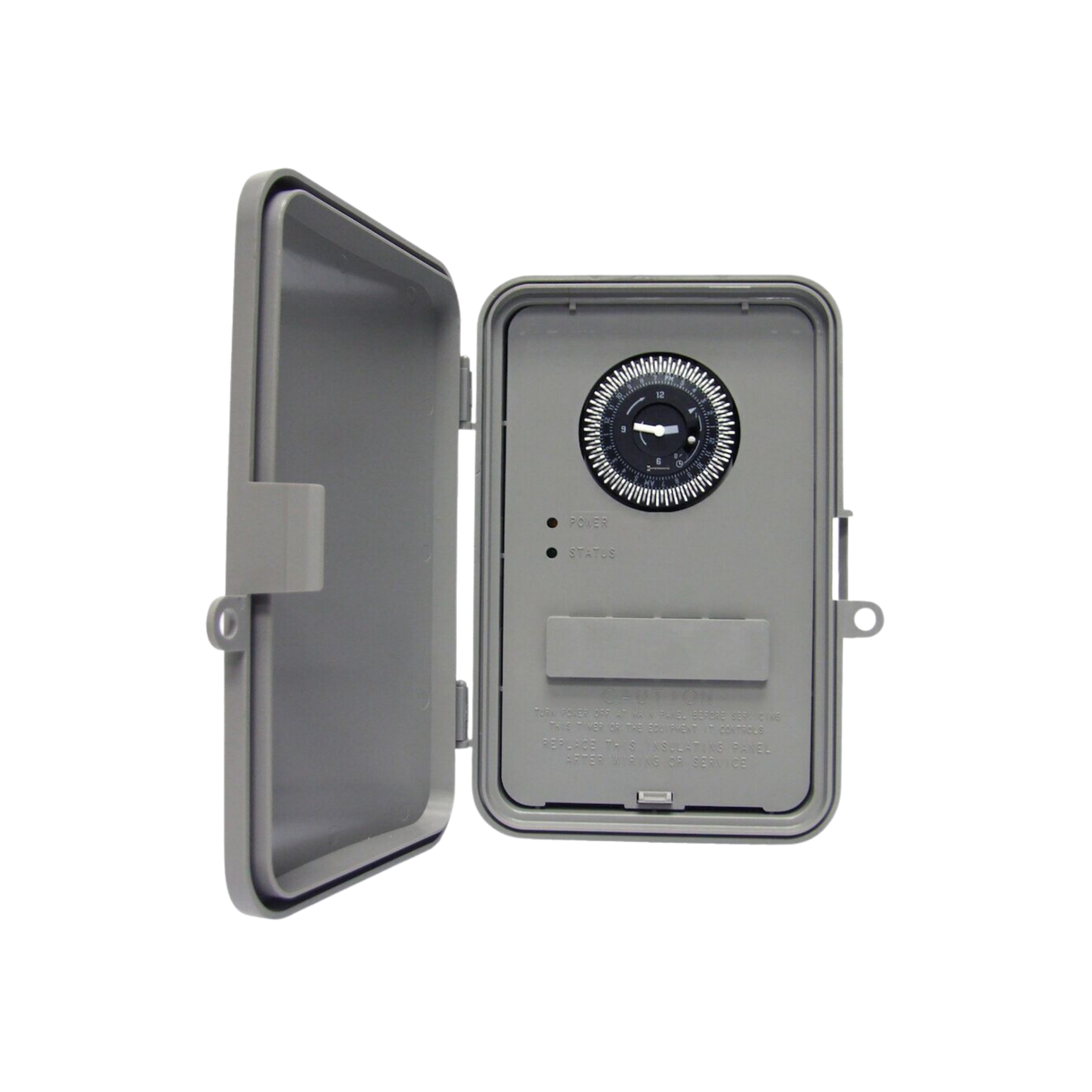

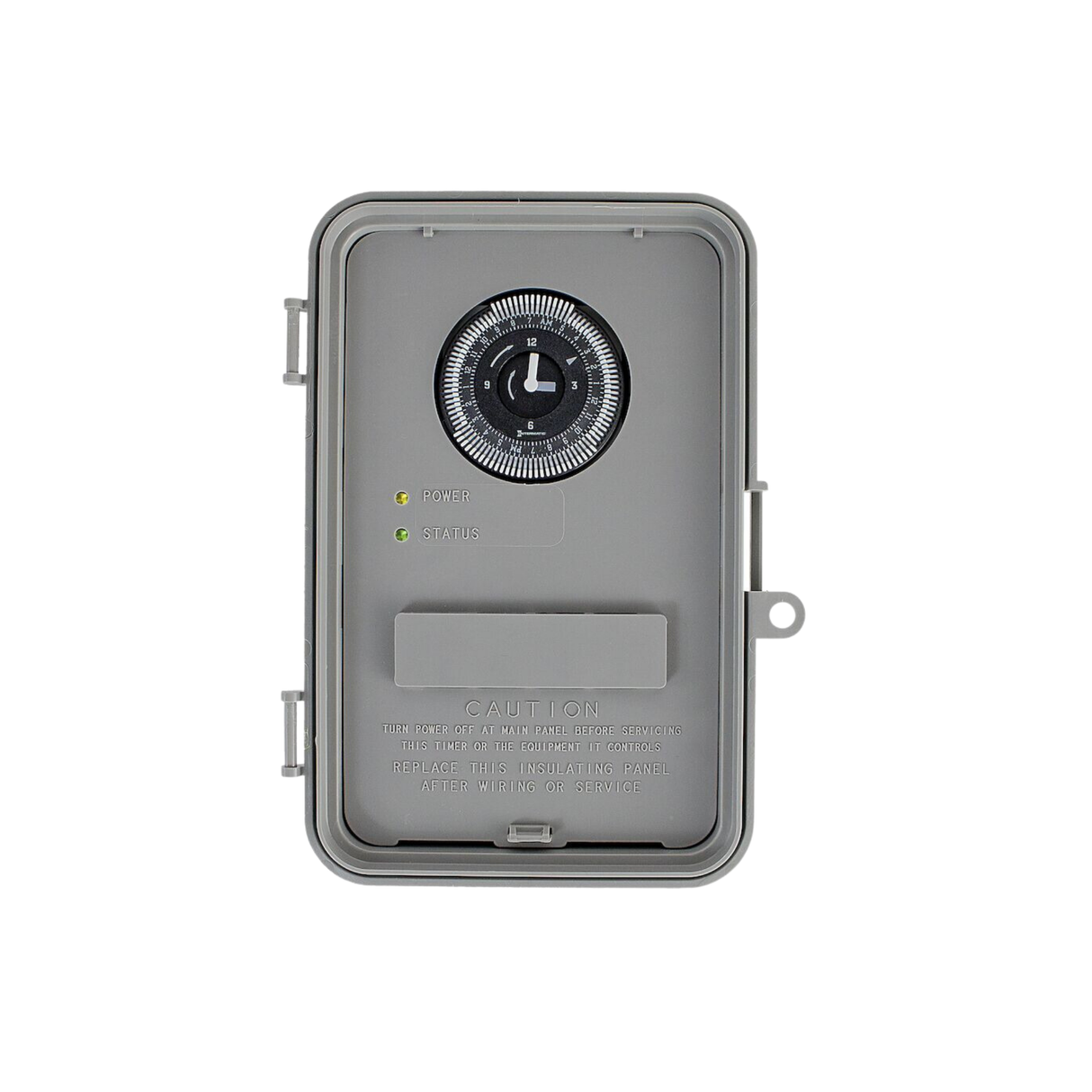

Intermatic GM40AV-W Auto Voltage 120-277 VAC 40 A DPDT Electromechanical General Purpose Time Control
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Intermatic GM40AV-W Auto Voltage 120-277 VAC 40 A DPDT Electromecha...
Description
Description
The GM40AV Time Switch is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
Features:
Autovoltage selection 120 VAC-277 VAC
Captive trippers - trippers cannot be lost
40 A rating
Self-recharging battery backup, "Q" models feature 72-hour carry-over
Power and status LED indicators
24-Hour or 7-day models available
Up to 48 ON/OFF operations per 24-hour period or 42 ON/OFF operations per week on "W" models
DPDT switching configuration standard (2 NO and 2 NC Contacts)
Manual three-way ON/OFF/AUTO override switch
Easy-to-read clock face
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: GM40AV-W
Product Type: Electromechanical General Purpose Time Control
Voltage Rating: Auto Voltage 120-277 VAC
Frequency Rating: 60 Hz
Current Rating: 40 A
Magnetic Ballast (NO) Load Range: 30 A, 120 VAC; 20 A, 277 VAC
Pilot Duty (NO) Load Rating: 300 VA, 120-240 VAC
Pilot Duty (NO) Load Rating Range: 300 VA, 120 VAC, 300 VA, 208 VAC, 300 VA, 240 VAC
Resistive (NO) Load Rating: 40 A, 120-277 VAC
Tungsten (NO) Load Rating: 15 A, 120 VAC
Motor Load Ratings (NO) Load Rating: 1 HP, 16 FLA, 90 LRA @120 VAC; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC
Magnetic Ballast (NC) Load Rating: 10 A, 277 VAC
Resistive (NC) Load Rating: 30 A, 120-277 VAC
Tungsten (NC) Load Rating: 2 A, 120 VAC
Motor Load Ratings (NC) Load Rating: 1 HP, 12 FLA, 30 LRA @ 120 VAC; 2 HP, 10 FLA, 30 LRA @ 240 VAC
Voltage Selection Type: Auto Voltage
Operating Temperature: -40 to 131 Degrees F
Operation Mode: 24 Hour
Maximum Wire Size: #8 AWG
Switch Type: DPDT
Wiring Option: Screw Box Lug
Enclosure: Indoor/Outdoor Type 3R Plastic
Dimensions: 7.3" x 9.6" x 3.3"
Weight: 6.0 lb.
