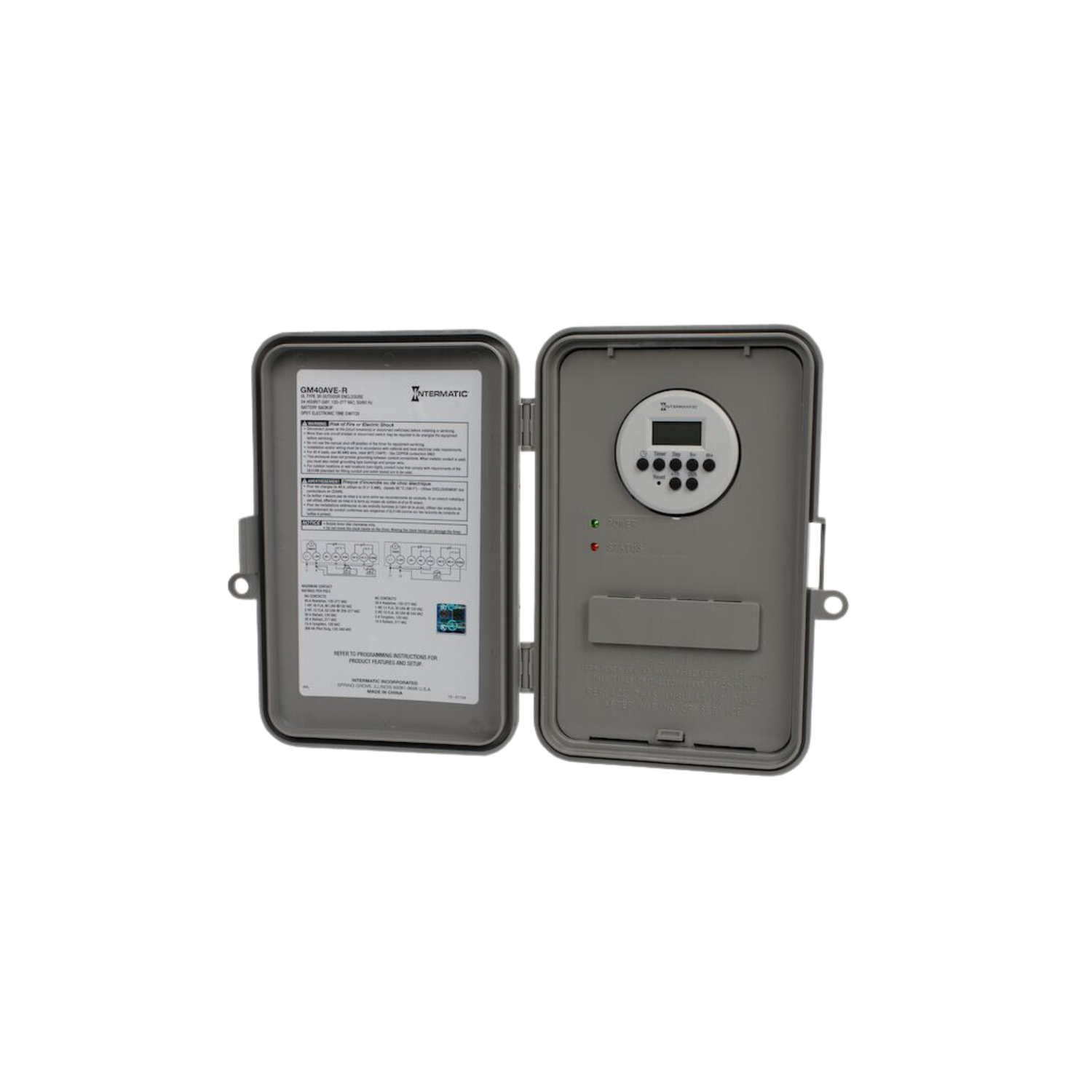

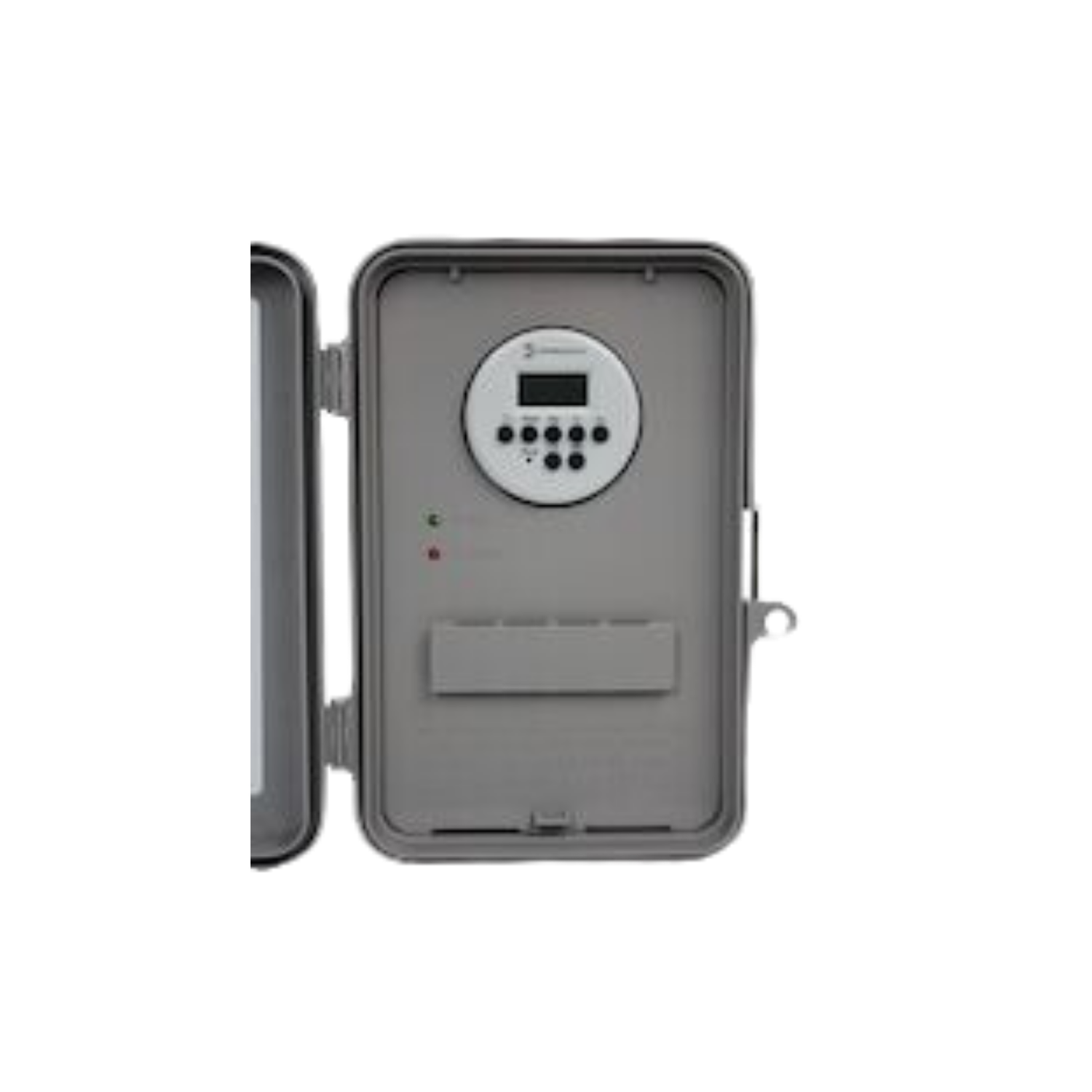

The GM40AVE-RD89 is a universal, electronic time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
Features:
Heavy-duty 40 A contact rating
Automatically adjusts voltages between 120-277 VAC
24-Hour/7-day flexible scheduling
Power and status LED indicators
DPDT switching configuration (2 NO and 2 NC Contacts)
14 Setpoint programs
Manual override with load status indication
Self-recharging battery with back up protection up to 2500 hours
Type 3R outdoor enclosure with lockable hasp
To-the-minute accuracy
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: GM40AVE-RD89
Product Type: Electronic Time Control
Color: White
Voltage Rating: 120-277 V
Frequency Rating: 50/60 Hz
Current Rating: 40 A
Motor Load Rating Range (NO): 1 HP, 16 FLA, 96 LRA @ 120 VAC, 50/60 Hz; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC, 50/60 Hz
Motor Load Rating Range (NC): 1 HP, 12 FLA, 30 LRA @ 120 VAC, 50/60 Hz; 2 HP, 10 FLA, 30 LRA @ 240 VAC, 50/60 Hz
Resistive Load Rating Range (NO): 40 A, 120-277 VAC, 50/60 Hz
Resistive Load Rating Range (NC): 30 A, 120-277 VAC, 50/60 Hz
Electronic Ballast Load Rating Range (NO): 30 A, 120 VAC, 50/60 Hz; 20 A, 277 VAC, 50/60 Hz
Electronic Ballast Load Rating Range (NC): 10 A, 277 VAC, 50/60 Hz
Tungsten Load Rating Range (NO): 15 A, 120 VAC, 50/60 Hz
Tungsten Load Rating Range (NC): 2 A, 120 VAC, 50/60 Hz
Operation Mode: 24-Hour, 7-Day
Operating Temperature Range: 5 to 131 Degrees F
Switch Type: DPDT
Maximum Wire Size: #8 AWG
Wiring Option: Screw Box Lug
Enclosure: Outdoor Type 3R Plastic
Dimensions: 9.5" x 7" x 3.25"
Weight: 3.0 lb.
