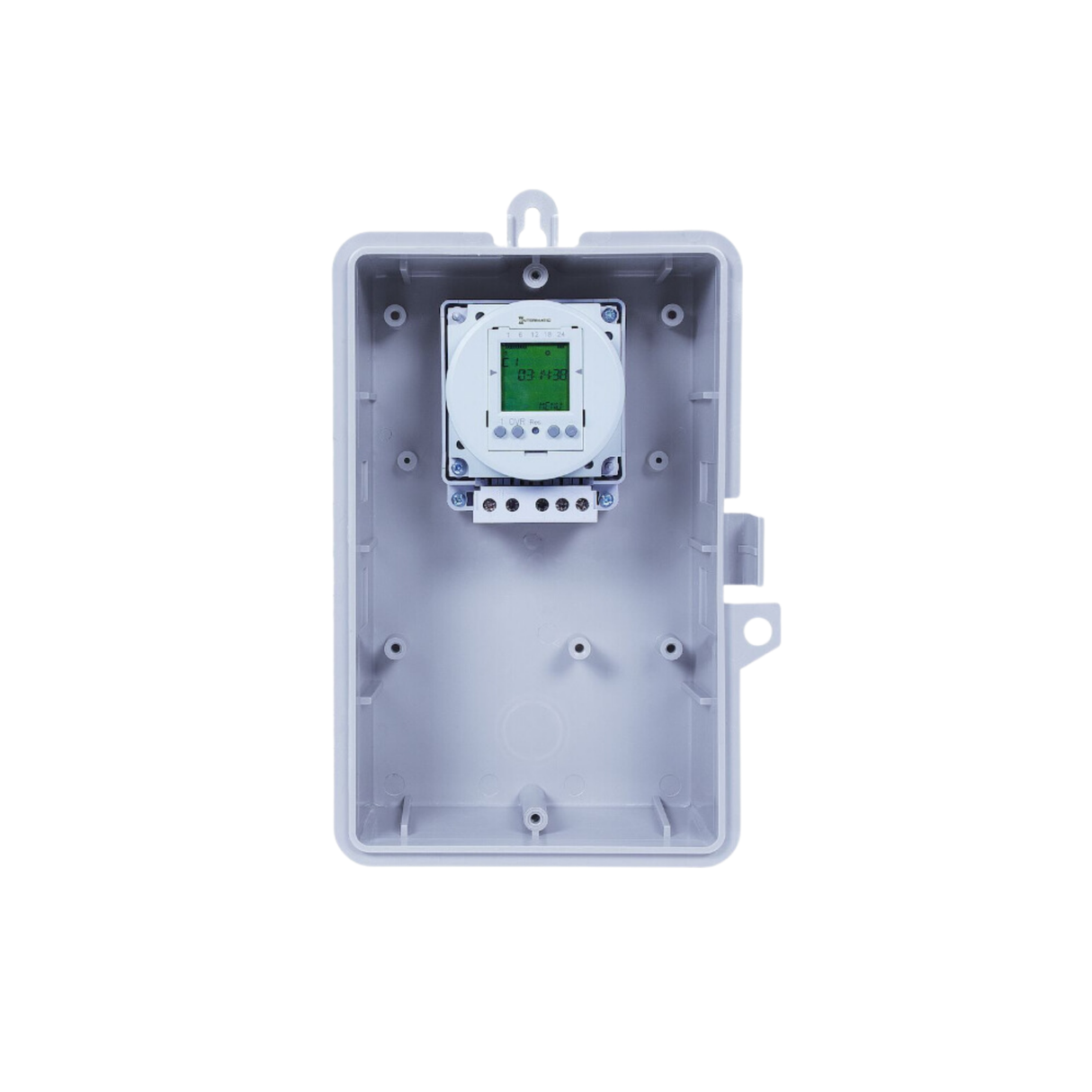

Intermatic GMXFM1D20-I-AV 120 V 15 A 24 hour, 7-day SPDT Electromechanical Time Control

Universal GMXFM Electronic Series Time Controls are a low-cost alternative for applications that do not require more than 15 A. The timer is mounted in a UL Type 1 indoor.

Features:

120-277 VAC.
24-hour or 7-day applications.
21 set-point programs.
Self-recharging battery with 2500-hours back-up.
Cycle timer function.
Manual Override.
Type 1 enclosure, plastic.
16 A load control.

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: GMXFM1D20-I-AV
Product Type: Electromechanical Time Control
Voltage Rating: 120 V
Current Rating: 15 A
Magnetic Ballast (NC) Load Range: 8 A, 277 VAC
Magnetic Ballast (NO) Load Range: 8 A, 277 VAC
Pilot Duty (NO) Load Rating: B300
Pilot Duty (NO) Load Rating Range: B300
Resistive (NO) Load Rating: 15 A, 277 VAC
Tungsten (NO) Load Rating: 1000 W, 120/240 VAC
Motor Load Ratings (NO) Load Rating: 1/2 HP, 120 VAC; 1 HP, 240 VAC
Magnetic Ballast (NC) Load Rating: 8 A, 120 VAC
Magnetic Ballast (NO) Load Rating: 8 A, 277 VAC
Resistive (NC) Load Rating: 15 A, 277 VAC
Tungsten (NO) Load Range: 8 A, 277 VAC
Motor Load Ratings (NO) Load Rating: 1/2 HP, 120 VAC; 1 HP, 240 VAC
Voltage Selection Type: Voltage Specific
Operating Temperature: 5 to 131 Degrees F
Operation Mode: 24 hour, 7-day
Maximum Wire Size: #10 AWG
Switch Type: SPDT
Wiring Option: Screw box lug
Enclosure: Indoor type 1 plastic
Dimensions: 11.2" x 8.7" x 4.25"
Weight: 1.64 lb.
