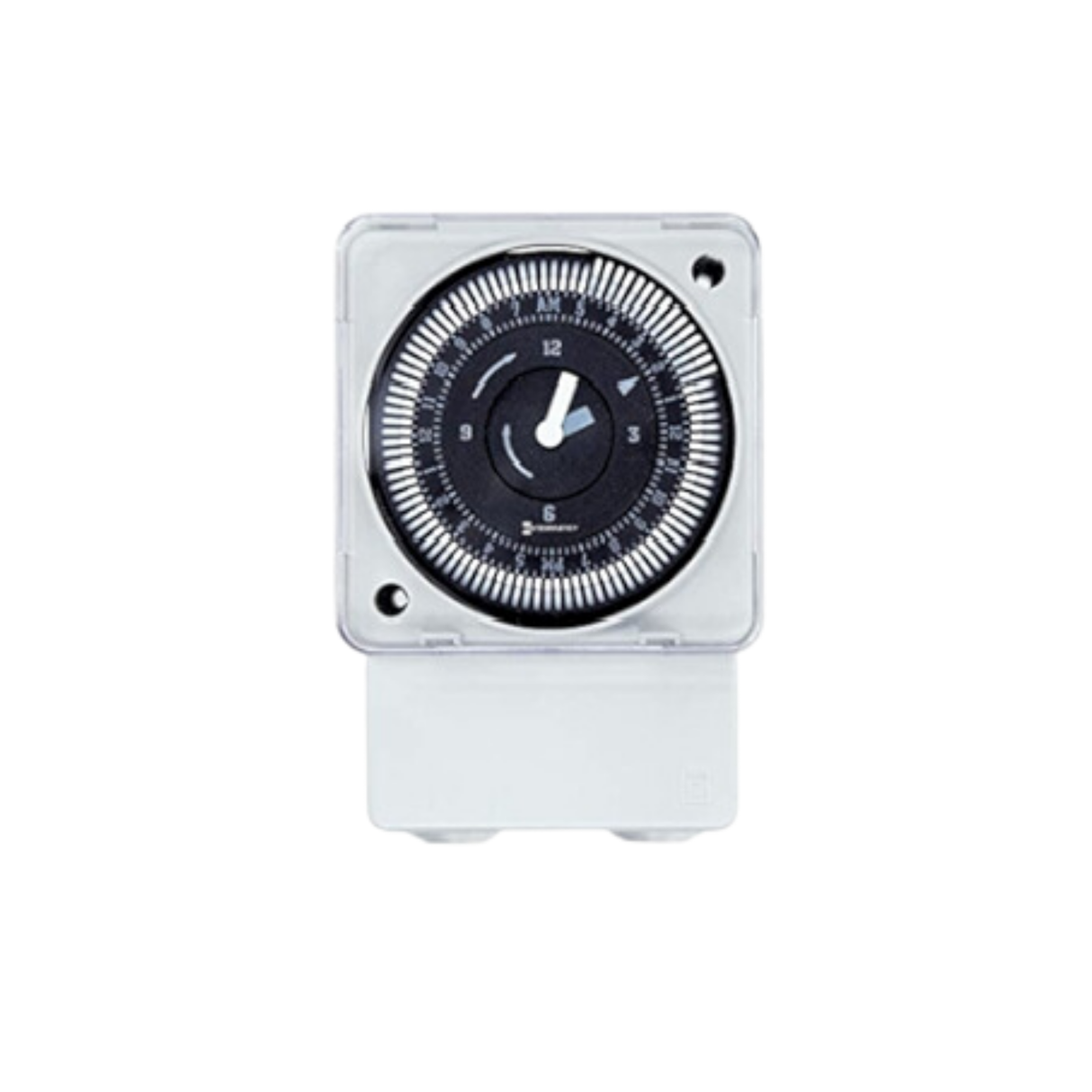

Intermatic MIL72AQTUZH-120 120 VAC 50/60 Hz 21 A SPDT Electromechanical

The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.

Features:

21 A SPDT switch
Synchronous drive or quartz drive (Q Models) with self-recharging battery backup
72-hour carry-over battery backup on Q models
Captive trippers with 15-minute intervals
Available with or without override
True clock face, easy-to-set
Surface/DIN rail or flush mount
Clear plastic dust cover
Compact size

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: MIL72AQTUZH-120
Product Type: Electromechanical
Voltage Rating: 120 VAC
Frequency Rating: 50/60 Hz
Current Rating: 21 A
Minimum Cycle Time: 15 Minute
Maximum Cycle Time: 24 Hour
Operating Humidity: 0 to 95%, Non-condensing
Motor Load Ratings Ranges: 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz
Tungsten (NO) Loading Rating: 1350 W, 120 VAC
Resistive Loading Rating: 21 A, 250 VAC
Mounting Options: DIN, Surface
Wiring Option: Screw terminal accepts up to #12 AWG wire
Operating Temperature: -4 to 131 Degrees F
Maximum Wire Size: #12 AWG
Switch Type: SPDT
Dimensions: 3.3" x 5.0" x 3.45"
Weight: 2.0 lb.
