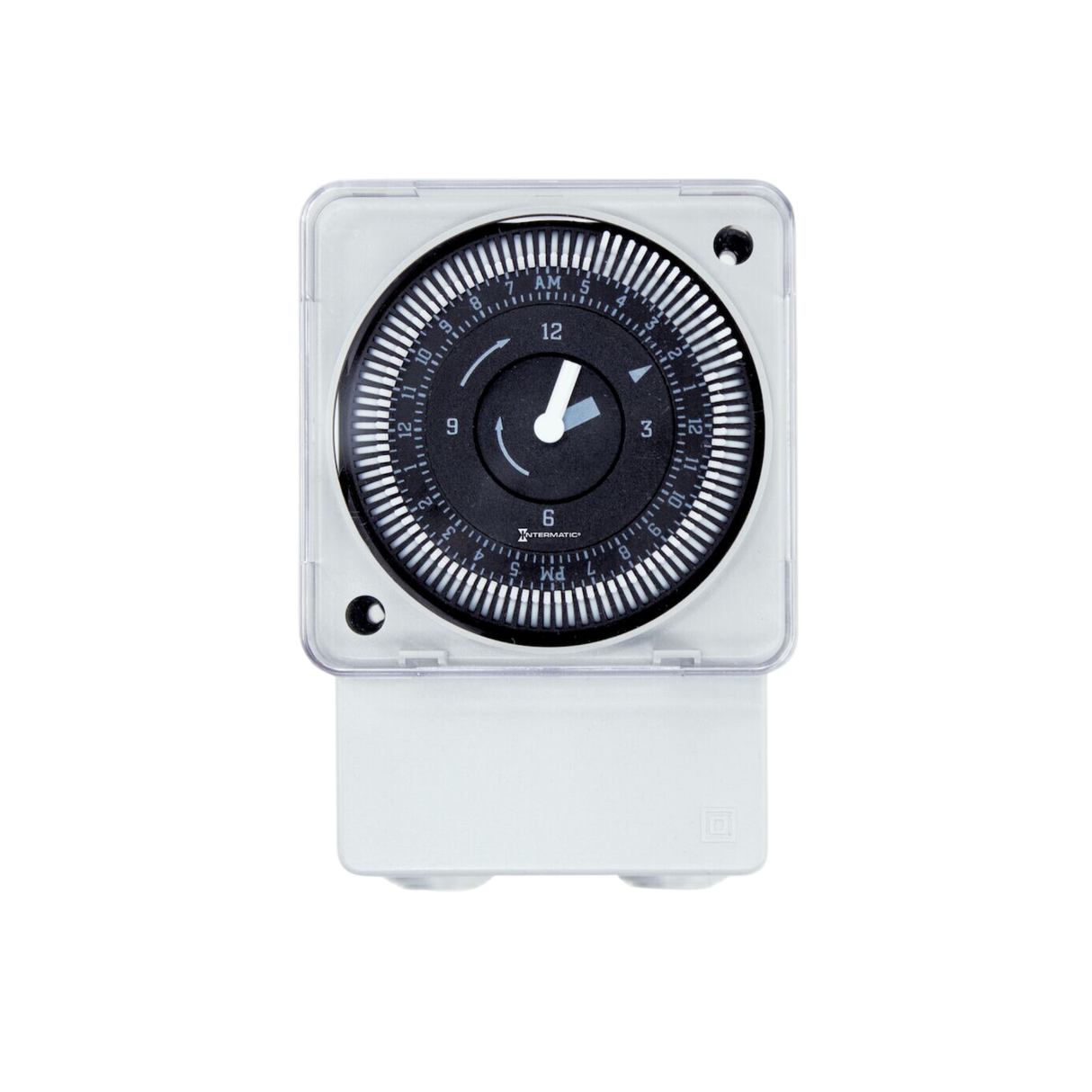

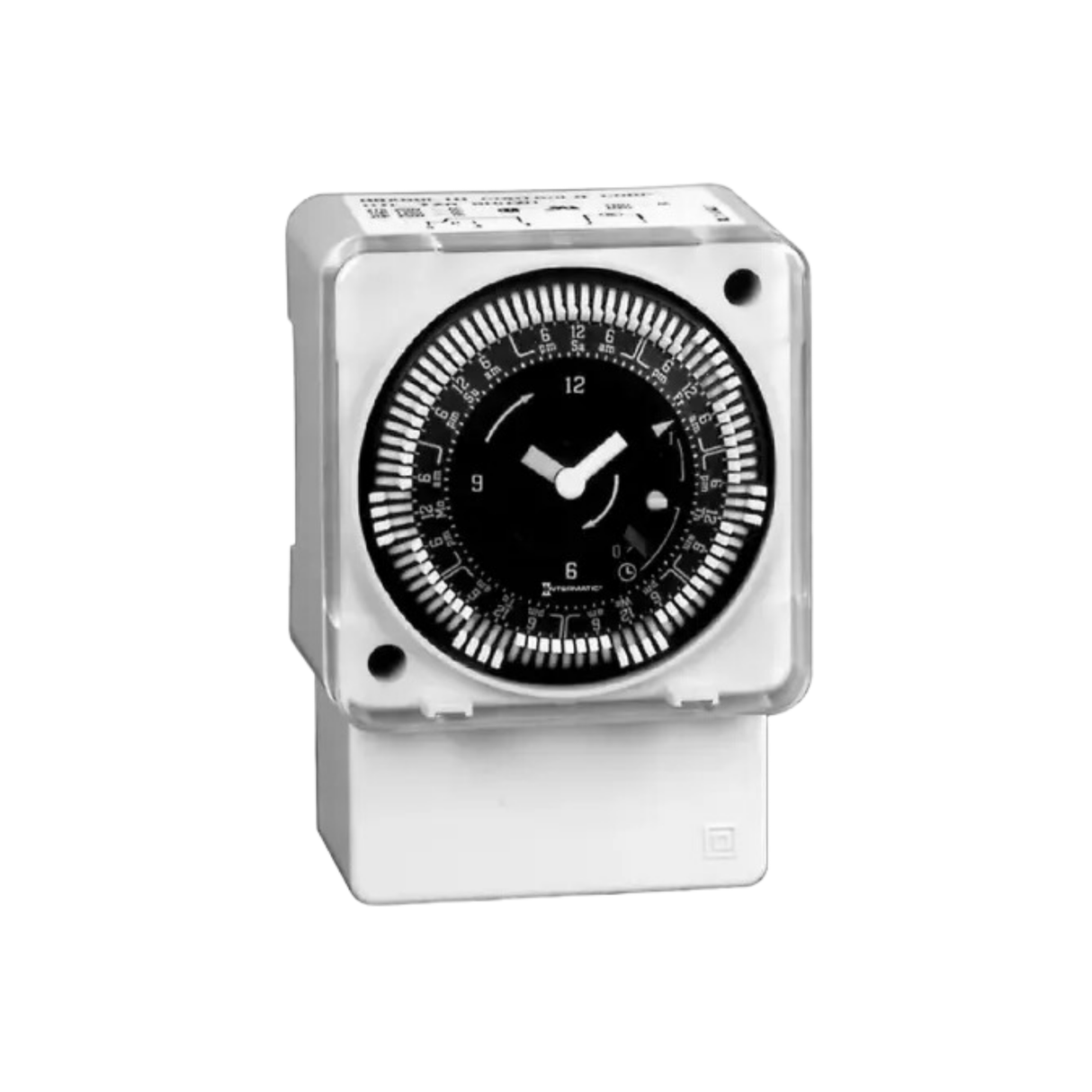

Intermatic MIL72ASTUZ-120 120 V 24-Hour Surface/DIN Mount Timer Module
Description
Description
The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.
Features:
21 A SPDT switch
Synchronous drive or quartz drive (Q Models) with self-recharging battery backup
72-hour carry-over battery backup on Q models
Captive trippers with 15-minute intervals
Available with or without override
True clock face, easy-to-set
Surface/DIN rail or flush mount
Clear plastic dust cover
Compact size
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: FF60MC
Product Type: Timer Module
Voltage Rating: 120 V
Frequency Rating: 60 Hz
Current Rating: 15 A
Tungsten (NO) Load Rating: 1350 W, 120 VAC
Motor Load Ratings Ranges: 1 HP, 120 VAC; 2 HP, 250 VAC
Resistive Load Rating: 21 A, 250 VAC
Minimum Cycle Time: 15 Minutes
Maximum Cycle Time: 24 Hours
Shortest Switching Time (ON/OFF): 15 Minutes
Operating Temperature Range: -40 to 185 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Wiring Option: Screw terminal accepts up to #12 AWG wire
Mounting: DIN Rail, Surface
Dimensions: 3.4" x 4.9" x 3.35"
Weight: 2.0 lb.
