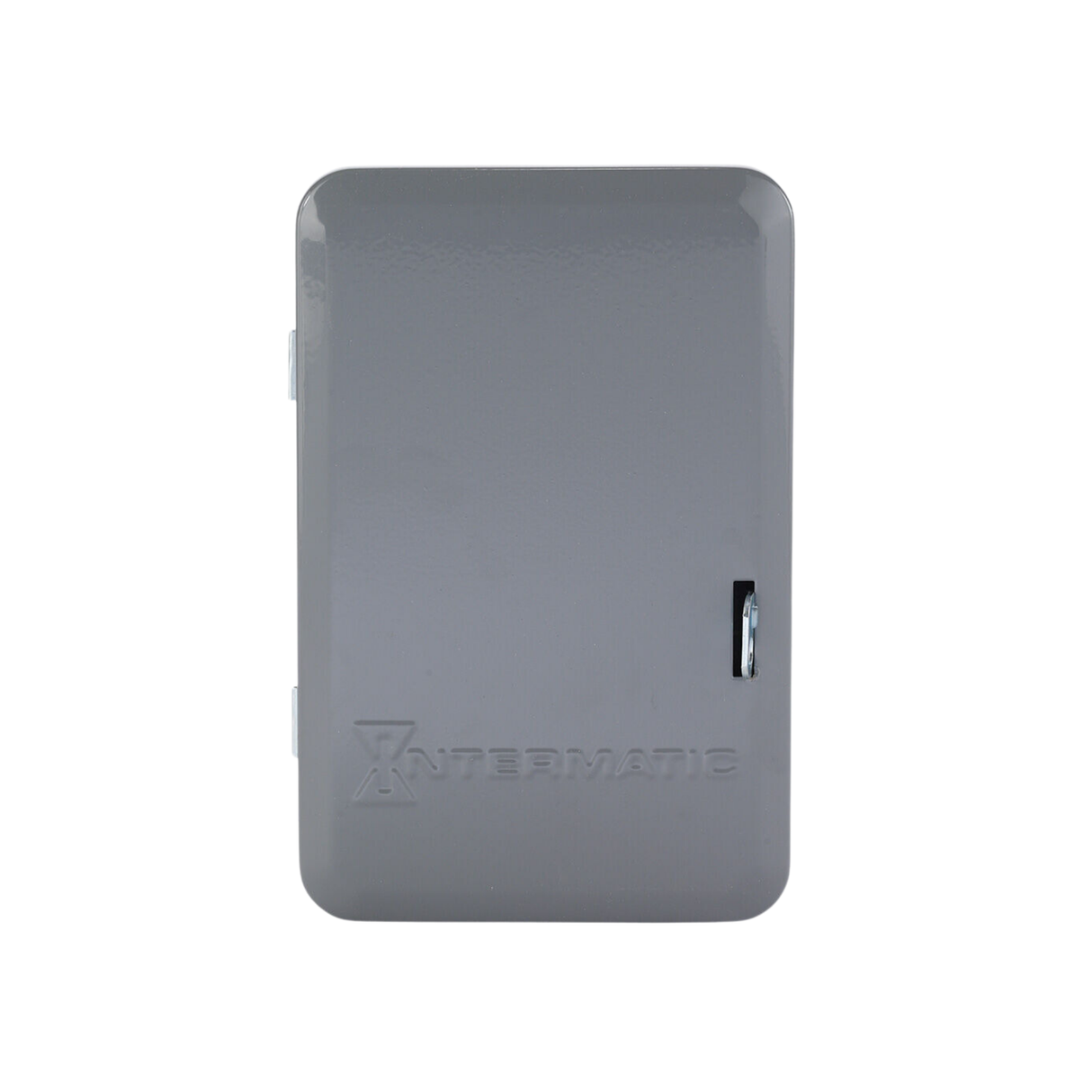

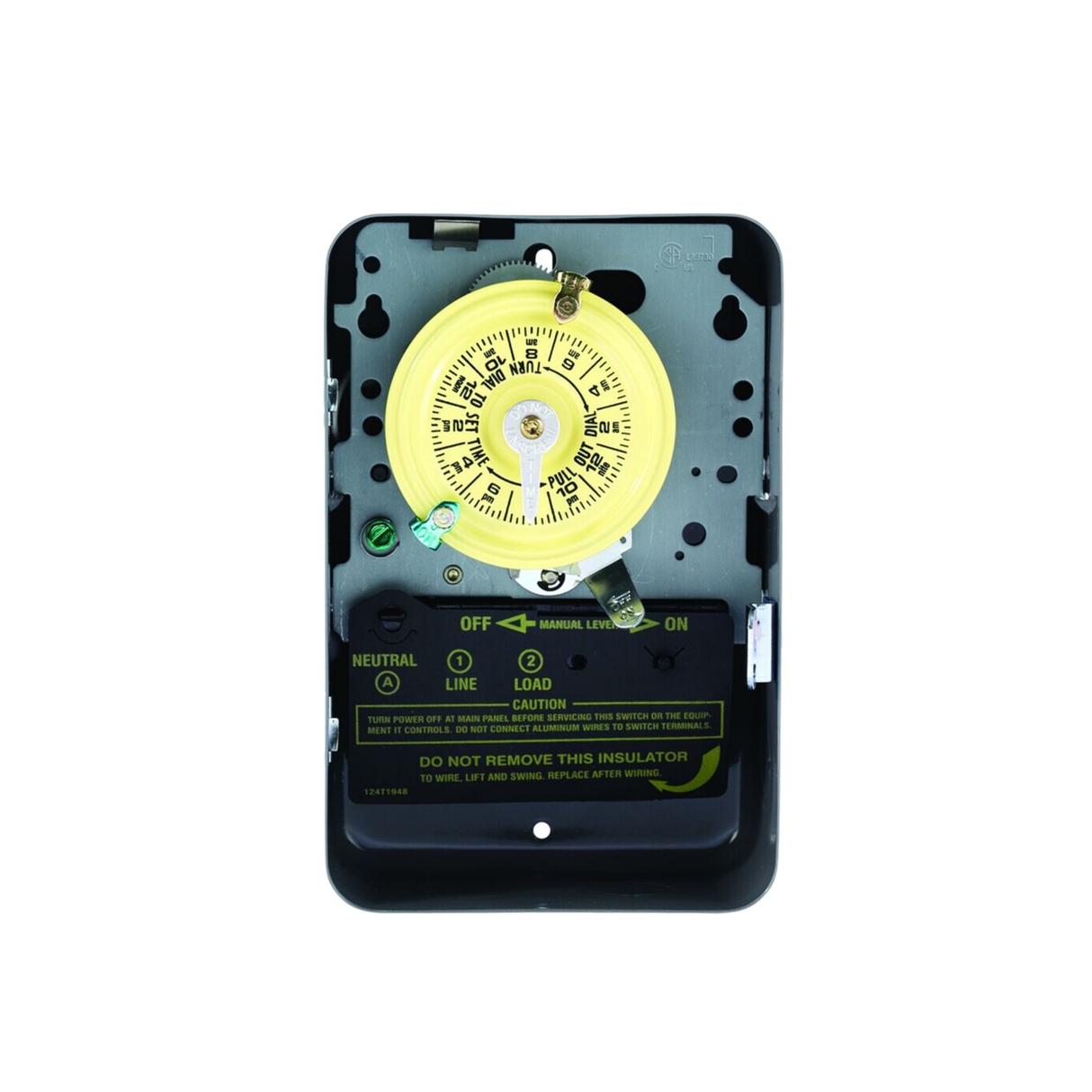

Intermatic T101 120 VAC 40 A 24-Hour SPST 1-Hour Mechanical Time Switch
Intermatic T101 120 VAC 40 A 24-Hour SPST 1-Hour Mechanical Time Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Intermatic T101 120 VAC 40 A 24-Hour SPST 1-Hour Mechanical Time Sw...
Description
Description
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features:
Direct 24-hour control of most loads
Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
Manual override
One ON and one OFF tripper included
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: T101
Product Type: Mechanical Time Switch
Voltage Rating: 120 VAC
Frequency Rating: 60 Hz
Current Rating: 40 A
No. of Circuit: 1
Operation Mode: 24 Hours
Tungsten (NO) Load Rating: 40 A, 120 VAC, 60 Hz
Inductive (NO) Load Ratings: 40 A, 120 VAC, 60 Hz
Motor Load Rating: 2 HP, 24 FLA @ 120 VAC, 60 Hz
Resistive Load Rating: 40 A, 120 VAC, 60 Hz
Electronic Ballast Load Rating: 16 A, 120 VAC
Operating Temperature Range: -40 to 130 Degrees F
Operating Humidity: 0-95% Relative Humidity, Non-condensing
Switch Type: SPST
Minimum Wire Size: #14 AWG
Maximum Wire Size: #8 AWG
Wiring Option: Terminals
Enclosure: Indoor Type 1 Metal
Dimensions: 5.4" x 8.15" x 3.35"
Weight: 2.69 lb.
