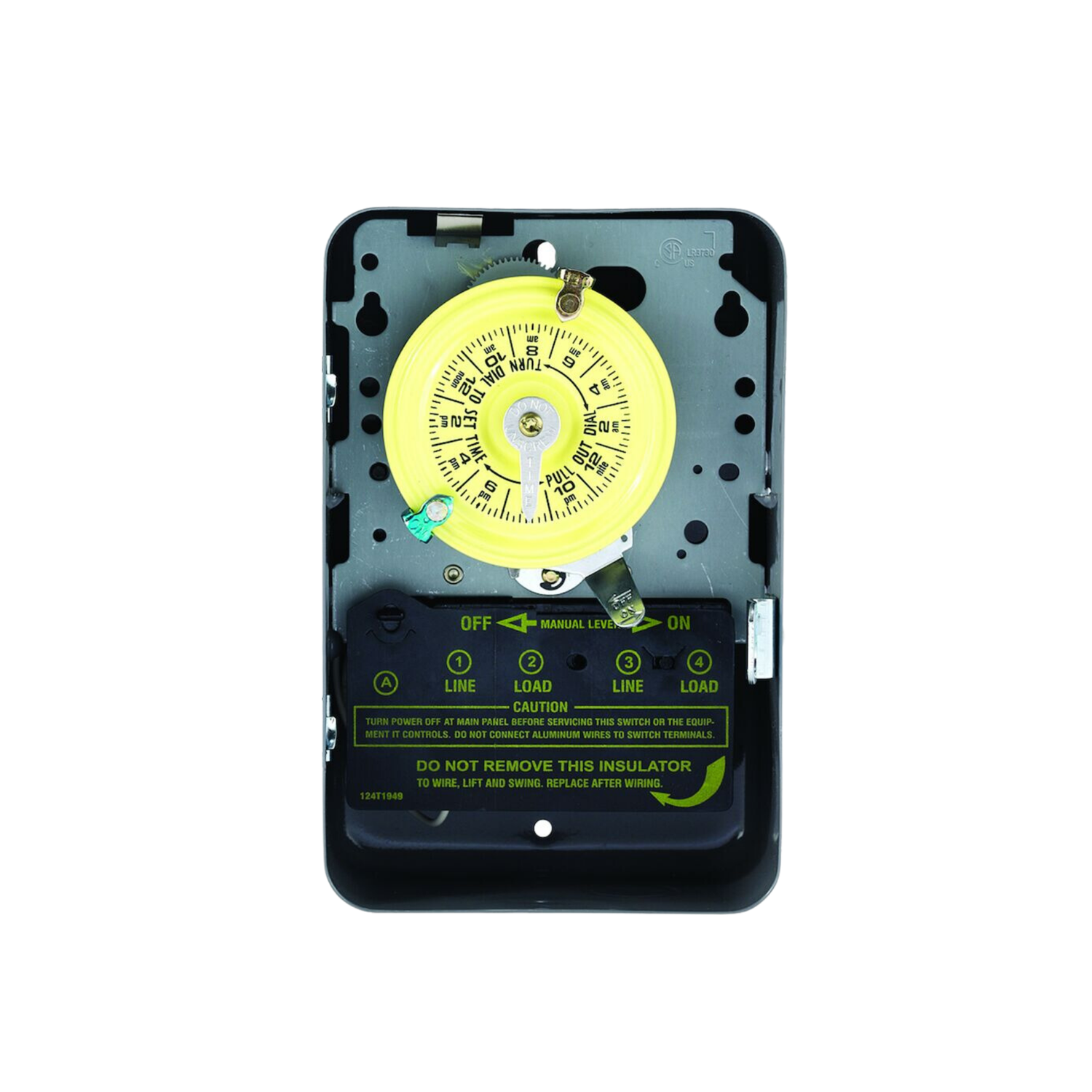

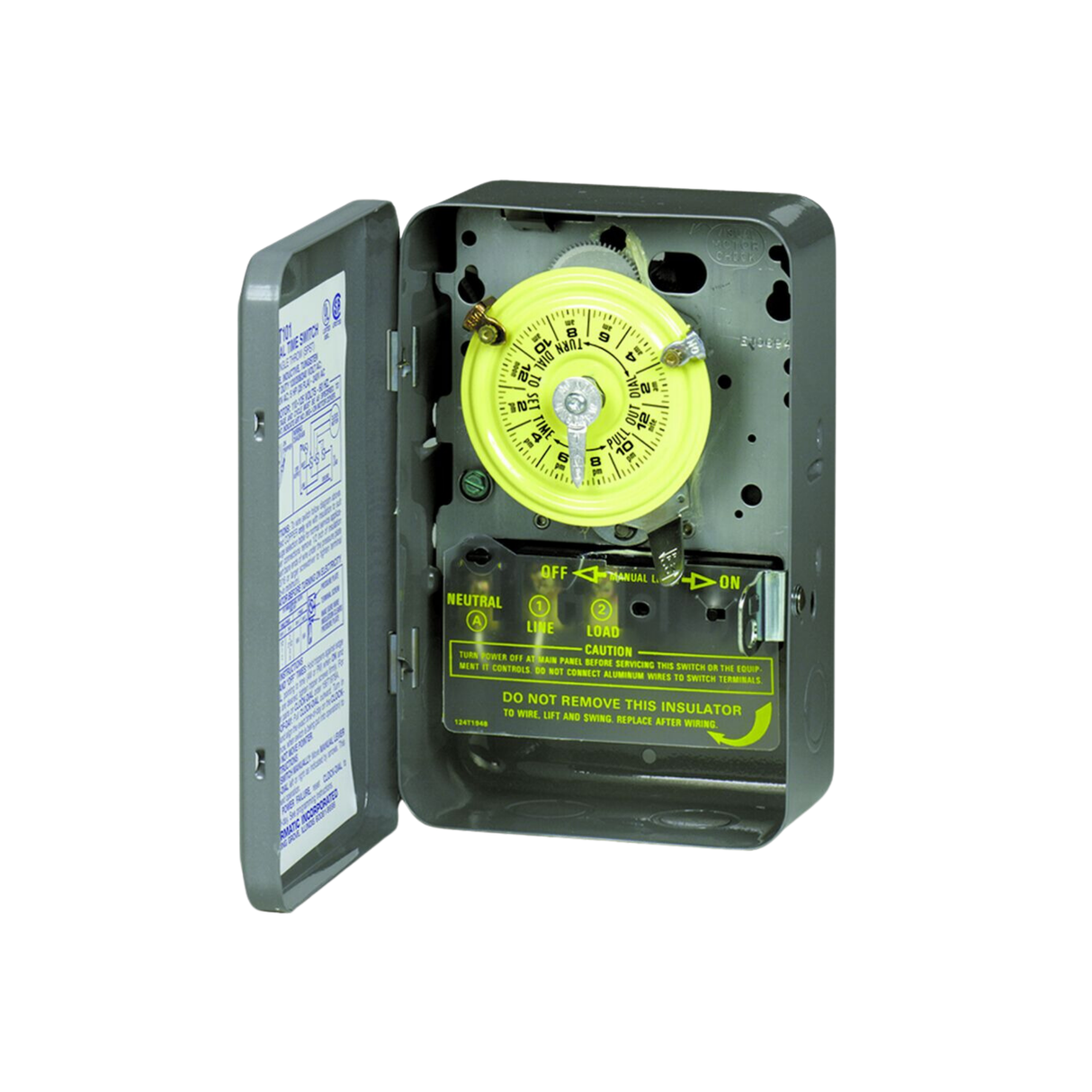

Intermatic T103 120 V 40 A DPST 24-Hour Mechanical Time Switch
Description
Description
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features:
Highest motor load ratings in the industry
12 ON/OFF operations per day
One ON and one OFF tripper included
Can be installed in most Intermatic enclosures
Available with pool heater protection
Teeter-type terminals for multiple load connections
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: T103
Product Type: Mechanical Time Switch
Color: White
Voltage Rating: 120 V
Frequency Rating: 60 Hz
Current Rating: 40 A
Motor Load Rating Range: 2 HP, 24 FLA @ 120 VAC, 60 Hz
Resistive Load Rating Range: 40 A, 120 VAC, 60 Hz
Pilot Duty Load Rating Range: 1000 VA, 120 VAC, 60 Hz
Inductive Load Rating Range: 40 A, 120 VAC, 60 Hz
Electronic Ballast Load Rating Range: 16 A, 120-277 VAC
Tungsten (NO) Load Rating: 40 A, 120 VAC, 60 Hz
Operating Temperature Range: -40 to 130 Degrees F
Switch Type: DPST
Minimum Wire Size: #14 AWG
Maximum Wire Size: #8 AWG
Wiring Option: Terminals
Dimensions: 5.55" x 8.25" x 3.2"
Weight: 2.71 lb.
