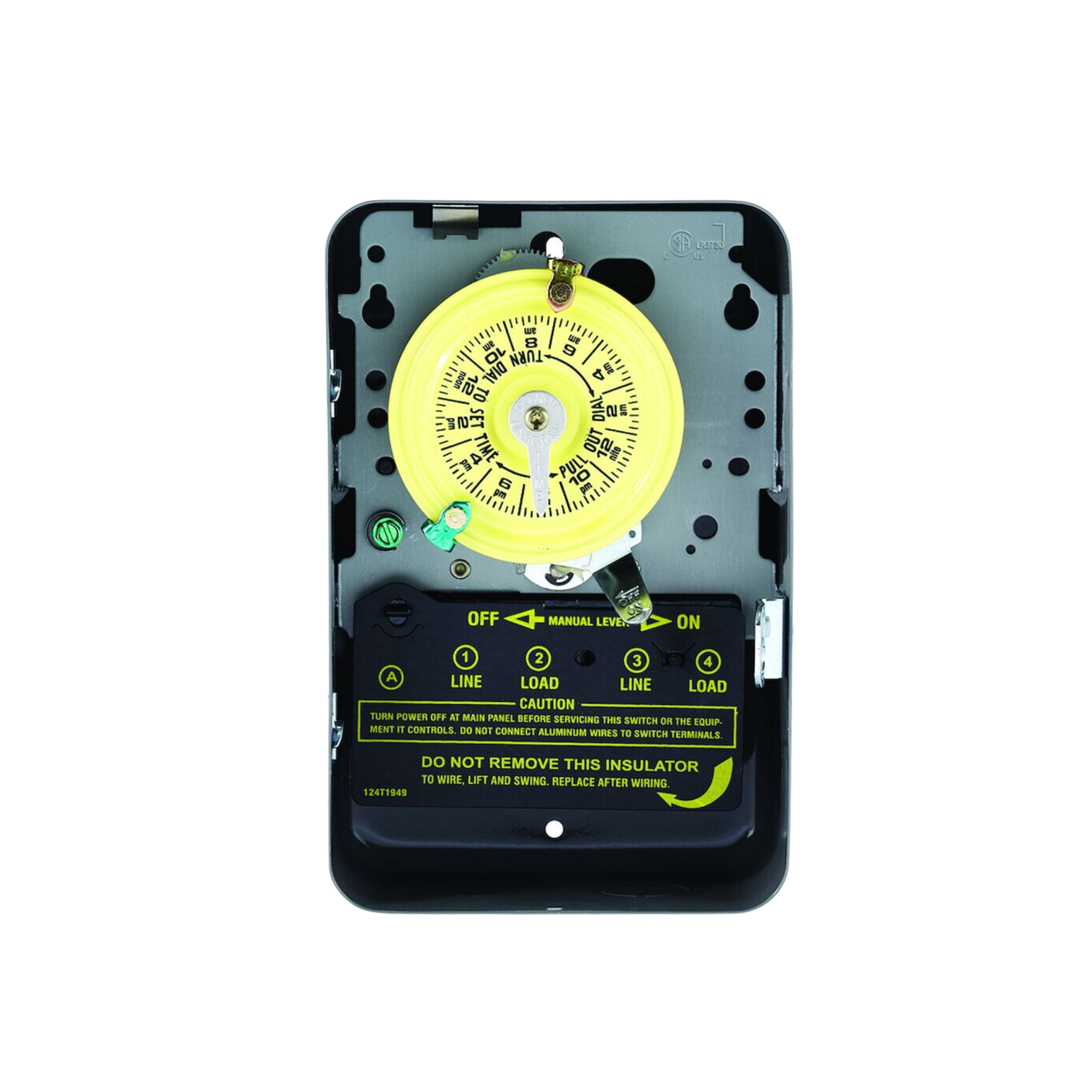

Intermatic T104 208-277 V 40 A DPST 24-Hour Mechanical Time Switch
Intermatic T104 208-277 V 40 A DPST 24-Hour Mechanical Time Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Intermatic T104 208-277 V 40 A DPST 24-Hour Mechanical Time Switch
Description
Description
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Features:
Highest motor load ratings in the industry
12 ON/OFF operations per day
One ON and one OFF tripper included
Can be installed in most Intermatic enclosures
Available with pool heater protection
Teeter-type terminals for multiple load connections
Specifications:
Manufacturer: Intermatic
Manufacturer Part Number: T104
Product Type: Mechanical Time Switch
Color: White
Voltage Rating: 208-277 V
Frequency Rating: 60 Hz
Current Rating: 40 A
Motor Load Rating Range: 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Load Rating Range: 40 A, 120-480 VAC, 60 Hz
Pilot Duty Load Rating Range: 1000 VA, 120-277 VAC, 60 Hz
Inductive Load Rating Range: 40 A, 120-277 VAC, 60 Hz
Electronic Ballast Load Rating Range: 16 A, 120-277 VAC
Tungsten Load Rating: 40 A, 120-277 VAC, 60 Hz
Operation Mode: 24-Hour
Operating Temperature Range: -40 to 130 Degrees F
Switch Type: DPST
Minimum Wire Size: #14 AWG
Maximum Wire Size: #8 AWG
Wiring Option: Terminals

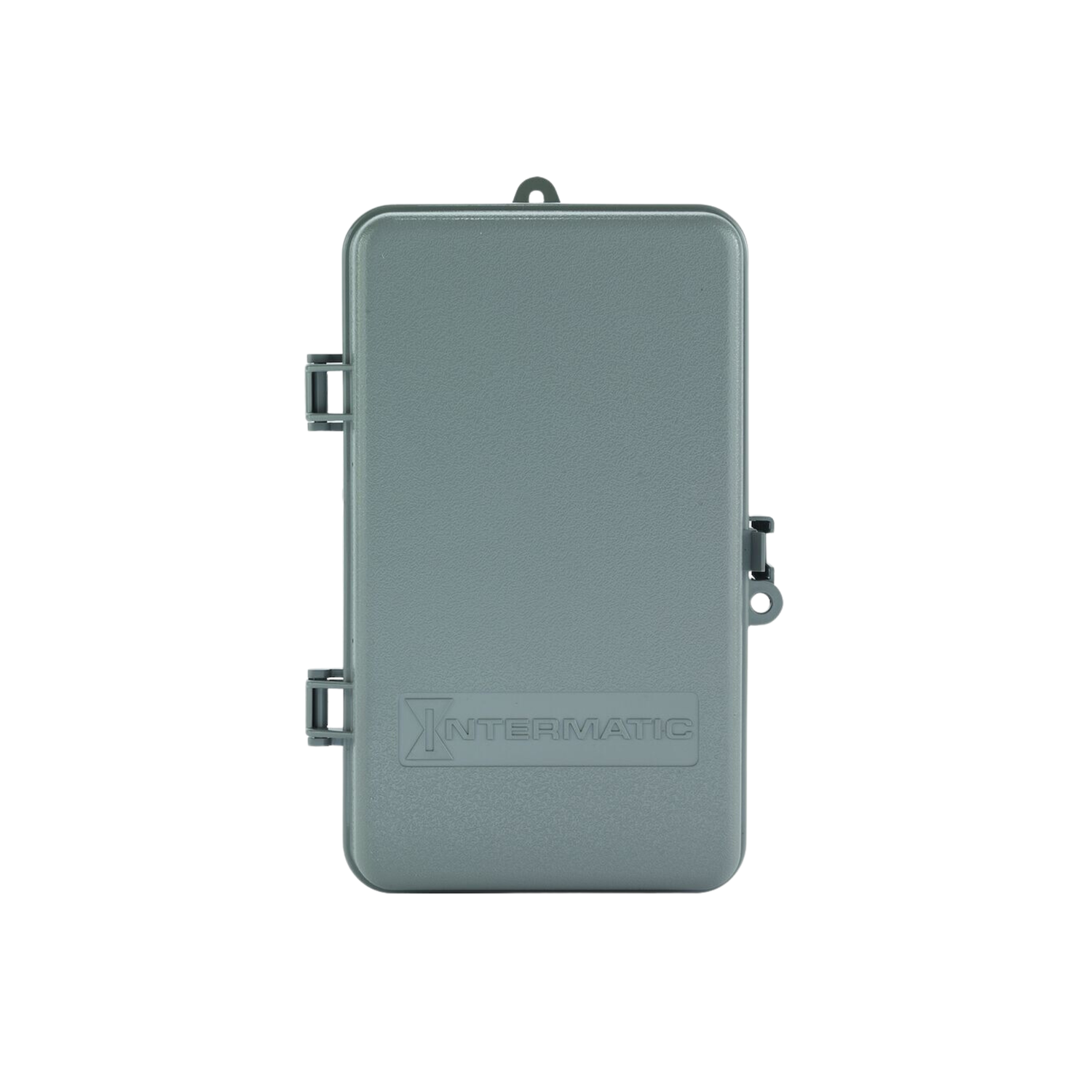

Enclosure: Indoor Type 1 Metal
Dimensions: 5.55" x 8.2" x 3.25"
Weight: 2.79 lb.
