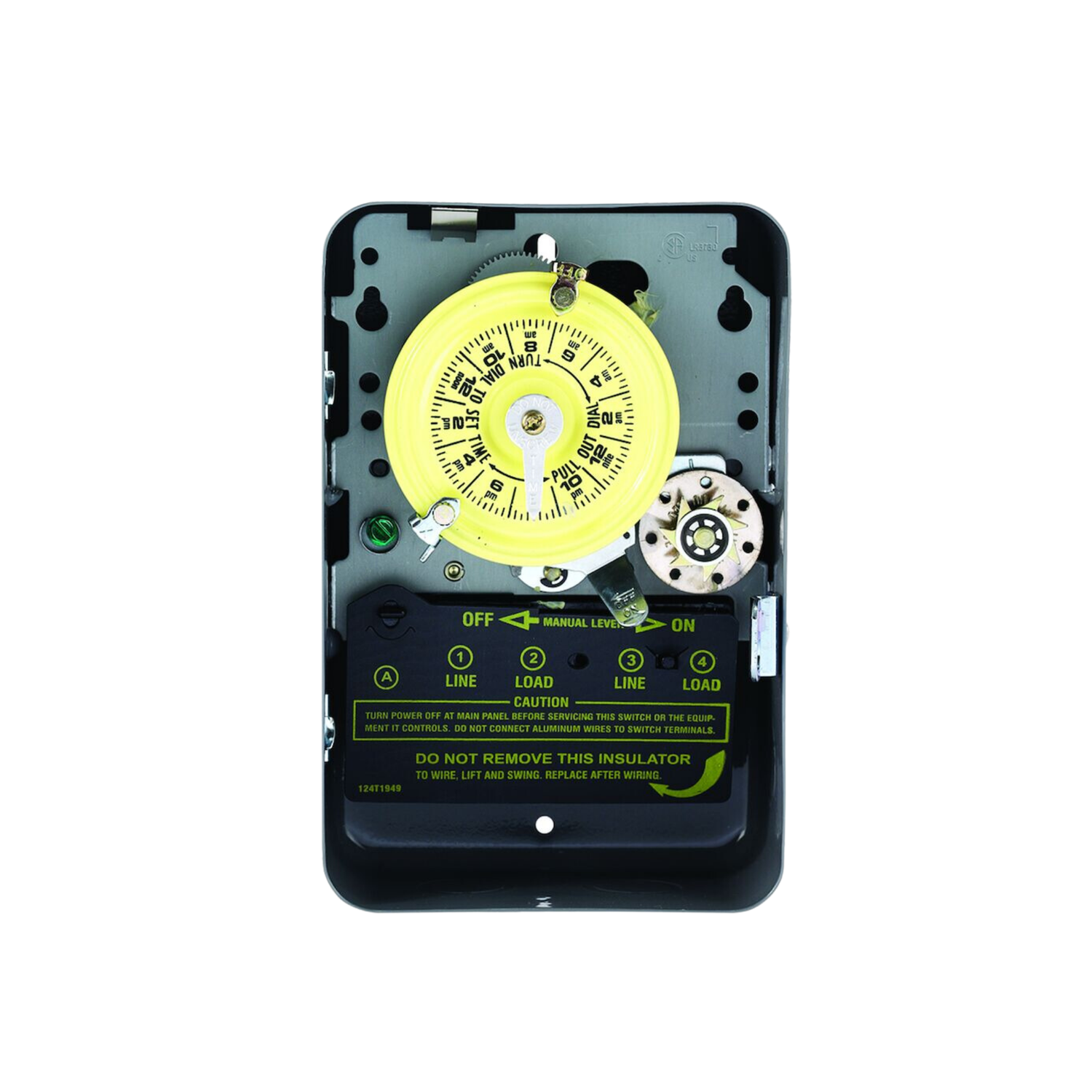

Intermatic T173 120 VAC 60 Hz 24-Hour DPST Mechanical Time Switch with Skip-a-Day

Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

Features:

Controls loads up to 40 A per pole
Direct 24-hour control of most loads
Up to 10 ON/OFF operations each day
Minimum ON/OFF times of one hour
Manual override
One ON and one OFF tripper and three day-skipper screws included

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: T173
Product Type: Mechanical Time Switch
Voltage Rating: 120 VAC
Frequency Rating: 60 Hz
Motor Load Ratings Range: 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Load Rating Range: 40 A, 120-277 VAC, 60 Hz
Tungsten Load Rating: 40 A, 120-277 VAC, 60 Hz
Pilot Duty Load Ratings Range: 1000 VA, 120-277 VAC, 60 Hz
Inductive Load Ratings Range: 40 A, 120-277 VAC, 60 Hz
Electronic Ballast Load Ratings Range: 16 A, 277 VAC, 60 Hz
Operating Temperature Range: -40 to 130 Degrees F
Switch Type: DPST
Operation Mode: 24 Hour
Minimum Wire Size: #14 AWG
Maximum Wire Size: #8 AWG
No. of Circuit: 1
Wiring Configuration: Terminal

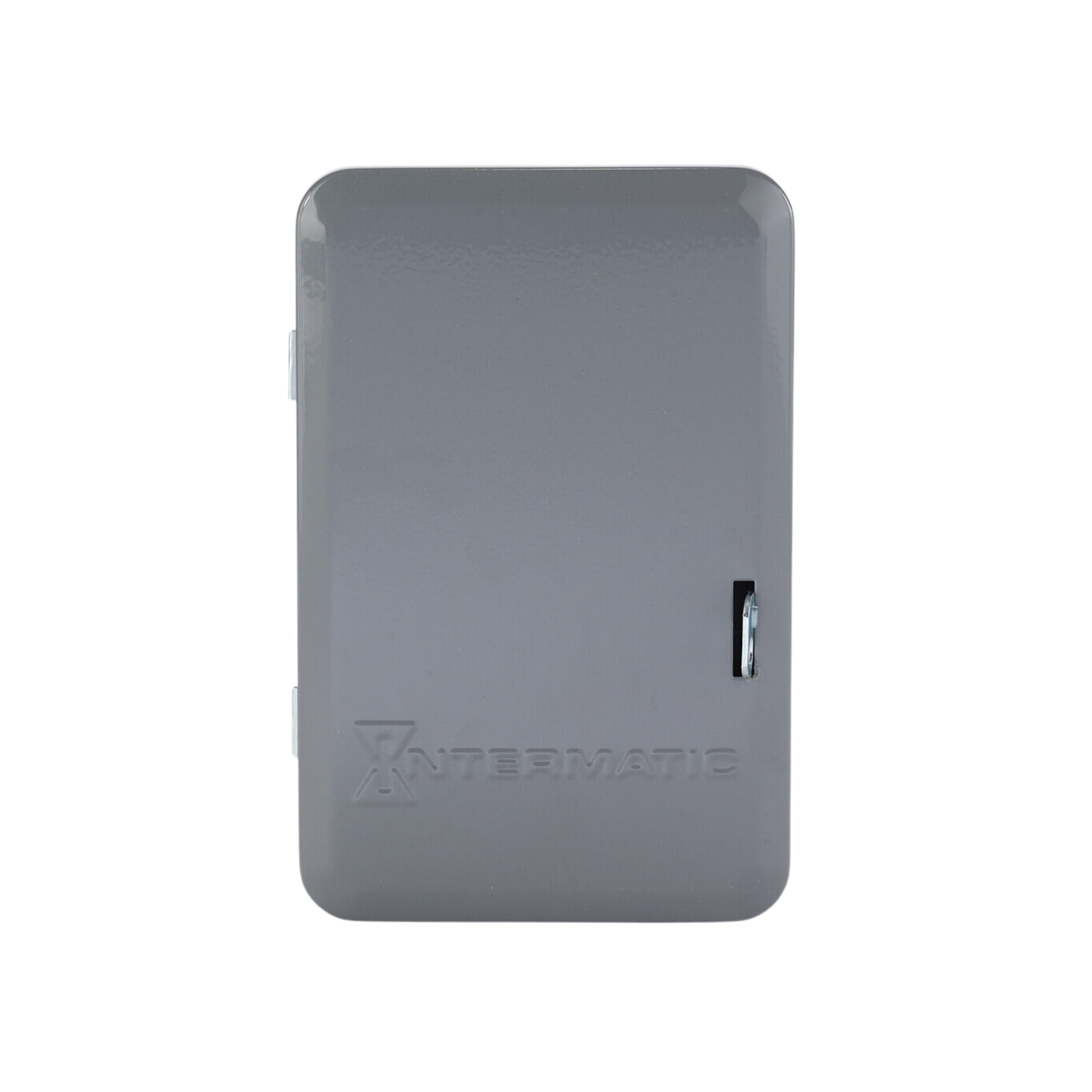

Enclosure: Indoor Type 1 Metal
Dimensions: 5.3" x 8.05" x 3.2"
Weight: 2.78 lb.
