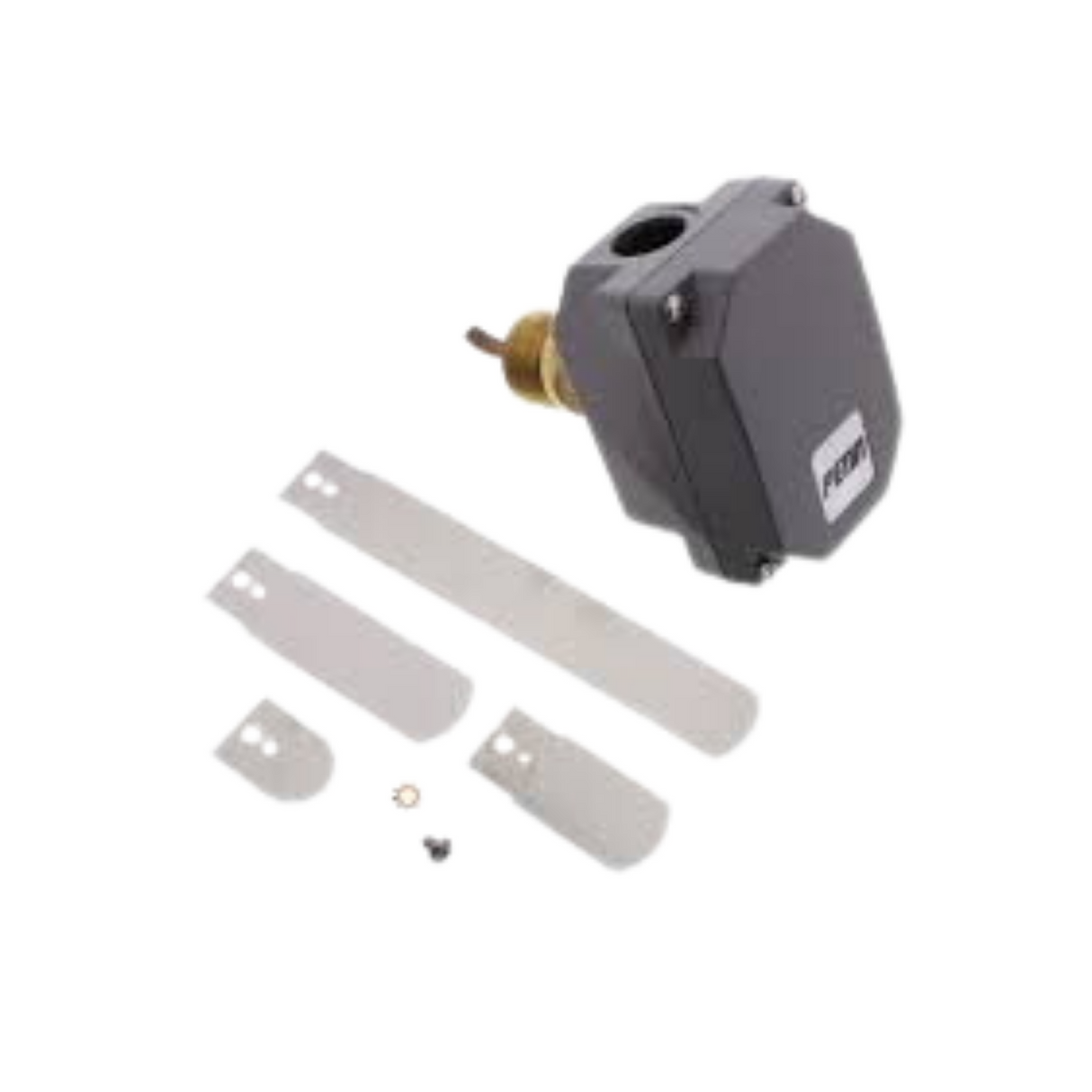

Johnson Controls F261KAH-V01C - Flow Switch, Standard Model, Nema 3R Enclosure, 1", 2", 3" and 6" Stainless Steel Paddles, 24V-240 Vac, SPDT, 1"-11 1/2" Pipe Size
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Johnson Controls F261KAH-V01C - Flow Switch, Standard Model, Nema 3...
Description
Description
Features:
Johnson Controls F261KAH-V01C fluid flow switch designed for regulating the fluid lines carrying ethylene glycol, oil, water & non hazardous fluids
Viton diaphragm for withstanding fluid temperatures up to 250 degrees F and a NEMA 3R rated polycarbonate enclosure for protection against harsh industrial conditions
UL-listed, CE-certified & RCM-compliant
Ideal for applications with pipe sizes equal to or greater than 1 inch
Specifications:
Manufacturer: JOHNSON CONTROLS
Manufacturer Part Number: F261KAH-V01C
Item: Flow Switch
Body Material: Plastic with Stainless Steel Paddle
Compliance: UL, CE, RCM Compliant
Connection Size: 1 MNPT
Contact Rating: 16A @ 120 VAC - Full Load
Flow Rate: 2.5 gpm to 760 gpm
Max. Ambient Temp: 140 Degrees
Max. Flow GPM: 760
Max. Fluid Temp: 250 Degrees
Max. HP: 1
Max. Pressure: 290
Min. Ambient Temp: -40 Degrees
Min. Flow Rate: 2.5
Min. Fluid Temp: -20 Degrees
Switch Enclosure: NEMA 3R
Switch Type: SPDT
Type: Standard Flow
Voltage: 24V-230V
Wetted Materials: Viton
