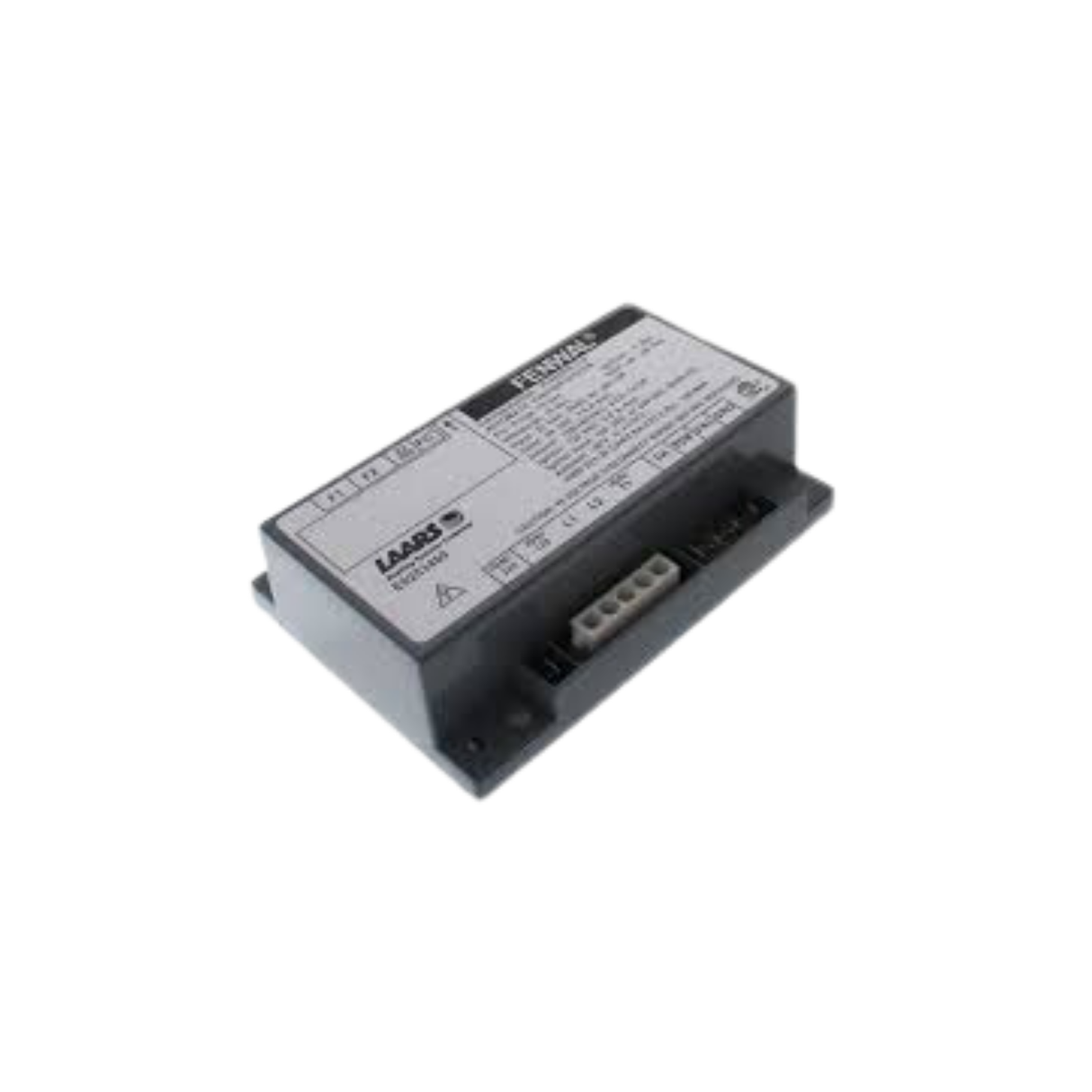

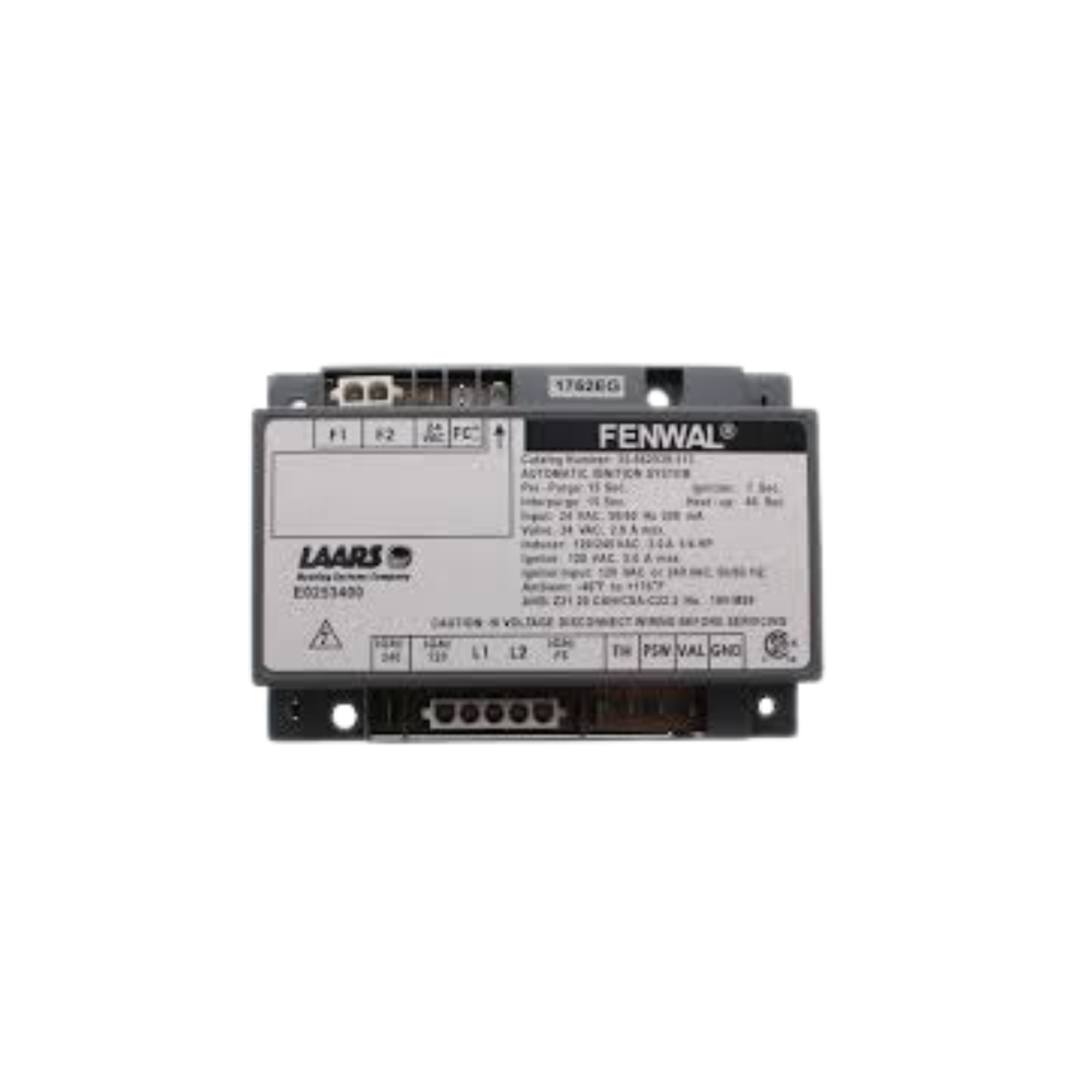

Laars Heating Systems E0253400 24 VAC 7 Ignition Timing Ignition Control Board
Laars Heating Systems E0253400 24 VAC 7 Ignition Timing Ignition Control Board is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Laars Heating Systems E0253400 24 VAC 7 Ignition Timing Ignition Co...
Description
Description
Specifications:
Manufacturer: Laars Heating Systems
Manufacturer Part Number: E0253400
Product Type: Ignition Control Board
Input Voltage Rating: 24 VAC
Input Frequency Rating: 50/60 Hz
Input Current Rating: 300 mA
Valve Voltage Rating: 24 VAC
Valve Current Rating: 2.0 A
Inducer Electrical Rating: 120/240 VAC, 3.0 A, 1/4 HP
Ignitor Electrical Rating: 120 VAC, 5.0 A
Ignitor Input: 120/240 VAC, 50/60 Hz
Ambient Temperature Rating: -40 to 176 Degrees F
Pre-purge Timing: 15 Seconds
Interpurge Timing: 15 Seconds
Ignition Timing: 7 Seconds
Heat-up Timing: 40 Seconds
Dimensions: 4" x 5.7" x 1.55"
Weight: 2.0 lb.
