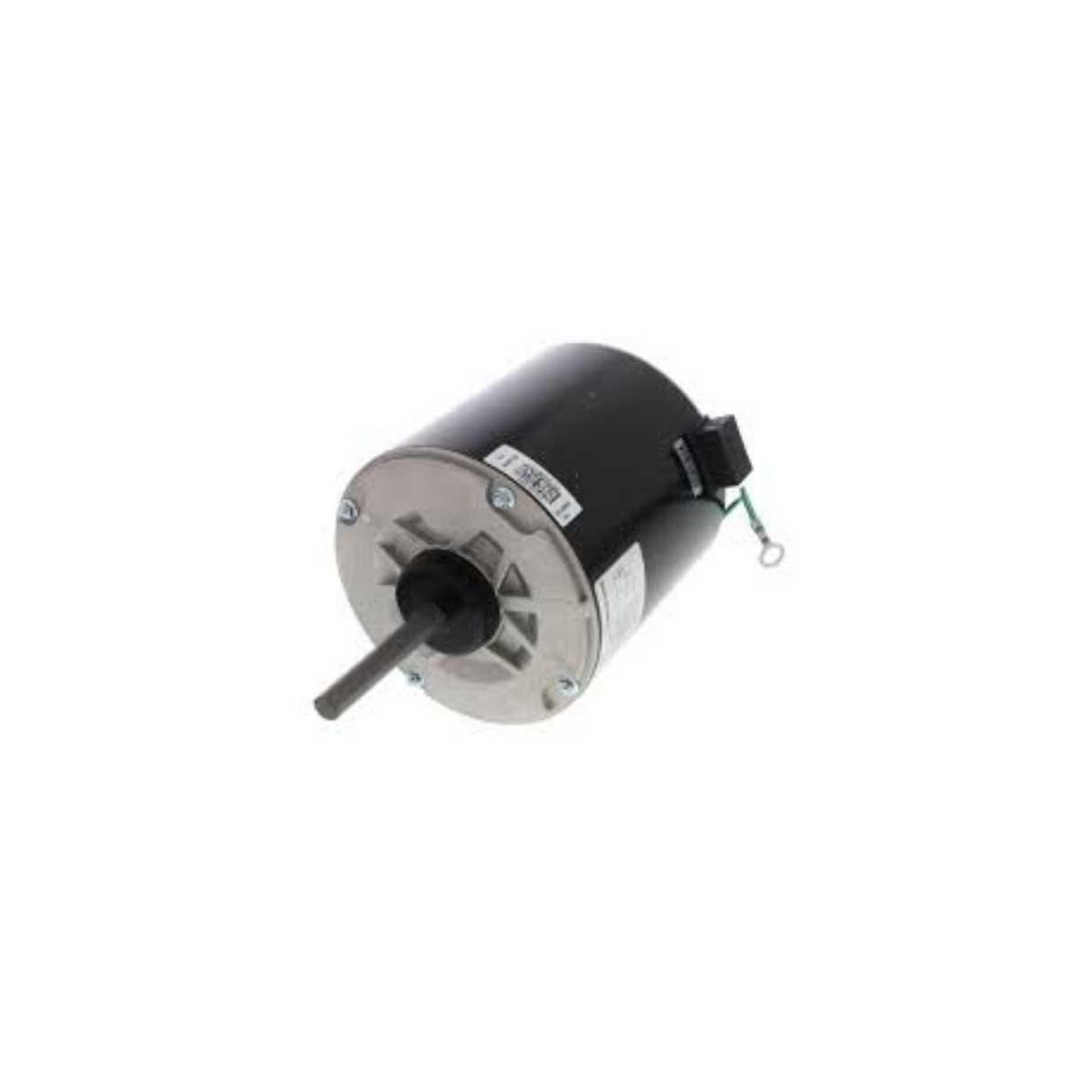

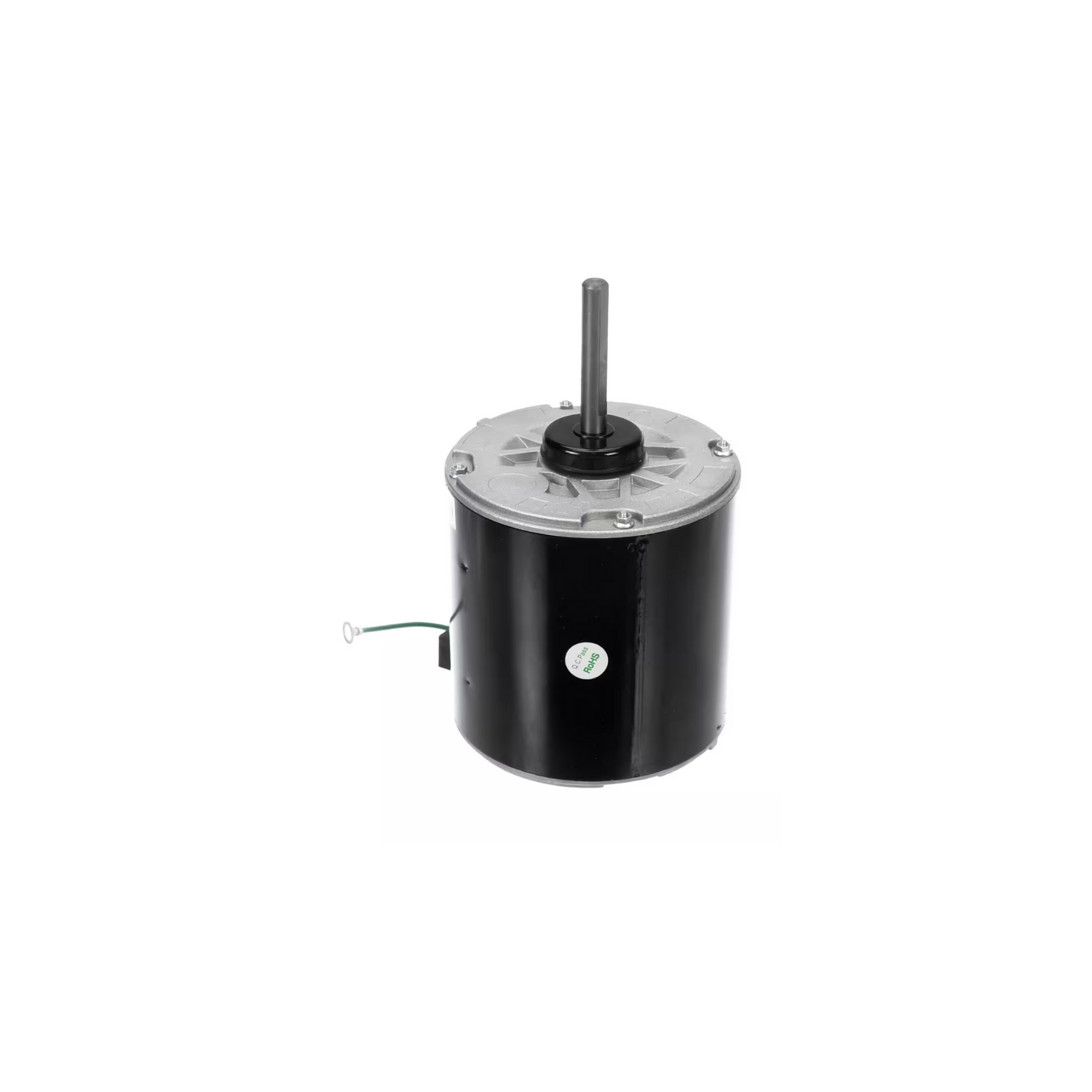

Lennox 14Y70 460 V 50/60 Hz 1075 RPM 1/3 HP Counter Clockwise from ...
The Lennox 14Y70 Fan Motor cools refrigerant by driving the fan that blows air over the condenser coils, dissipating heat so that the HVAC unit can function properly.
Specifications:
Manufacturer:  Lennox
Manufacturer Part Number: 14Y70
Product Type: Condenser Fan Motor
Voltage Rating: 380/460 V
Frequency Rating: 50/60 HZ
Current Rating: 0.8/1.1 A
Motor Size: 1/3 HP
Frame Size: 48
RPM: 1075
No. of Phase: 1
No. of Speed: 1
Shaft Length: 3.4"
Shaft Size: 1/2" x 3.4"
Rotation: Counter Clockwise from Lead End
Mounting: Belly Band
Dimensions: 11.2" x 13.1" x 10.25"
Weight: 16.07 lb.
