Features:
A High Leverage Valve Linkage Assembly To Deliver Positive Dead-End Lock-Up, The Regulators Are Capable Of Precise Regulating Control From Full Flow Down To Pilot Flow
Multi-Position Mounting
Specifications:
Manufacturer: Maxitrol
Manufacturer Part Number: 325-3L_1/2

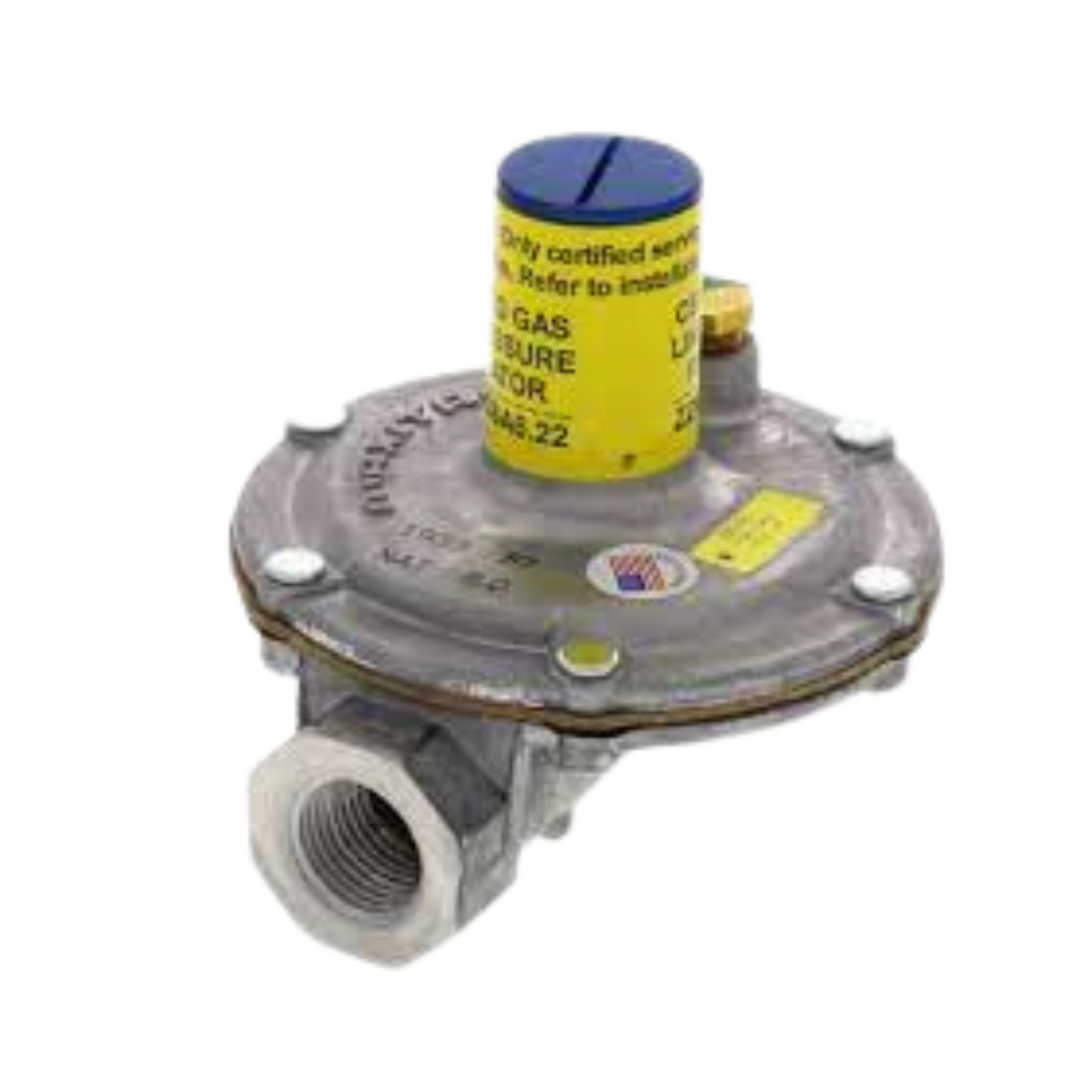

Product Type: Line Pressure Regulator
Actuation: Type Lever
Nominal Size: 1/2 Inch
End Connection: Female Threaded X Female Threaded
End To End Distance: 4.2 Inch
Body Material: Aluminum
Temperature Rating: -40 To 205 Deg F
Pressure Rating: 1 And 2 Psi (Inlet), 65 Psi (Emergency Exposure Limit), 7 And 11 Inch Wc (Outlet)
Inclusions/Features Overpressure Protection Device
Vent Pipe Connection: 1/8 Inch Threaded
Swing Radius: 3 Inch
Height: 3.5 Inch
Individual Load Rating: 140000 Btu/Hour
Capacity: 250000 Btu/Hour
