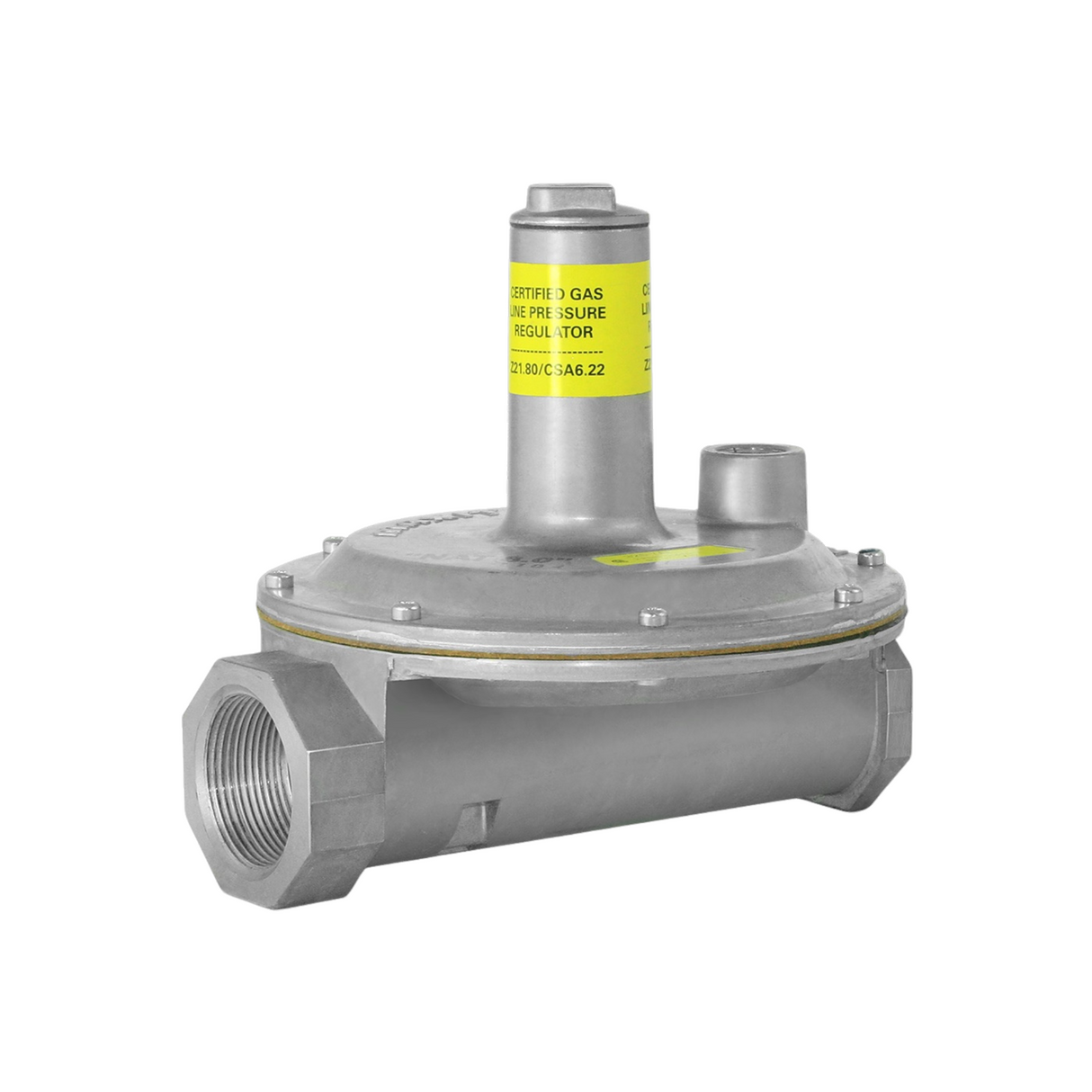

Maxitrol 325-5L-3/4-12A39 3/4" Line Regulator, 425,000 BTU, 7-11" Spring
Maxitrol 325-5L-3/4-12A39 3/4" Line Regulator, 425,000 BTU, 7-11" Spring is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Maxitrol 325-5L-3/4-12A39 3/4" Line Regulator, 425,000 BTU, 7-...
Description
Description
Features:
A High Leverage Valve Linkage Assembly To Deliver Positive Dead-End Lock-Up, The Regulators Are Capable Of Precise Regulating Control From Full Flow Down To Pilot Flow
Multi-Position Mounting
Specifications:
Manufacturer: Maxitrol
Manufacturer Part Number: 325-5L_3/4
Product Type: Line Pressure Regulator
Actuation Type: Lever
Nominal Size: 3/4 Inch
End Connection: Female Threaded X Female Threaded
End To End Distance: 5.9 Inch
Body Material: Aluminum
Temperature Rating: -40 To 205 Deg F
Pressure Rating: 1 And 2 Psi (Inlet), 65 Psi (Emergency Exposure Limit), 7 And 11 Inch Wc (Outlet)
Gas Type: Natural, Mixed Gas, Liquefied Petroleum Gas And Lp Gas Air Mixture
Vent Pipe Connection: 3/8 Inch Threaded
Swing Radius: 4.9 Inch
Height: 5.3 Inch
Individual Load Rating: 425000 Btu/Hour
Capacity: 600000 Btu/Hour
