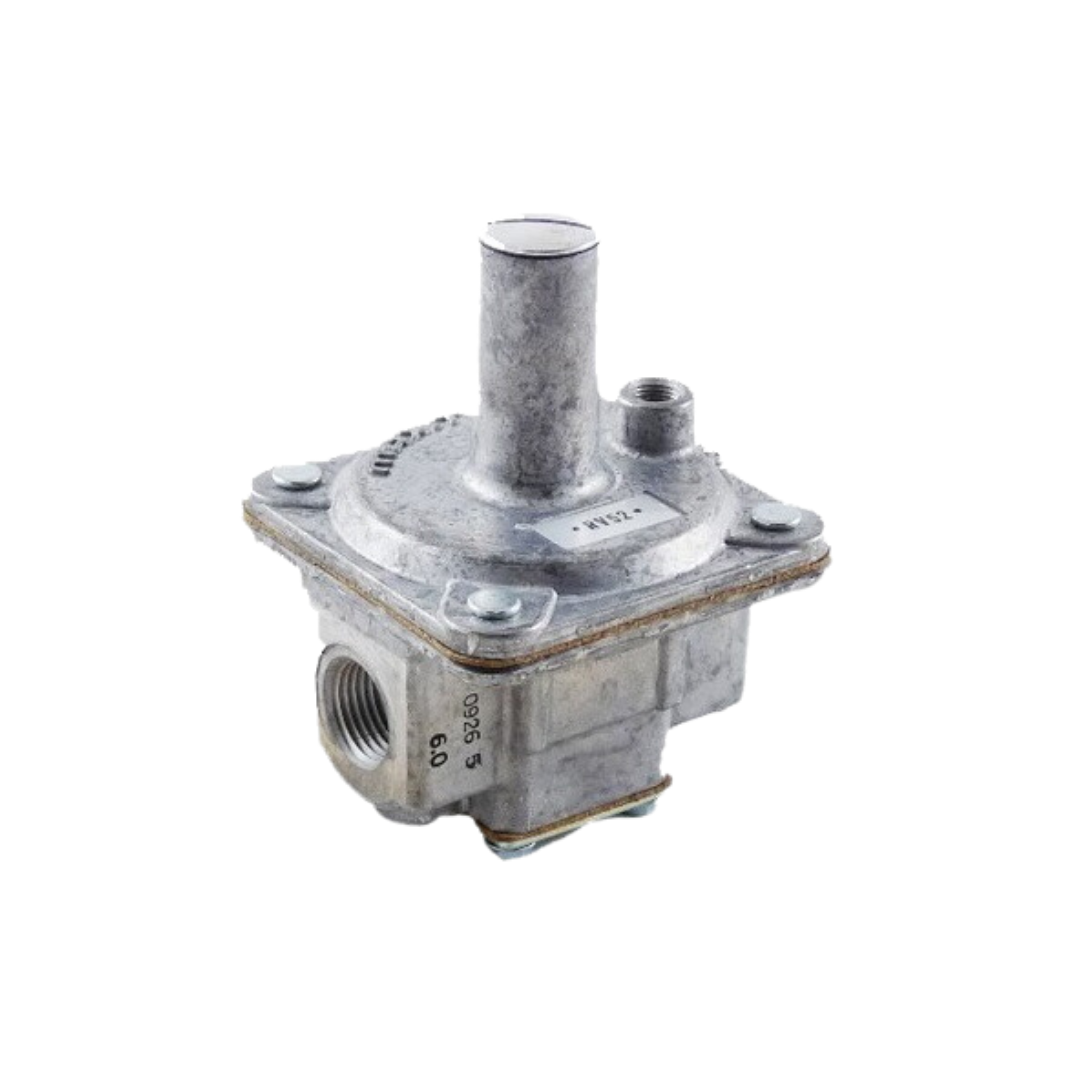

Maxitrol RV52-34, 3/4" NPT Straight Through Flow Regulators

The RV52, RV53, & RV61 are suitable for multipurpose mounting. The RV81, RV91, RV111, & RV131 are recommended for normal horizontal position only. Maxitrol's original Straight-Thru-Flow design meets your needs for high capacities at low inlet pressures. The basic difference between Straight-Thru-Flow design and other type regulators lies in the conical valve.

The cone principal permits gas to flow straight through the regulator without changing directions. Frictional flow resistance is reduced, resulting in greater capacity. The improved flow pattern provides accurate sensitive regulation at extremely low pressure differentials. The ability of the regulator to handle large capacity appliances with limited supply pressure offers a definite advantage to designers of commercial and industrial gas-fired equipment.

Specifications:

Manufacturer: Maxitrol
Manuacturer Part Number: RV52-3/4
Product Type: Gas Pressure Regulator - Straight-Thru-Flow, Non-Lock Up
Body Material: Aluminum
End Connection: Female Threaded x Female Threaded
End to End Distance: 3.2 Inch
Temperature Rating: -40 to 205 Deg F
Pressure Drop Rating: 956 BTU/Hour
Pressure Rating: 1/2 PSI (Inlet), 3 PSI (Emergency Exposure Limit), 15 PSI (Gas Containment Limit)
Gas Type: Natural, Mixed Gas, Liquefied Petroleum Gas and LP Gas Air Mixture
Vent Pipe Connection: 1/8 Inch Threaded
Swing Radius: 3.6 Inch
Nominal Size: 3/4 Inch
Size: 3.3 Inch Width x 4.9 Inch Height
