Nidec-US Motors  |  SKU: 1820VG

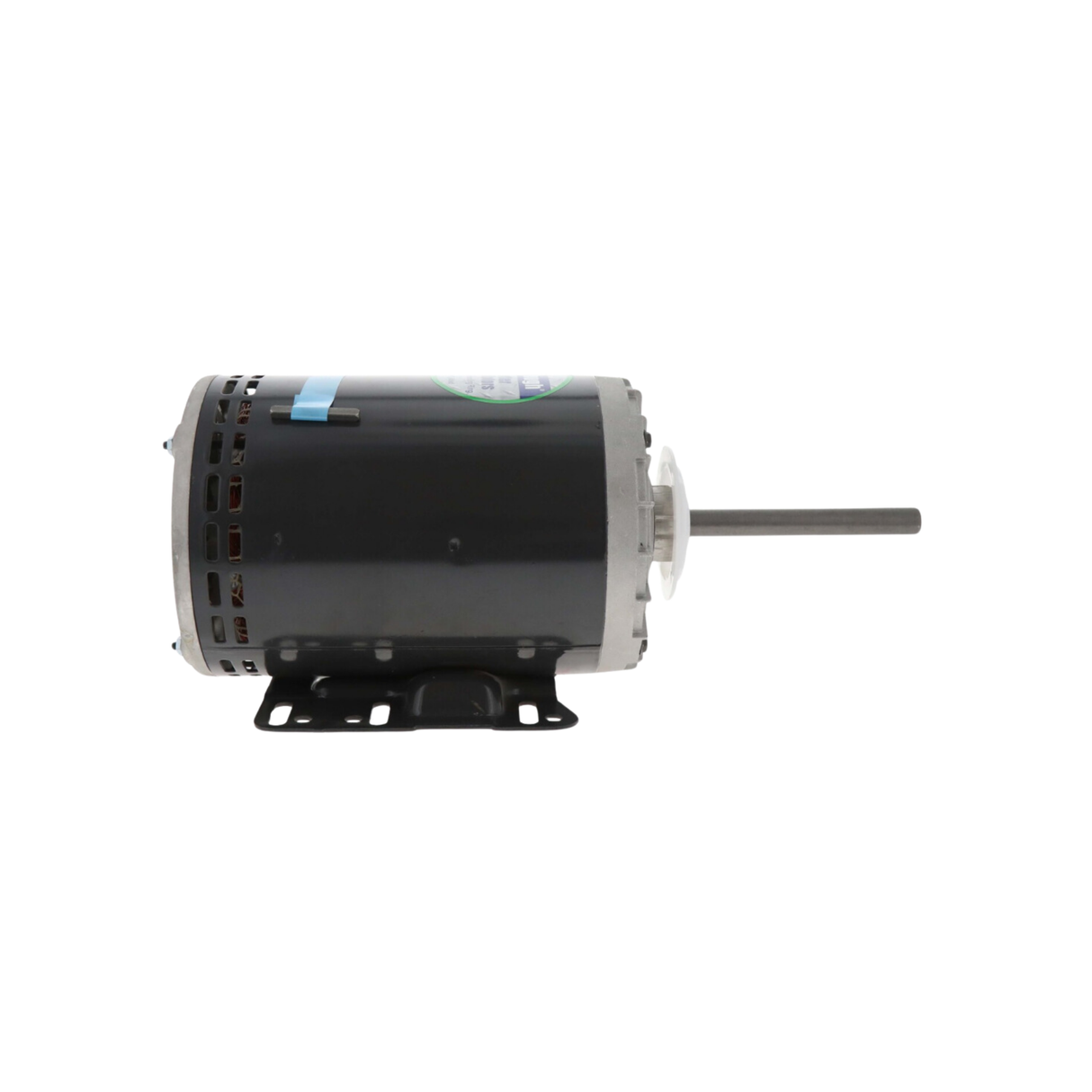

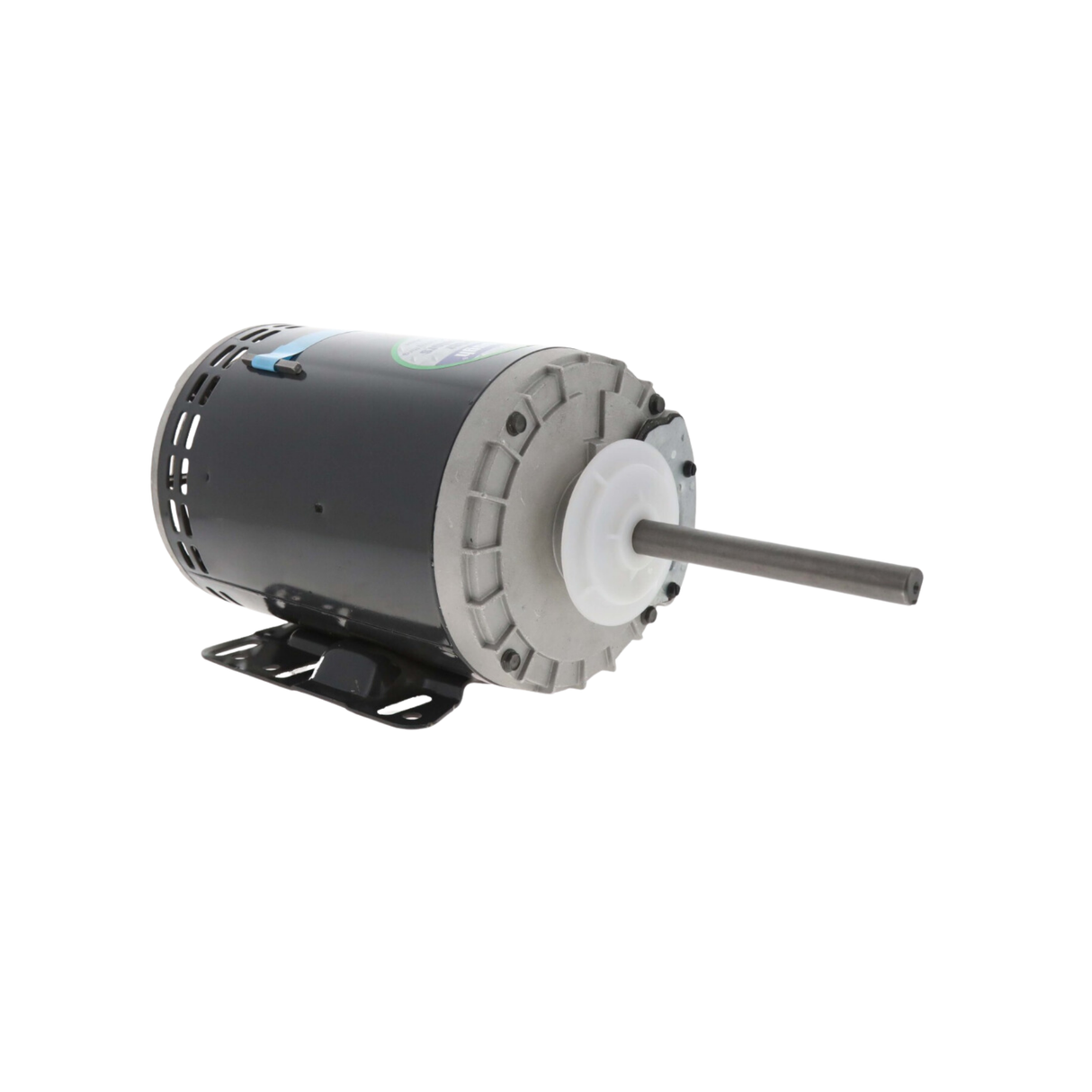

Nidec-US Motors 1820VG 208-230/460 V 1 HP 1140 RPM Condenser Fan Motor

$672.20

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

Specifications:

Manufacturer: Nidec-US Motors
Manufacturer Part Number: 1820VG
Product Type: Condenser Fan Motor
Voltage Rating: 208-230/460 V
Frequency Rating: 60 Hz
Current Rating: 2.1 A, 4.3 A
Motor Size: 1 HP
RPM: 1140
Frame: NEMA 56YZ
No. of Phase: 3
Rotation: Reversible
Mounting: Rigid Base
Enclosure Type: Open Air Over
Dimensions: 18.65" x 10.75" x 11.2"
Weight: 37.4 lb.

Catalog Page
