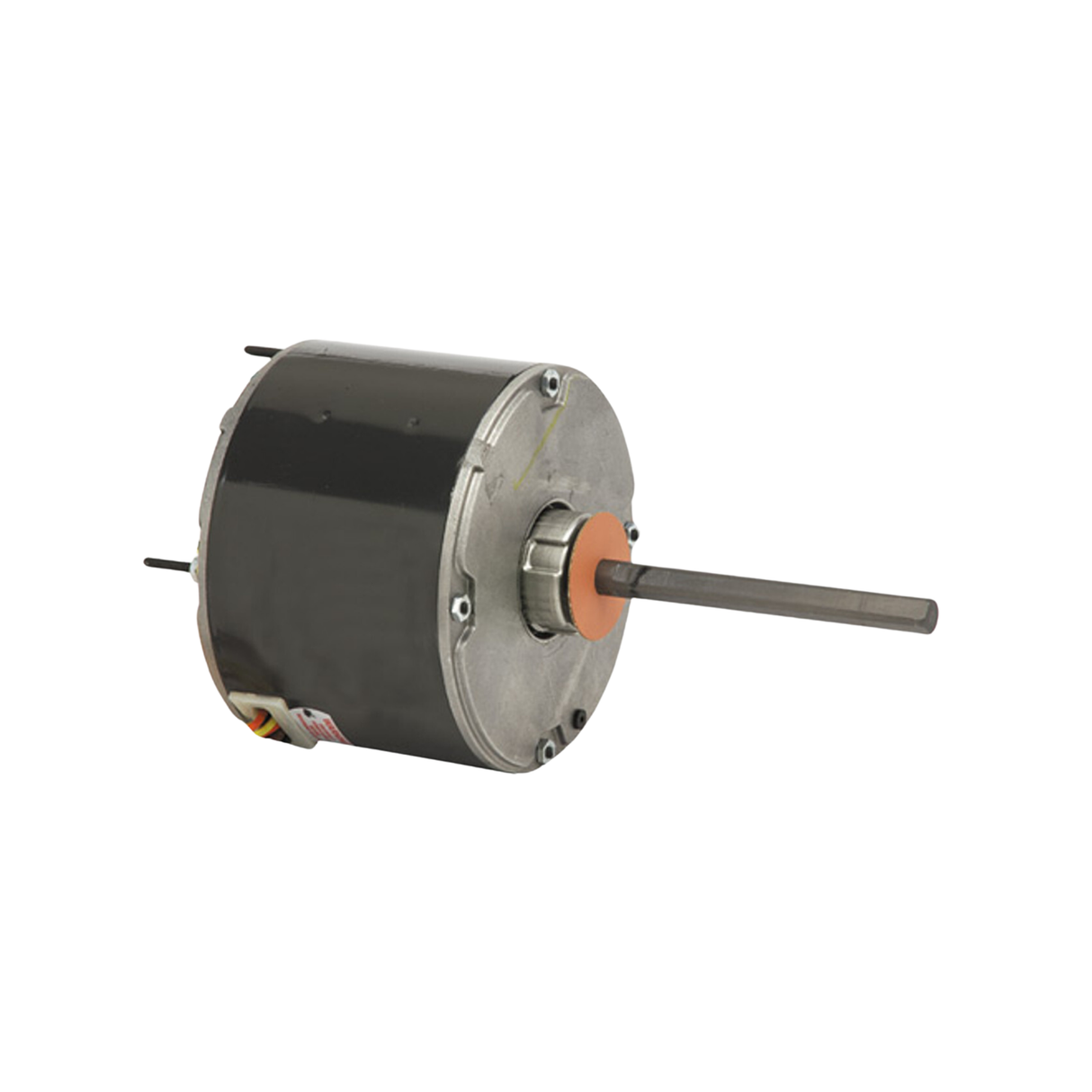

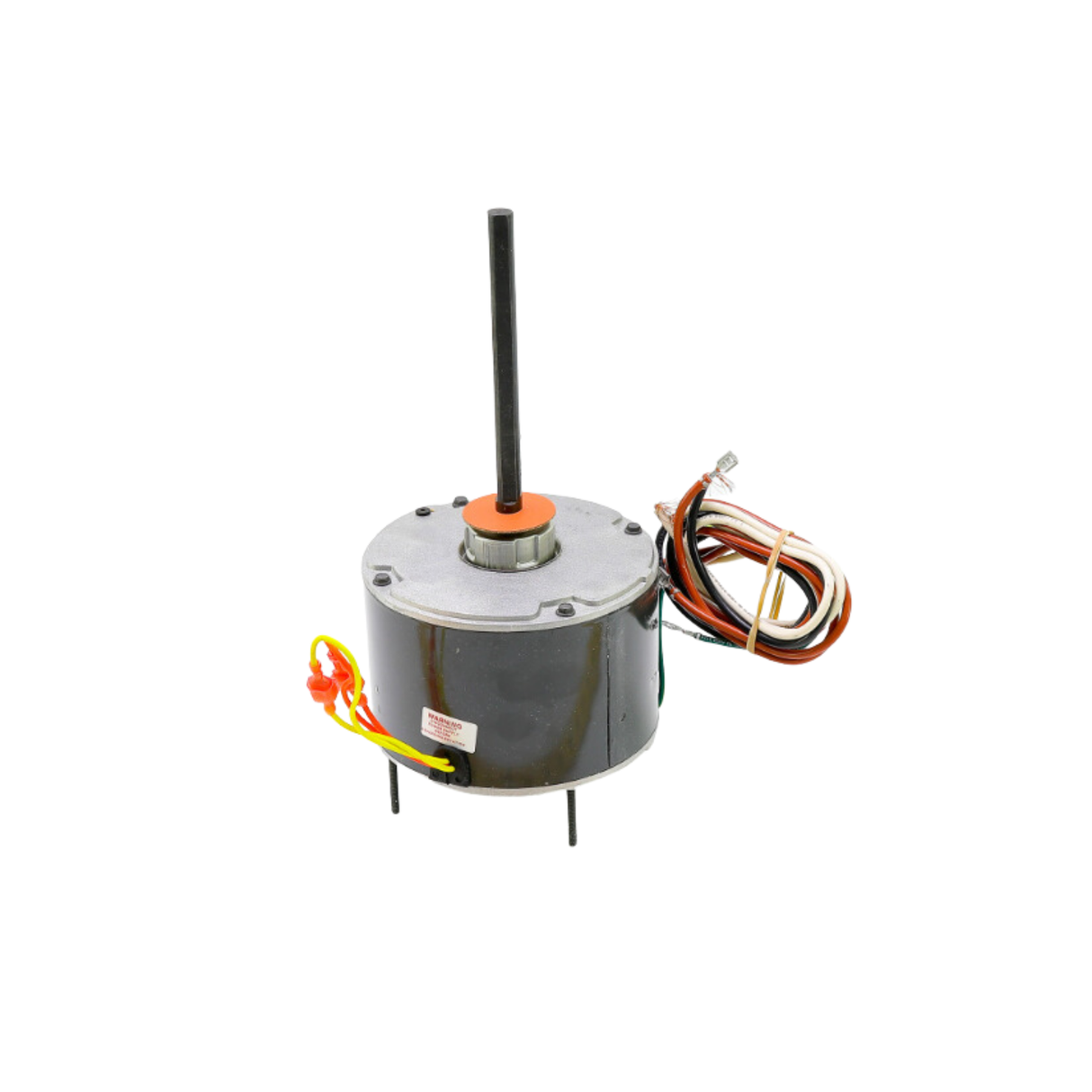

Nidec-US Motors 1872 208-230 V 1/8 HP 825 RPM Condenser Fan Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors 1872 208-230 V 1/8 HP 825 RPM Condenser Fan Motor
Description
Description
Features:
140°F (60°C) ambient design
Sleeve bearings have all angle thrust system
Class B insulation
Designed for use with 370V capacitors
Extended studs
30" leads
Hubless lead end
Drain holes both ends
Reversible rotation
Automatic reset thermal overload protector
Continuous-duty
Applications: Residential and commercial condensing unit fan motors to meet manufacturer's requirements
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: 1872
Product Type: Condenser Fan Motor
Voltage Rating: 208-230 V
Frequency Rating: 60 Hz
Current Rating: 0.78 A
Motor Size: 1/8 HP
RPM: 825
Frame: NEMA 48Y
No. of Phase: 1
Rotation: Reversible
Mounting: Stud
Enclosure Type: Totally Enclosed Air Over
Dimensions: 15.65" x 7.15" x 6.75"
Weight: 11.0 lb.
