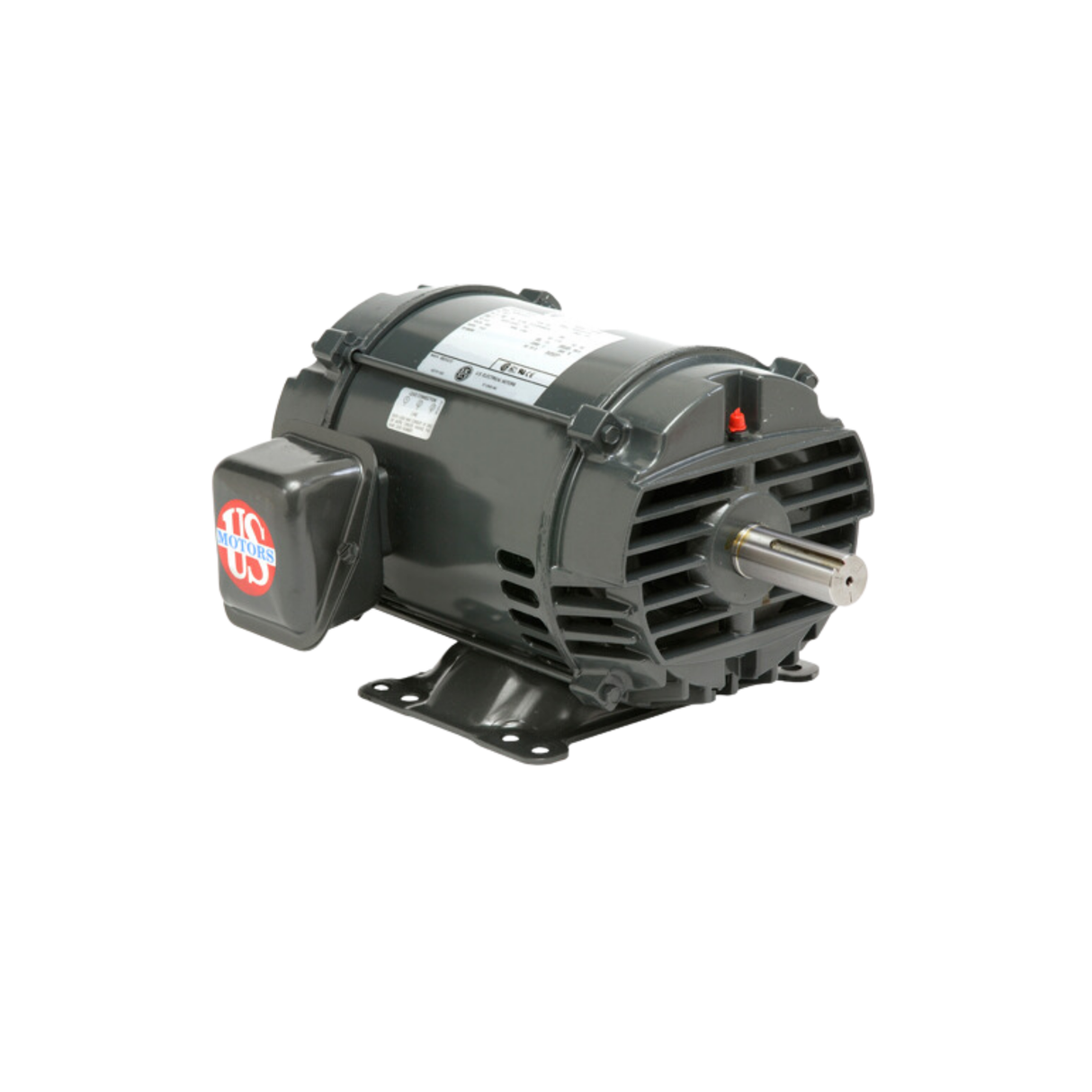

Nidec-US Motors D15P1D 208-230/460 V 15 HP 3490 RPM General Purpose Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors D15P1D 208-230/460 V 15 HP 3490 RPM General Purpose...
Description
Description
Features:
World Motor® features except where noted
Class F insulation, Class B rise at service factor
Rolled steel frame 56–320, cast iron frame 360–440
Aluminum end shields 56–250, cast iron end shields 280440
“CE” mark on nameplate (140 frame and larger)
40°C ambient, NEMA® Design B Performance on 60 Hz sine wave power
1.15 service factor
Regreasable bearings 180 frame and up
Double shielded bearings 140–400, open on 440
Bearing caps on 400 and 440 frames
F1 assembly position except where noted
Lifting provisions 210 frame and up
Applications: For use in pumps, fans, compressors, material handling and other general-purpose applications where contaminants are minimal
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: D15P1D
Product Type: General Purpose Motor
Voltage Rating: 208-230/460 V
Frequency Rating: 50/60 Hz
Current Rating: 40.0–36.0 / 18.0 A
Motor Size: 15 HP
RPM: 3490
Frame: NEMA 215T
No. of Phase: 3
Mounting: Horizontal / Foot
Enclosure Type: Open Drip Proof
Dimensions: 22.9" x 14.4" x 14.8"
Weight: 110.0 lb.
