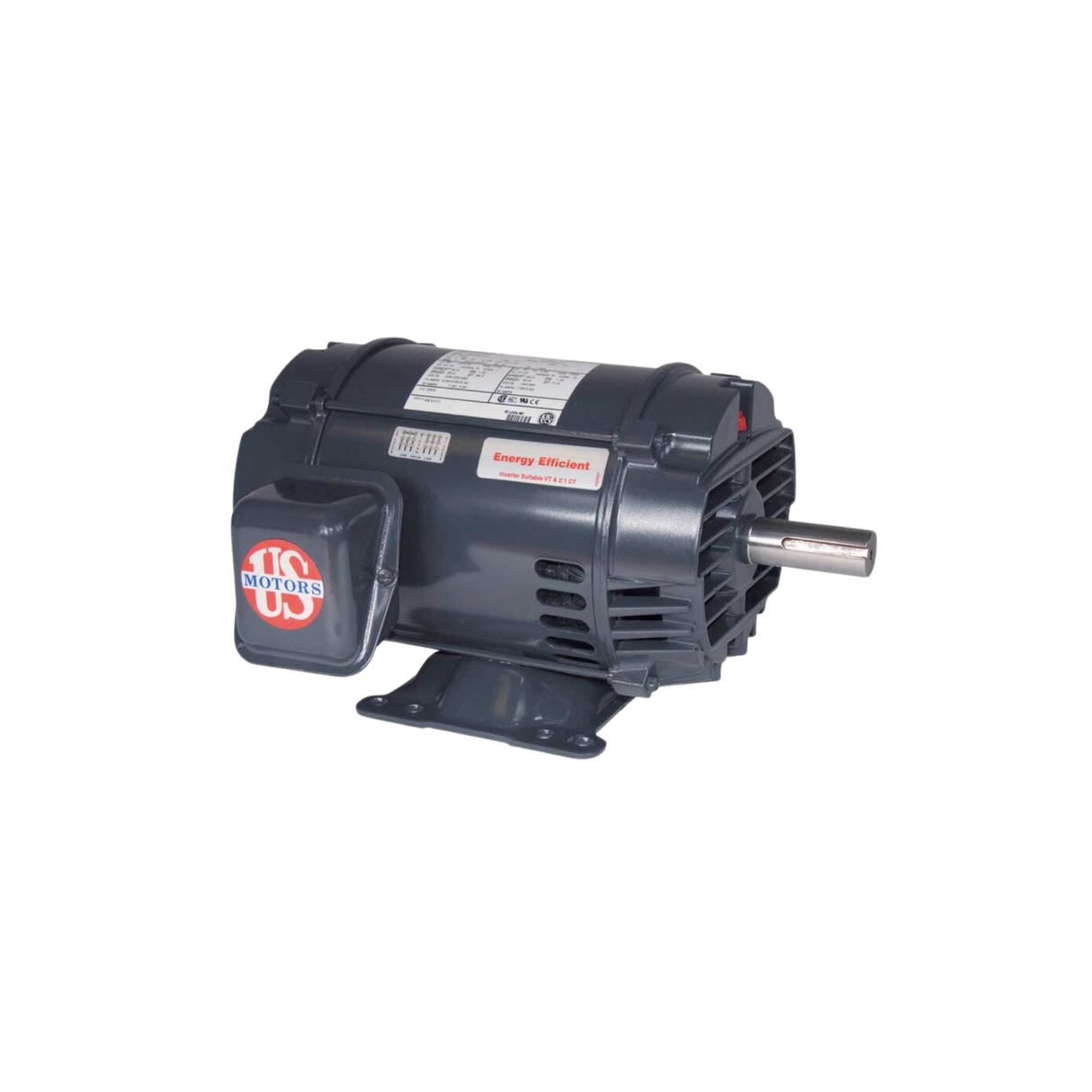

Nidec-US Motors D1P2D 208-230/460 V 1 HP 1760/1445 RPM General Purpose Motor

Features:

Class F insulation, Class B rise at service factor
Rolled steel frame 56ΓÇô320, cast iron frame 360ΓÇô440
Aluminum end shields 56ΓÇô250, cast iron end shields 280440
ΓÇ£CEΓÇ¥ mark on nameplate (140 frame and larger)
40°C ambient, NEMA® Design B Performance on 60 Hz sine wave power
1.15 service factor
Regreasable bearings 180 frame and up
Double shielded bearings 140ΓÇô400, open on 440
Bearing caps on 400 and 440 frames
F1 assembly position except where noted
Lifting provisions 210 frame and up
Applications: For use in pumps, fans, compressors, material handling and other general-purpose applications where contaminants are minimal

Specifications:

Manufacturer: Nidec-US Motors
Manufacturer Part Number: D1P2D
Product Type: General Purpose Motor
Voltage Rating: 208-230/460 V
Frequency Rating: 50/60 Hz
Current Rating: 3.1 A / 1.6 A
Motor Size: 1 HP
RPM: 1760/1445
Frame: NEMA 143T
No. of Phase: 3
Rotation: Reversible
Mounting: Horizontal / Foot
Enclosure Type: Open Drip Proof
Dimensions: 15.5" x 13.0" x 9.0"
Weight: 34.5 lb.
