Nidec-US Motors  |  SKU: D32P2AH9

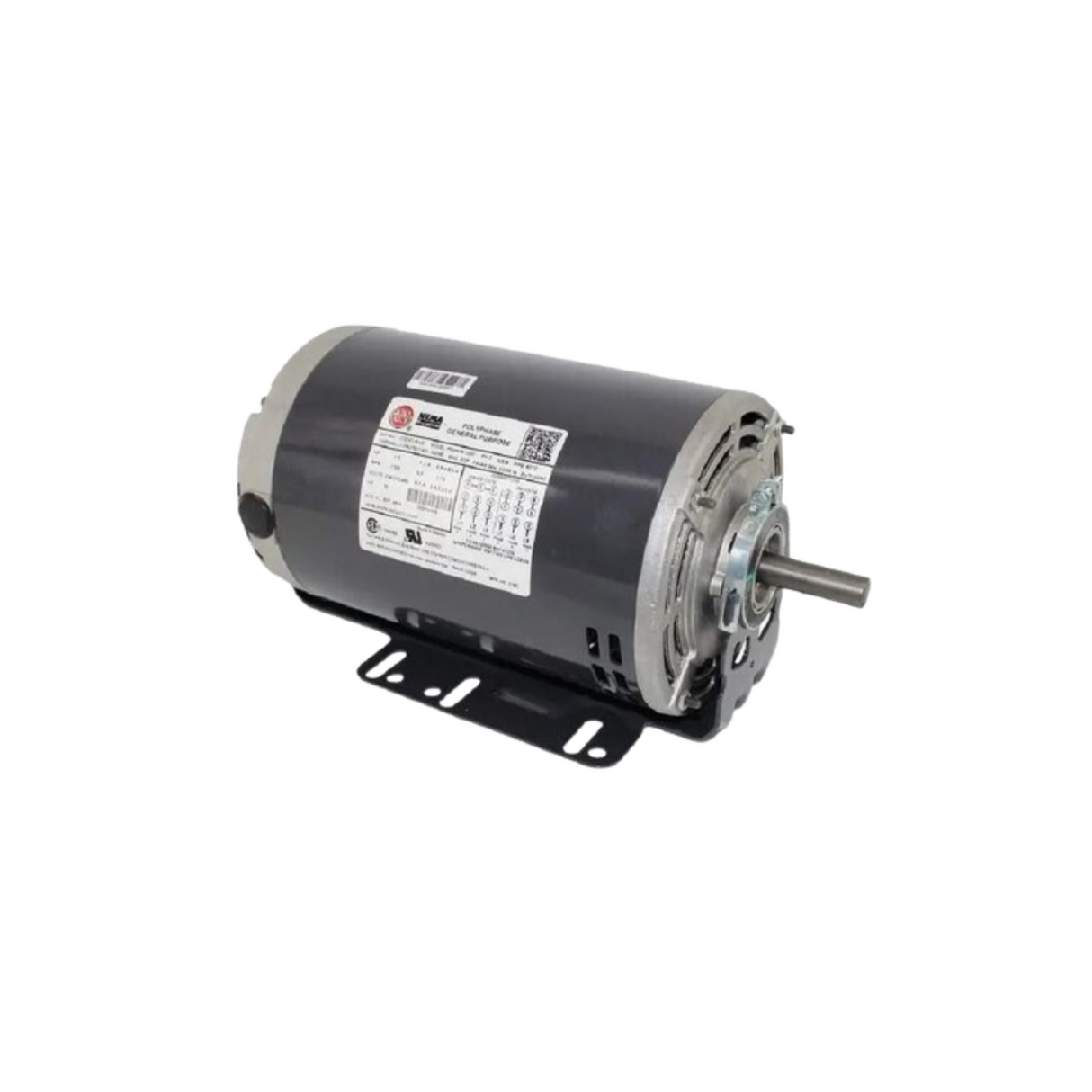

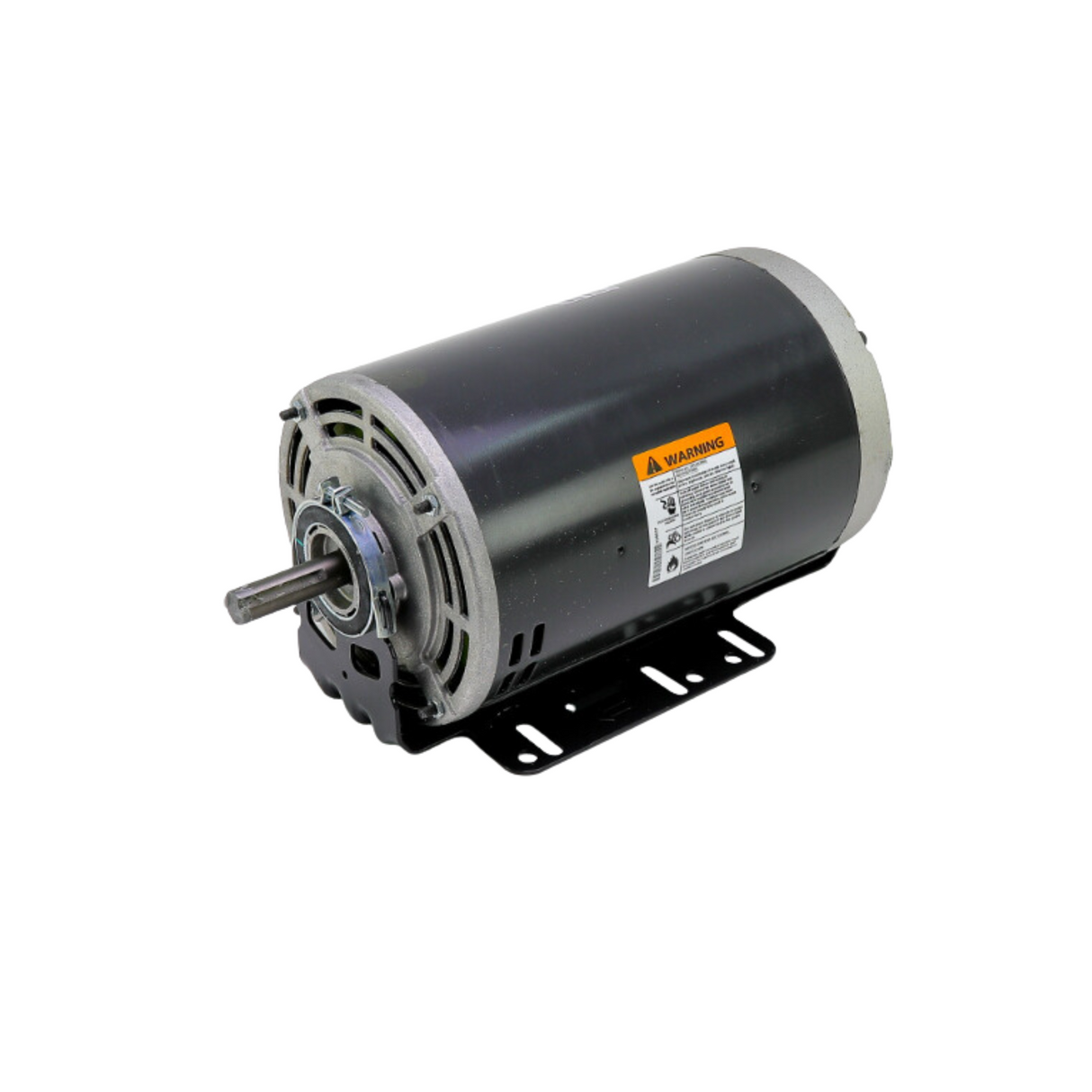

Nidec-US Motors D32P2AH9 208-230/460 V 1.5 HP 1725 RPM General Purpose Motor

$640.42

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

Specifications:

Manufacturer: Nidec-US Motors
Manufacturer Part Number: D32P2AH9
Product Type: General Purpose Motor
Voltage Rating: 208-230/460 V
Frequency Rating: 60 Hz
Current Rating: 2.4 A, 4.8-5.0 A
Motor Size: 1.5 HP
RPM: 1725
Frame: NEMA 56H
No. of Phase: 3
Rotation: Reversible
Mounting: Resilient Base
Enclosure Type: Open Drip Proof
Dimensions: 10.8" x 18.55" x 10.7"
Weight: 39.9 lb.
