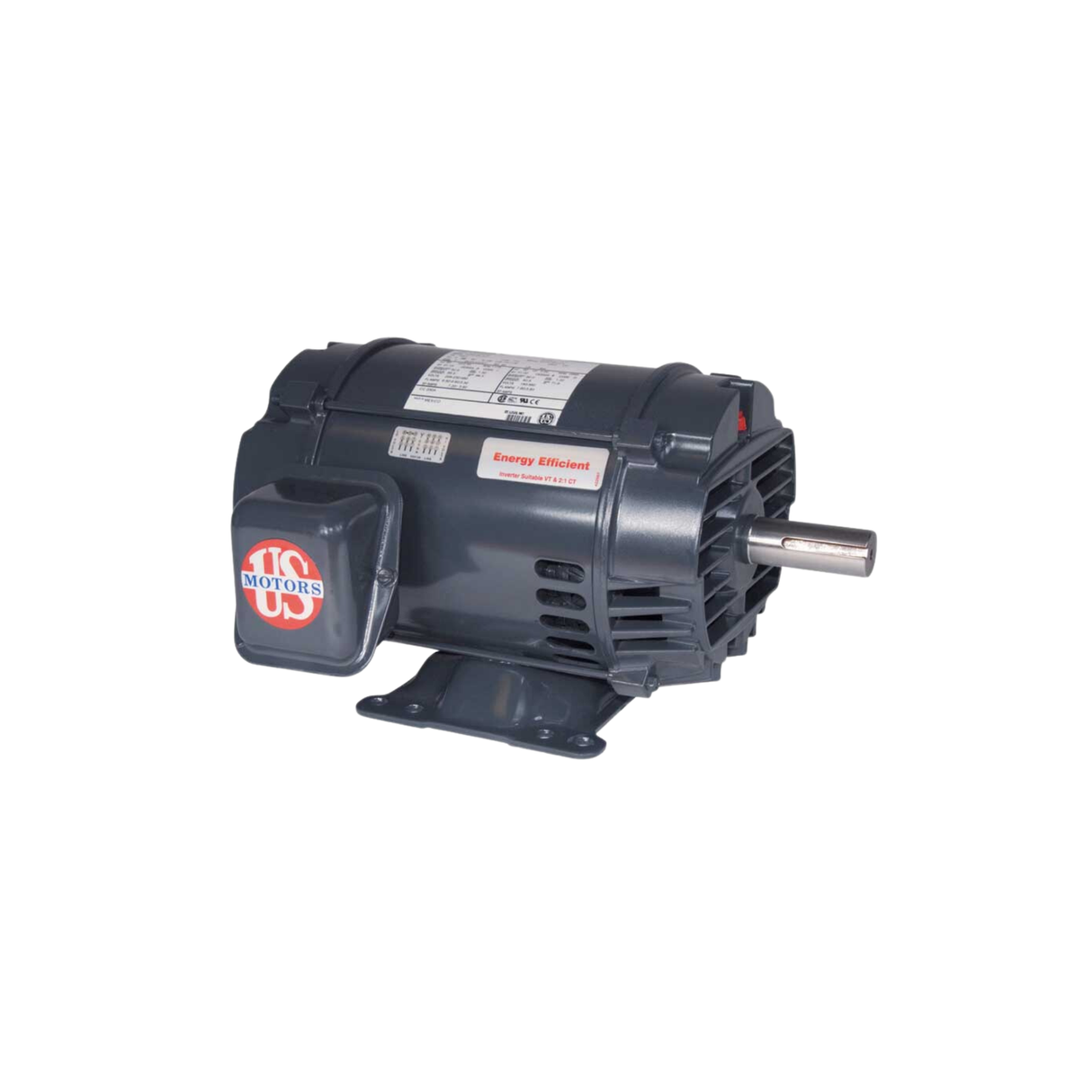

Nidec-US Motors D3P2D 208-230/460 VAC 8.3-7.6 A /3.8 A 3 HP 1460-1770 RPM Reversible General Purpose Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors D3P2D 208-230/460 VAC 8.3-7.6 A /3.8 A 3 HP 1460-17...
Description
Description
Features:
World Motor® features except where noted
Class F insulation, Class B rise at service factor
Rolled steel frame 56–320, cast iron frame 360–440
Aluminum end shields 56–250, cast iron end shields 280440
“CE” mark on nameplate (140 frame and larger)
40°C ambient, NEMA® Design B Performance on 60 Hz sine wave power
1.15 service factor
Regreasable bearings 180 frame and up
Double shielded bearings 140–400, open on 440
Bearing caps on 400 and 440 frames
F1 assembly position except where noted
Lifting provisions 210 frame and up
Applications: For use in pumps, fans, compressors, material handling and other general-purpose applications where contaminants are minimal
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: D3P2D
Product Type: General Purpose Motor
Voltage Rating: 208-230/460 VAC
Frequency Rating: 50/60 Hz
Current Rating: 8.3-7.6 A /3.8 A
Motor Size: 3 HP
RPM: 1460-1770
Frame: NEMA 182T
Rotation: Reversible
Dimensions: 13.5" x 18.5" x 12.0"
Weight: 60.5 lb.
