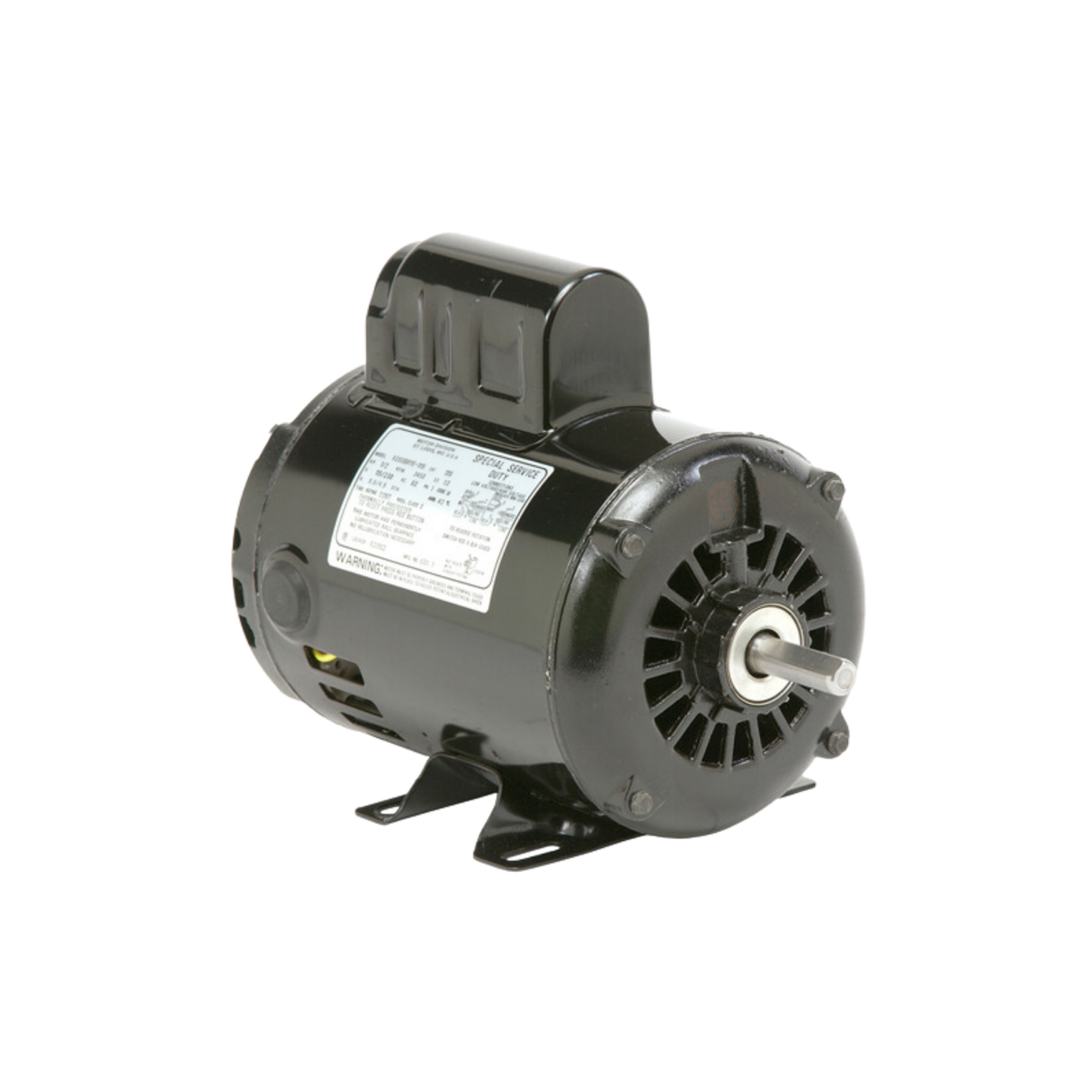

Nidec-US Motors D5C2K18 230 V 5 HP 1740 RPM General Purpose Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors D5C2K18 230 V 5 HP 1740 RPM General Purpose Motor
Description
Description
Features:
Double shielded ball bearings
Rigid base standard
Class B insulation, continuous duty, 40°C ambient
F1 assembly
Reversible rotation
Applications - for air compressors, pumps, conveyors, blowers and general industrial equipment
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: D5C2K18
Product Type: General Purpose Motor
Voltage Rating: 230 V
Frequency Rating: 60 Hz
Current Rating: 22.0 A
Motor Size: 5 HP
RPM: 1740
Frame: NEMA 184T
No. of Phase: 1
Mounting: Horizontal / Foot
Enclosure Type: Open Drip Proof
Dimensions:23.0" x 15.0" x 15.0"
Weight: 78.5 lb.
