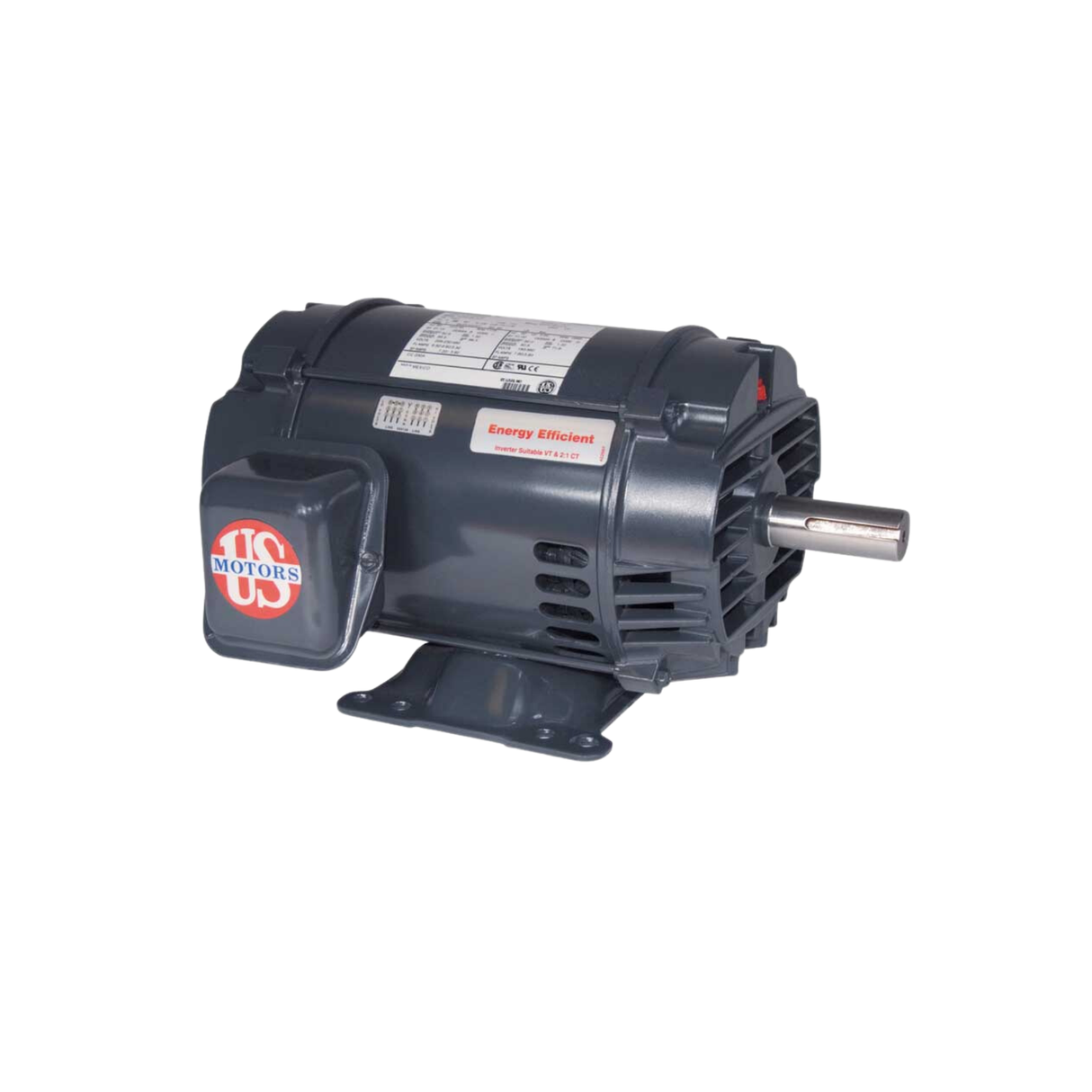

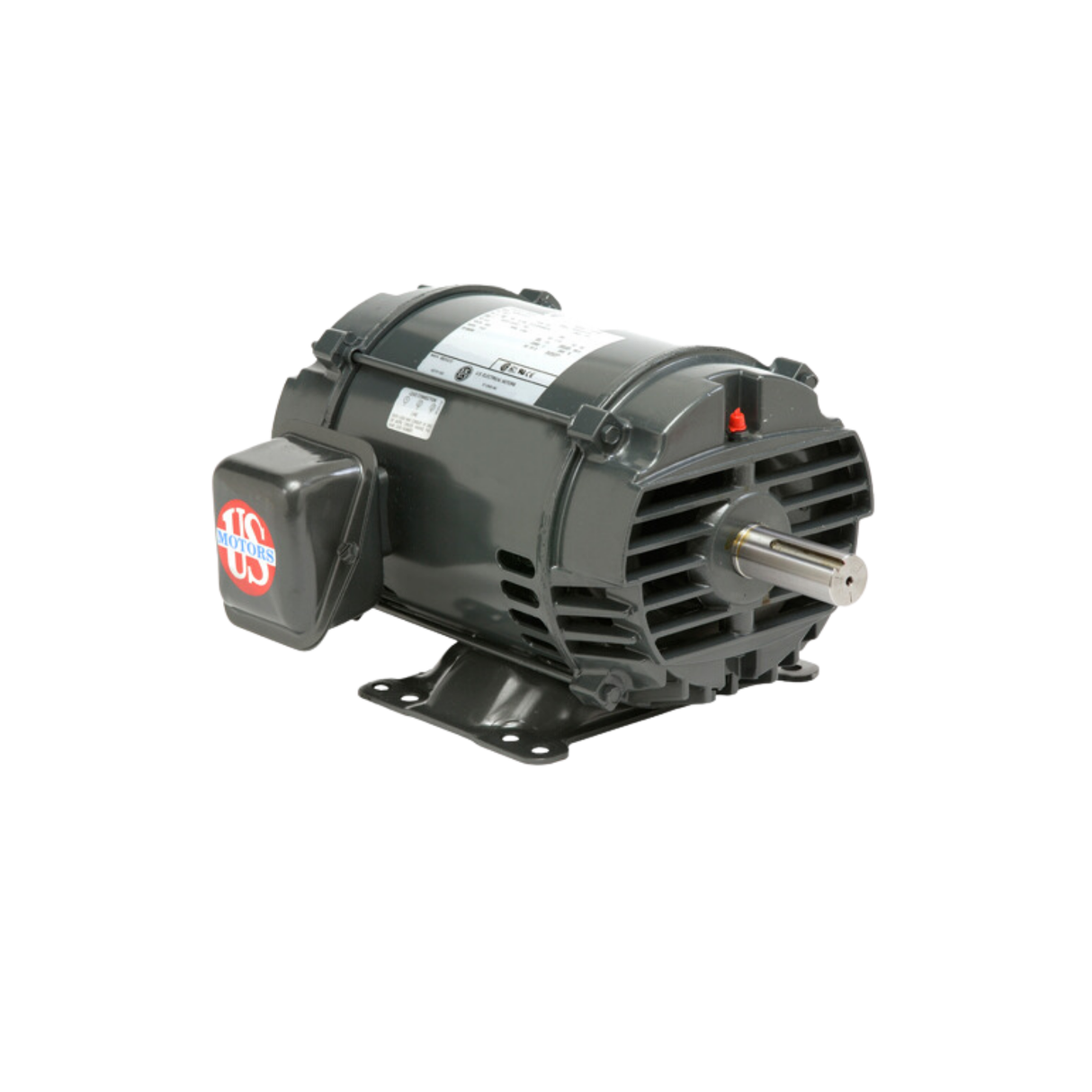

Nidec-US Motors D5P1D 208-230/460 V 3515 RPM 5 HP General Purpose Motor
Nidec-US Motors D5P1D 208-230/460 V 3515 RPM 5 HP General Purpose Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors D5P1D 208-230/460 V 3515 RPM 5 HP General Purpose M...
Description
Description
Features:
Class F insulation, Class B rise at service factor
Rolled steel frame 56–320, cast iron frame 360–440
Aluminum end shields 56–250, cast iron end shields 280440
“CE” mark on nameplate (140 frame and larger)
40°C ambient, NEMA® Design B Performance on 60 Hz sine wave power
1.15 service factor
Regreasable bearings 180 frame and up
Double shielded bearings 140–400, open on 440
Bearing caps on 400 and 440 frames
F1 assembly position except where noted
Lifting provisions 210 frame and up
Applications: For use in pumps, fans, compressors, material handling and other general-purpose applications where contaminants are minimal
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: D5P1D
Product Type: General Purpose Motor
Voltage Rating: 208-230/460 V
Frequency Rating: 50/60 Hz
Current Rating: 6.2 A
Motor Size: 5 HP
RPM: 3515
Frame: NEMA 182T
No. of Phase: 3
Rotation: Reversible
Mounting: Horizontal / Foot
Enclosure Type: Open Drip Proof
Dimensions: 18.0" x 13.5" x 12.0"
Weight: 62.5 lb.
