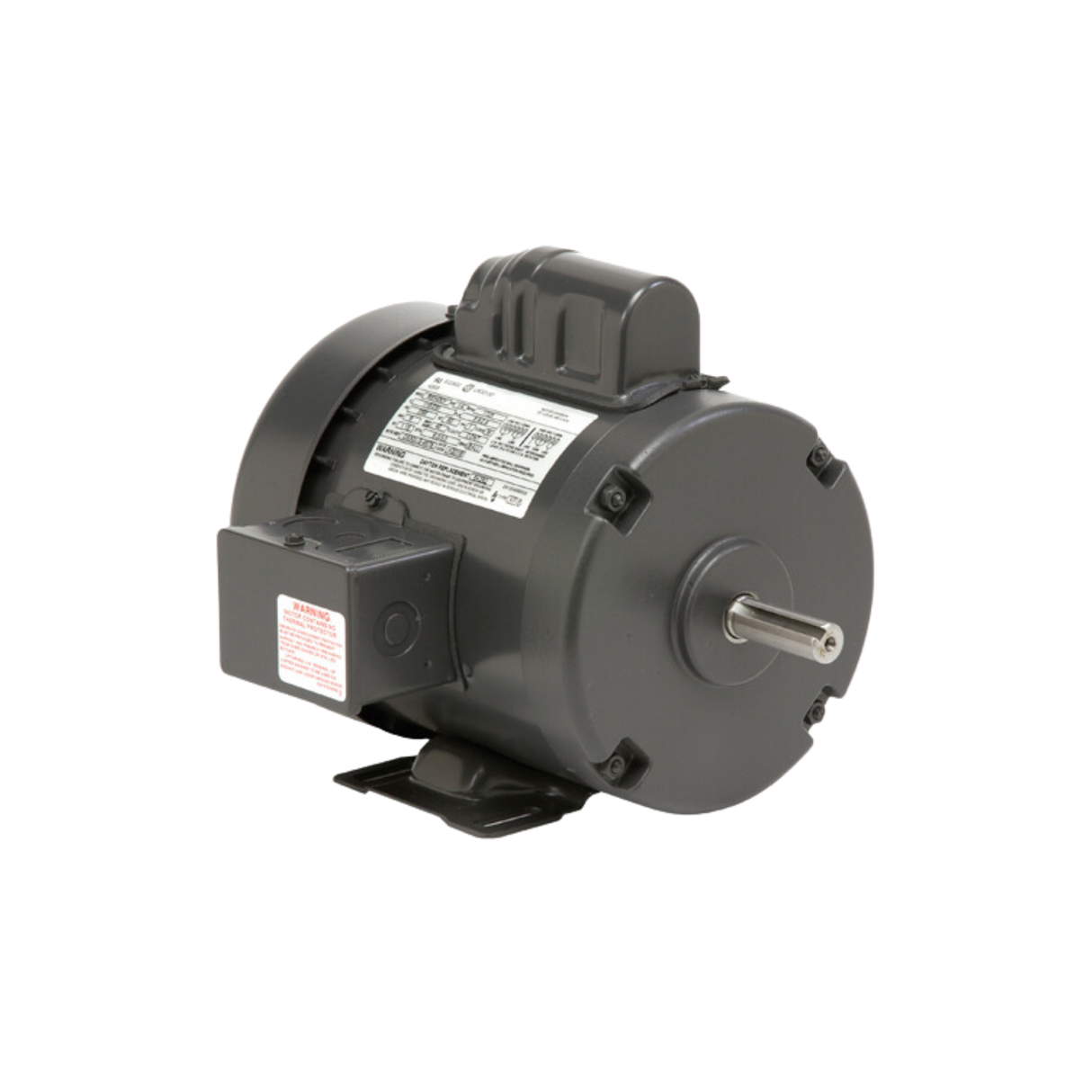

Nidec-US Motors T34C1J 115/208-230 V 3/4 HP 3450 RPM General Purpose Motor
Nidec-US Motors T34C1J 115/208-230 V 3/4 HP 3450 RPM General Purpose Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors T34C1J 115/208-230 V 3/4 HP 3450 RPM General Purpos...
Description
Description
Features:
Double shielded ball bearings
Class B insulation, continuous duty, 40°C ambient
Capacitor start, induction run
F1 assembly
Reversible rotation
Applications - for air compressors, pumps, conveyors, blowers and general industrial equipment
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: T34C1J
Product Type: General Purpose Motor
Voltage Rating: 115/208-230 V
Frequency Rating: 60 Hz
Current Rating: 10.4 A / 5.3-5.2 A
Motor Size: 3/4 HP
RPM: 3450
Frame: NEMA 56
No. of Phase: 1
Rotation: Reversible
Mounting: Rigid Base
Enclosure Type: Totally Enclosed Fan Cooled
Dimensions: 18.85" x 11.3" x 10.85"
Weight: 25.13 lb.
