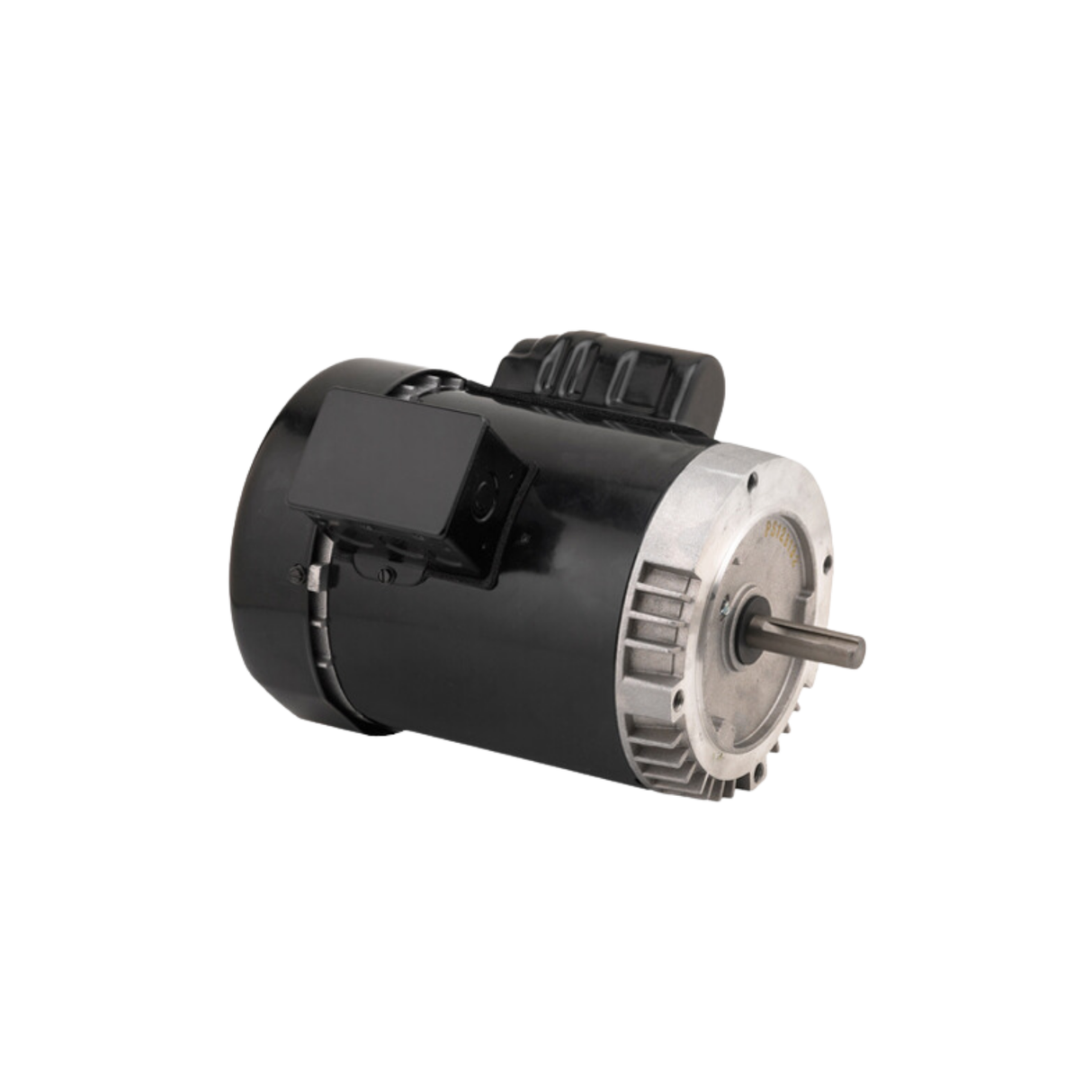

Nidec-US Motors T34C2JCR 115/208-230 V 3/4 HP 1725 RPM General Purpose Motor
Nidec-US Motors T34C2JCR 115/208-230 V 3/4 HP 1725 RPM General Purpose Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors T34C2JCR 115/208-230 V 3/4 HP 1725 RPM General Purp...
Description
Description
Features:
Double shielded ball bearings
Class B insulation, continuous duty, 40°C ambient
Capacitor start, induction run
F1 assembly
Reversible rotation
50 / 60 Hz motors have 1.0 S.F. on 50 Hz
Applications: For use on air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: T34C2JCR
Product Type: General Purpose Motor
Voltage Rating: 115/208-230 V
Frequency Rating: 60 Hz
Current Rating: 11.40 A / 5.70–5.70 A
Motor Size: 3/4 HP
RPM: 1725
Frame: NEMA 56C
No. of Phase: 1
Rotation: Reversible
Mounting: C-Face Flange
Enclosure Type: Totally Enclosed Fan Cooled
Dimensions: 12.2" x 18.9" x 12.3"
Weight: 28.04 lb.
