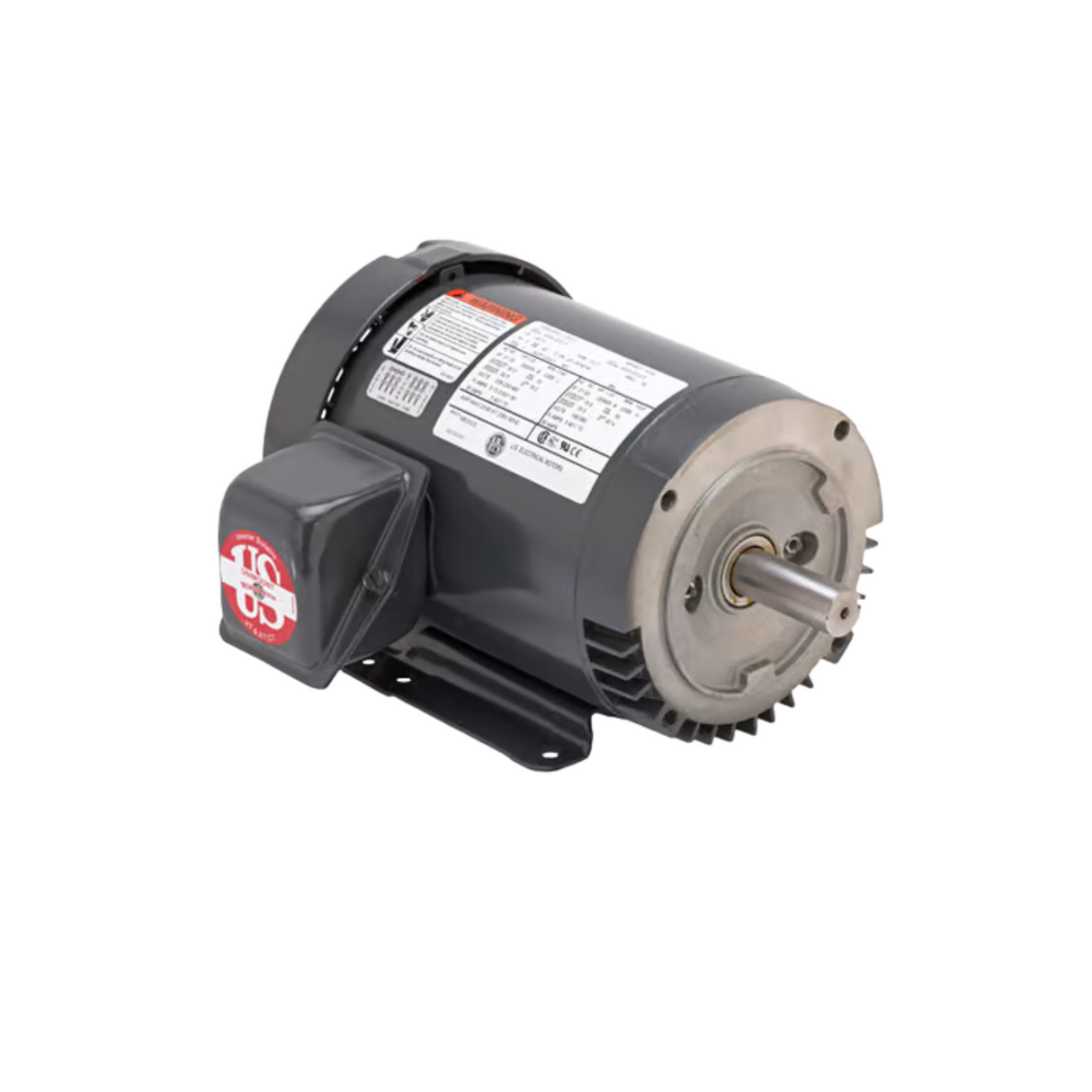

Nidec-US Motors U34S2AC 208-230/460 V 3/4 HP 1750 RPM General Purpose Motor

Features:

Class F insulation, Class B rise at full load on 60 Hz sine wave power
Extruded aluminum frame (180ΓÇô280) except where noted
Rolled steel frame (56ΓÇô140)
Service factor 1.25
Aluminum end shields with steel bearing inserts
Oversized diagonally split conduit box
Field convertible to F2 assembly (180 frame and up)
40°C ambient, NEMA® Design B performance on 60 Hz sine wave power
Regreasable shaft-end bearings (180 frame and up)
Sealed bearings (56ΓÇô140), double shielded (180ΓÇô280)
CE mark on nameplate, removable
Applications: For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment
All motors that currently have dual voltage will be upgraded to tri-voltage. Please note the catalog number will change as we transition from dual to tri-voltages. For example: U1P2B (dual voltage 230 / 460) will move to U1P2D (tri-voltage 208-230 / 460 at 60 Hz and 190 / 380 volts on 50 Hz)

Specifications:

Manufacturer: Nidec-US Motors
Manufacturer Part Number: U34S2AC
Product Type: General Purpose Motor
Voltage Rating: 208-230/460 V
Frequency Rating: 60 Hz
Current Rating: 2.6ΓÇô2.7 A / 1.4 A
Motor Size: 3/4 HP
RPM: 1750
Frame: NEMA 56C
No. of Phase: 3
Mounting: Horizontal / Foot Mount
Enclosure Type: Totally Enclosed Fan Cooled
Dimensions: 15.5" x 13.2" x 9.35"
Weight: 26.89 lb.
