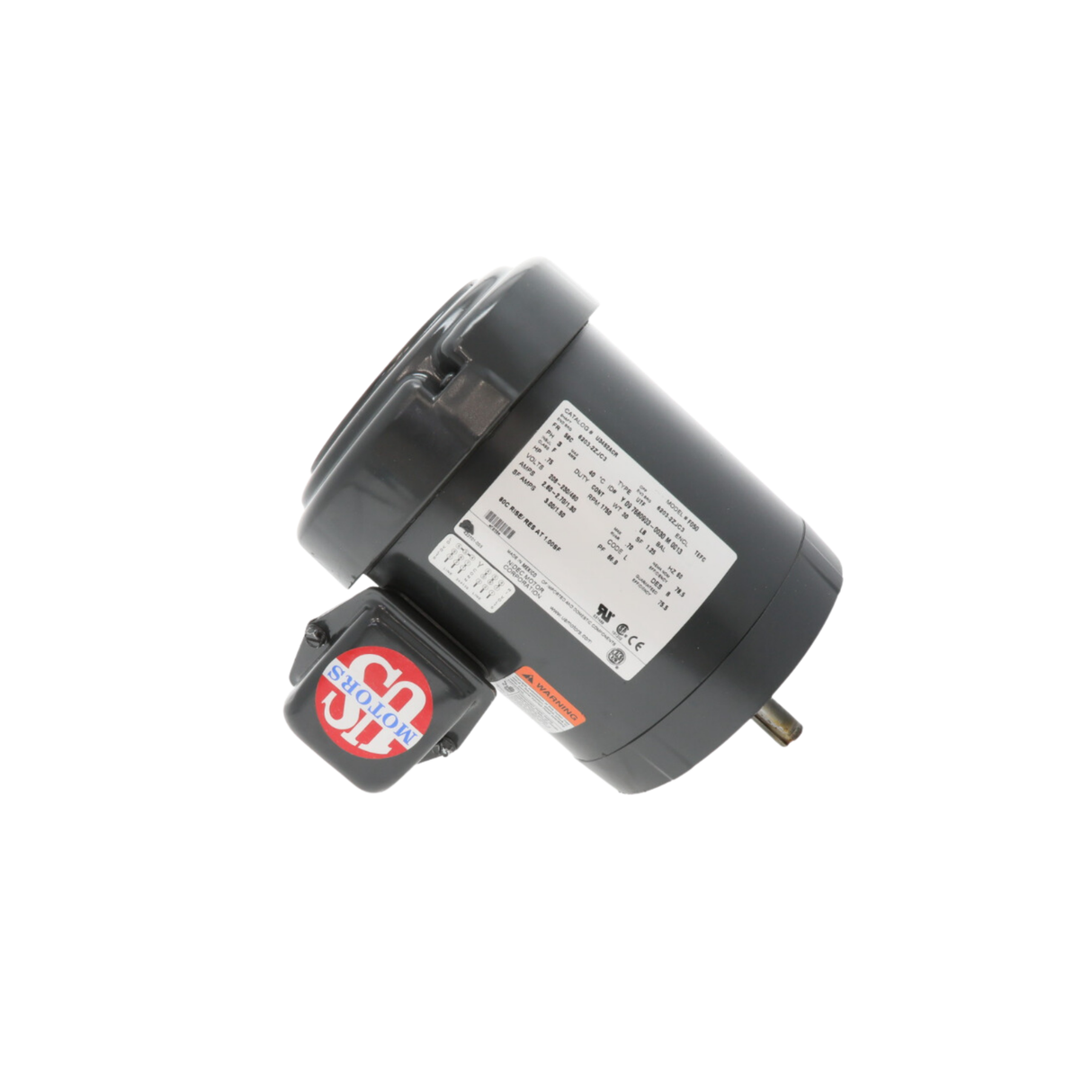

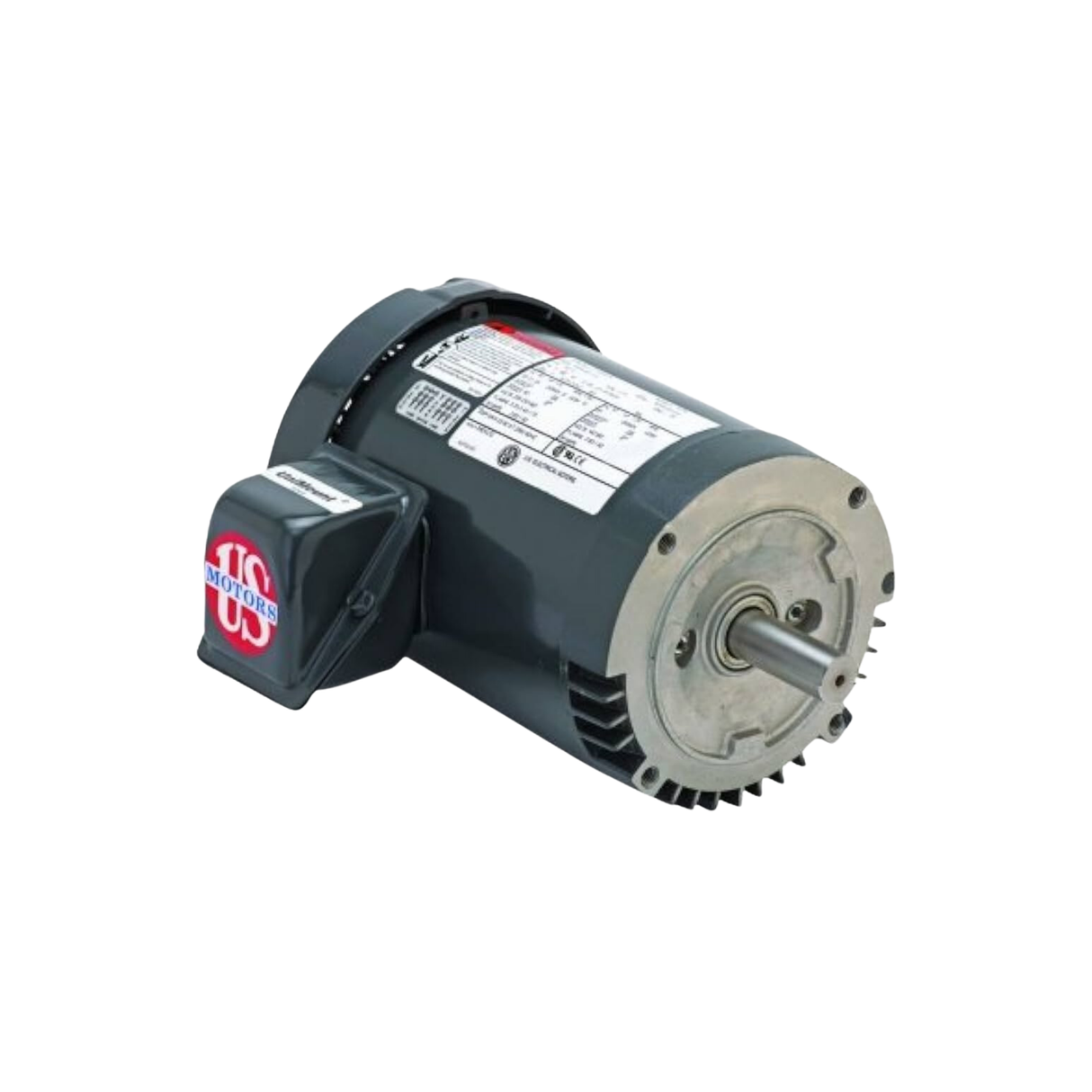

Nidec-US Motors U34S2ACR 208-230/460 VAC 3/4 HP 1750 RPM General Purpose Motor
Have a question? Our team is here to help! Chat with us or call us: 806-763-9323 / If you need Next Day Shipping, call us!
Sign up to be the first to know when it's back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Features:
Extruded aluminum frame (180-280), rolled steel (56-140)
Aluminum end shields with steel bearing inserts
Class F insulation, Class B rise at full load on 60 Hz sine wave power
"CE" mark on nameplate (140 frame and larger)
Oversized diagonally split conduit box
40°C ambient, NEMA® design B performance on 60 Hz sine wave power
50 / 60 Hz on nameplate (180ΓÇô280 frame)
Regreasable shaft-end bearings (180ΓÇô280)
Sealed bearings (56-140), double shielded (180ΓÇô280)
Suitable for Wye-Delta start (250 frame and larger)
Dual voltage ratings suitable for part
Applications: For pumps, fans, compressors, material handling, and other general-purpose applications in damp, dusty or dirty environments
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: U34S2ACR
Product Type: General Purpose Motor
Voltage Rating: 208-230/460 VAC
Frequency Rating: 60 Hz
Current Rating: 1.3 A /2.7 A
Motor Size: 3/4 HP
RPM: 1750
Frame: NEMA 56C
No. of Phase: 3
Rotation: Reversible
Enclosure Type: Totally Enclosed Fan Cooled
Dimensions: 16.0" x 12.85" x 19.55"
Weight: 27.6 lb.
