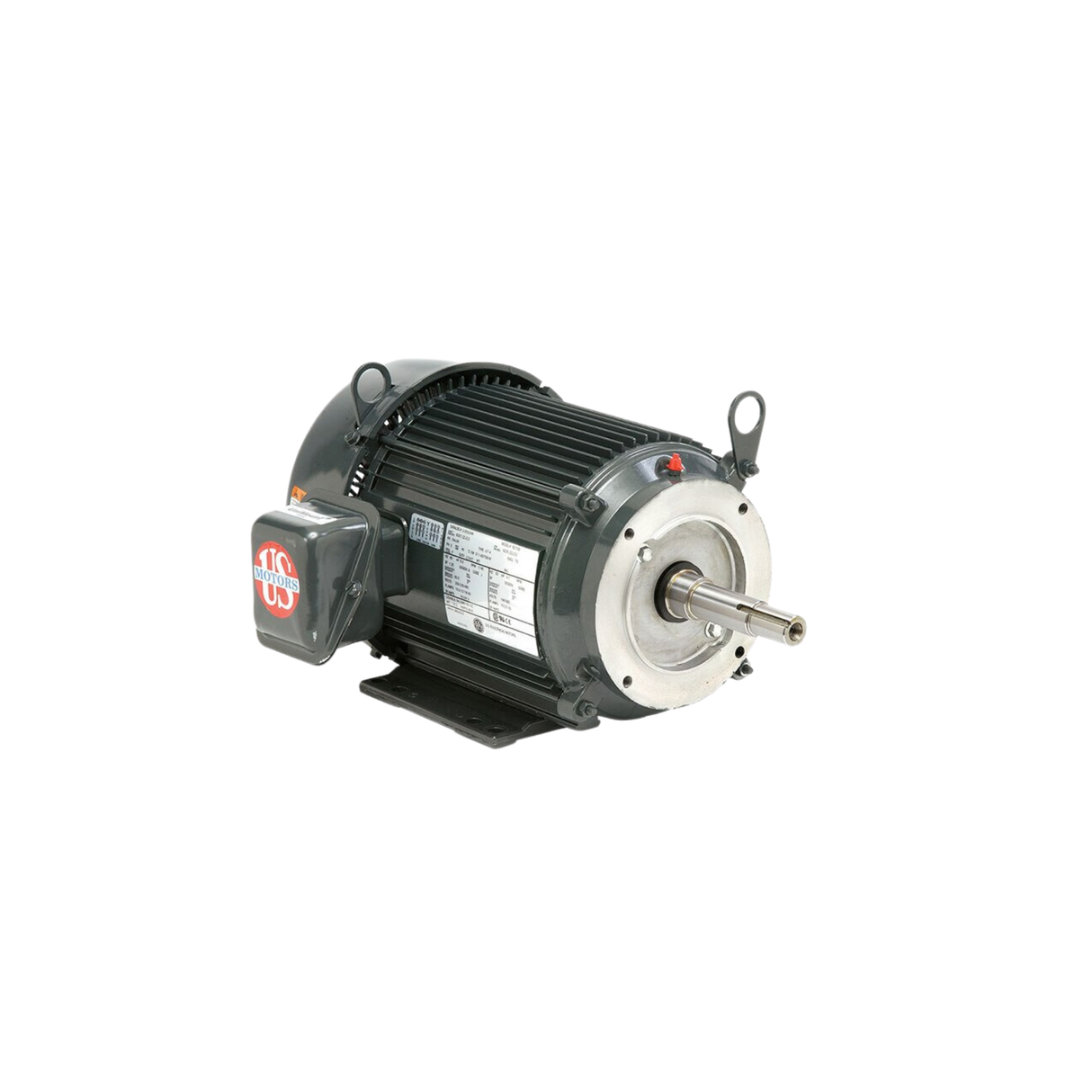

Nidec-US Motors UJ10P1DM 208-230/460 V 3530 RPM 10 HP Close Coupled Pump Motor
Nidec-US Motors UJ10P1DM 208-230/460 V 3530 RPM 10 HP Close Coupled Pump Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Nidec-US Motors UJ10P1DM 208-230/460 V 3530 RPM 10 HP Close Coupled...
Description
Description
Specifications:
Manufacturer: Nidec-US Motors
Manufacturer Part Number: UJ10P1DM
Product Type: Close Coupled Pump Motor
Voltage Rating: 208-230/460 V
Frequency Rating: 50/60 Hz
Current Rating: 24.1 A / 12.0 A
Motor Size: 10 HP
RPM: 3530
Frame: NEMA 215JM
No. of Phase: 3
Rotation: Reversible
Mounting: Horizontal / Foot
Enclosure Type: Totally Enclosed Fan Cooled)
Dimensions: 16.5" x 27.0" x 15.0"
Weight: 109.5 lb.
