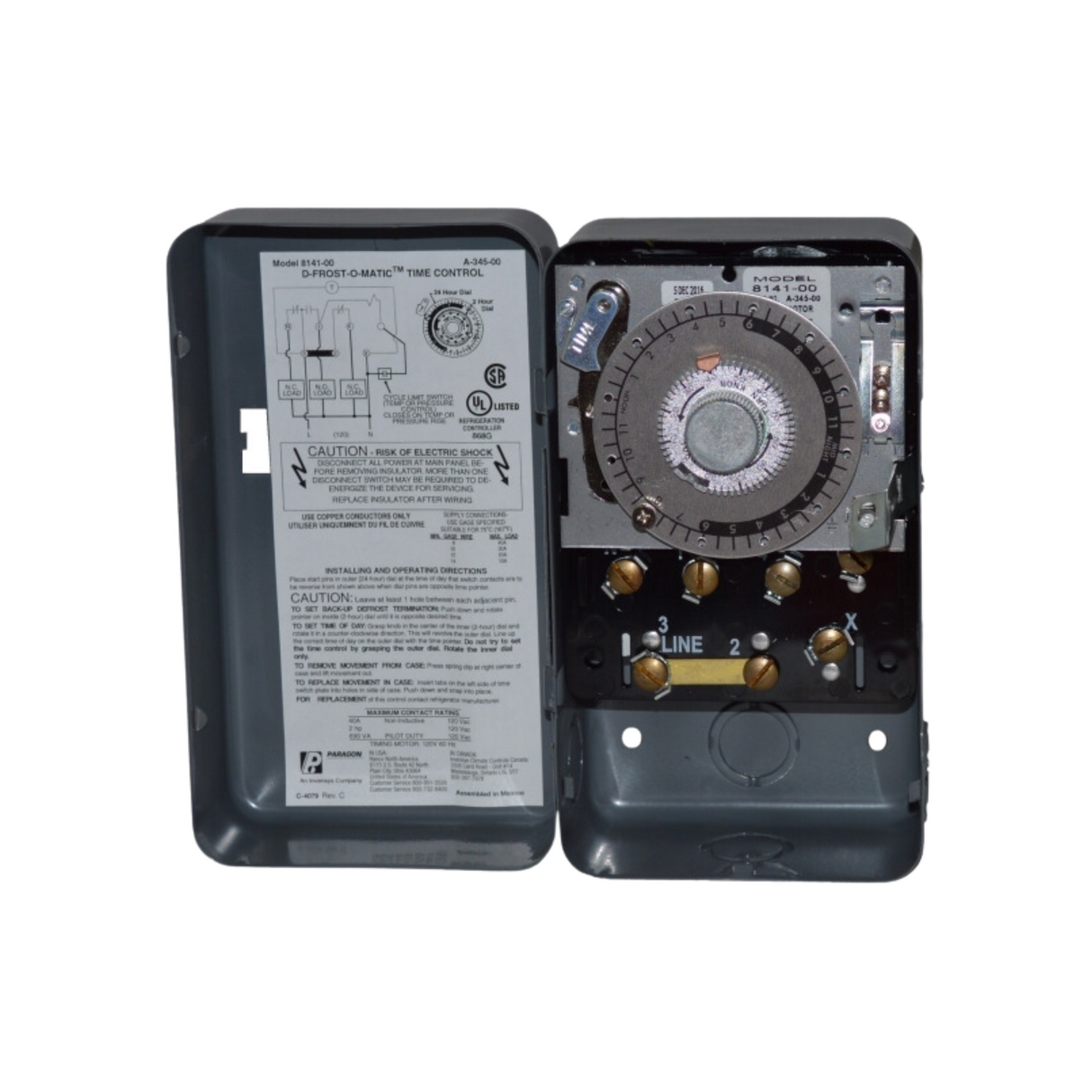

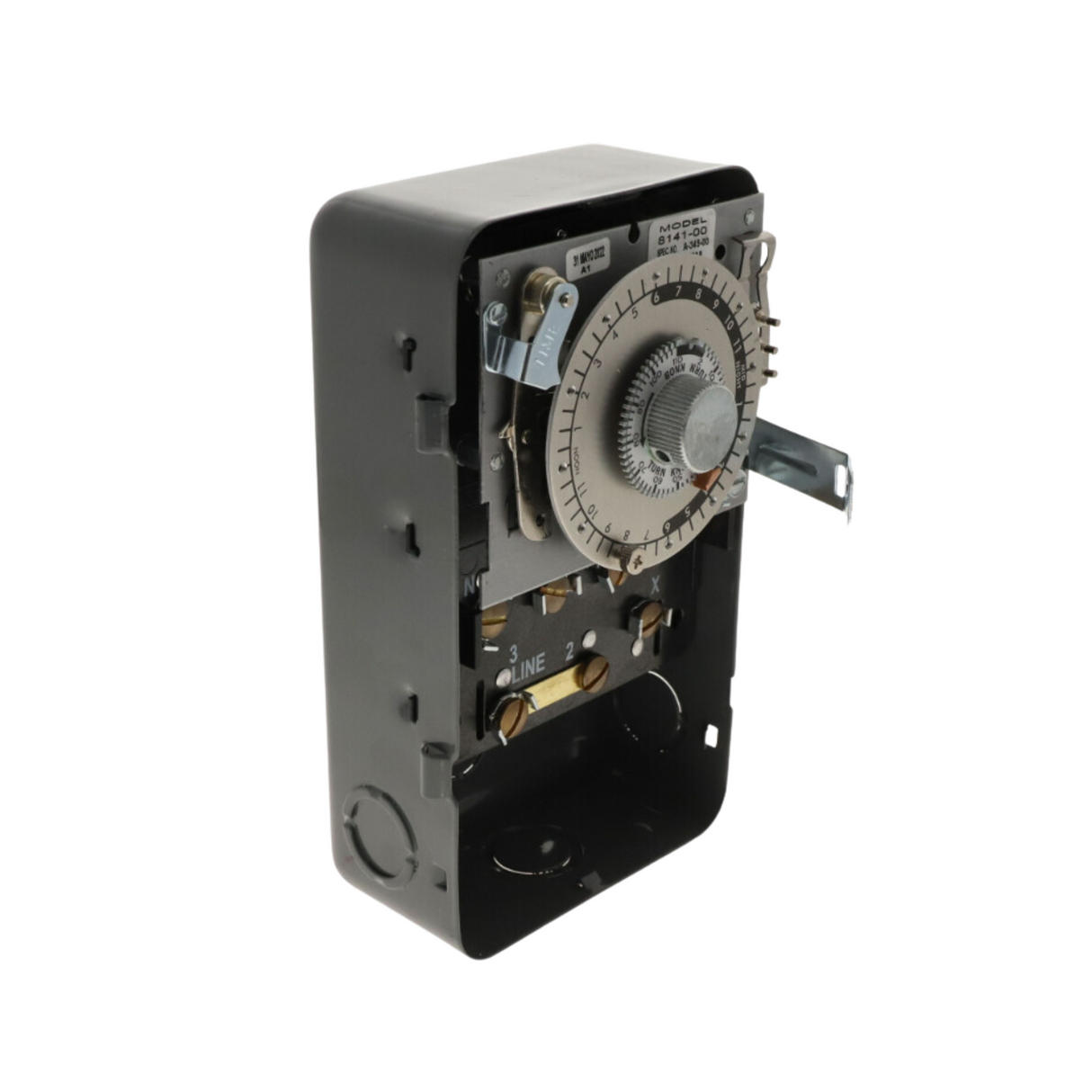

Paragon 8141-00 120 V 40 A Defrost Timer Control

Features:

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

Specifications:

Manufacturer: Paragon
Manufacturer Part Number: 8141-00
Product Type: Defrost Timer Control
Material: Heavy Duty Steel
Voltage Rating: 120 V
Frequency Rating: 50/60 Hz
Current Rating: 40 A
Contact Configurations: 1 Normally Open, 2 Normally Closed
Switch Arrangement for Contacts 1-3: Open
Switch Arrangement for Contacts 2-4: Closed
Switch Arrangements for Contacts 3-N: Closed
Dimension: 4.65" x 9.05" x 4.8"
Weight: 3.02 lb.
