Paragon  |  SKU: D876-99

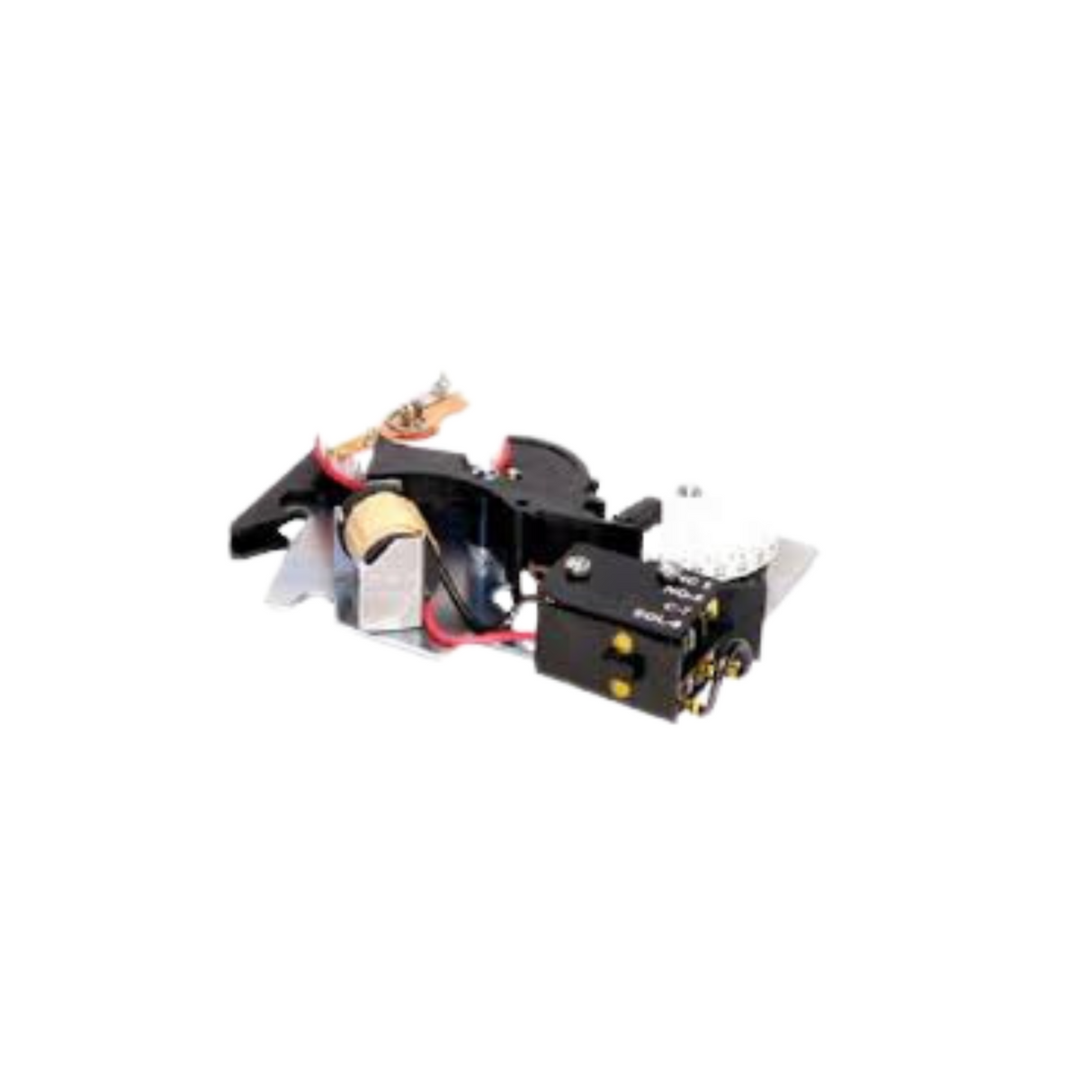

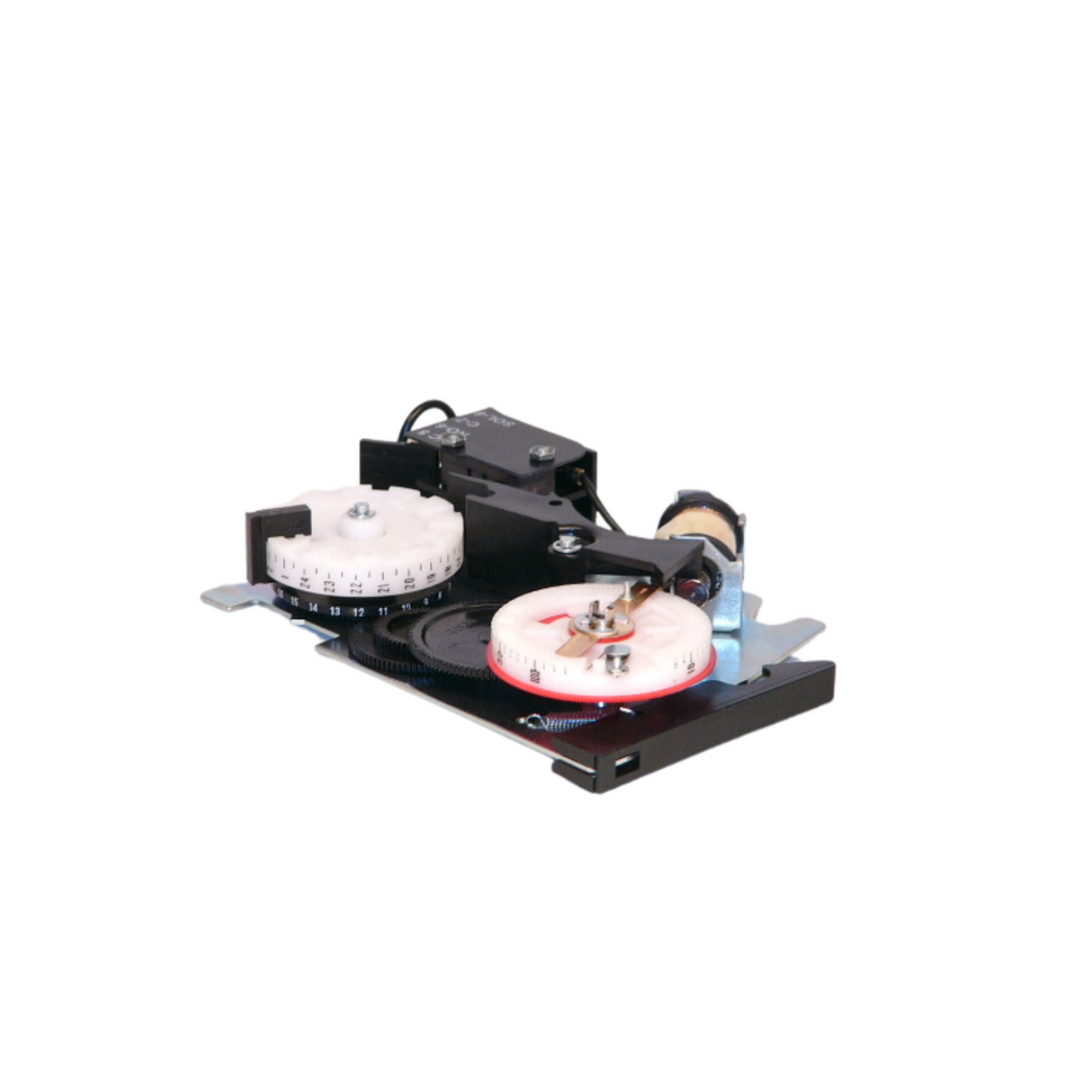

Paragon D876-99 120-240 VAC 10 A Odd Hour Circuit Mod Defrost Timer Control

$271.23

Delivery and Shipping

Fedex ground and freight. Free Shipping on everything!

For questions, call us at 806-763-9323

Description

Features:

Defrost initiation is adjustable from 1-12 operations per circuit, per day; minimum 2 hours required between successive operations
Mechanical defrost termination is adjustable from 6-106 minutes in one-minute increments
Solenoid termination is optional. Instantaneous transfer if solenoid is energized at time of defrost initiation
Two SPDT snap switches per module. 3/16" male push-on switch terminals
Switch rating: 10 Amps, 1/3 HP, 120-240V AC; 345 VA pilot duty
Extra trippers, part number X-7248 (12 per bag). Recognized under the component program of UL and CSA
Ru Listed and CSA Approved

Specifications:

Manufacturer: Paragon
Manufacturer Part Number: D876-99
Product Type: Circuit Mod Defrost Timer Control
Voltage Rating: 120-240 VAC
Current Rating: 10 A
Motor Size: 1/3 HP
Pilot Duty Rating: 345 VA
Timer: Odd Hour
High Pressure (Open High) Cut-Out: 0.75 (0.3)
Dimensions: 7.3" x 4.95" x 2.6"
Weight: 2.0 lb.
