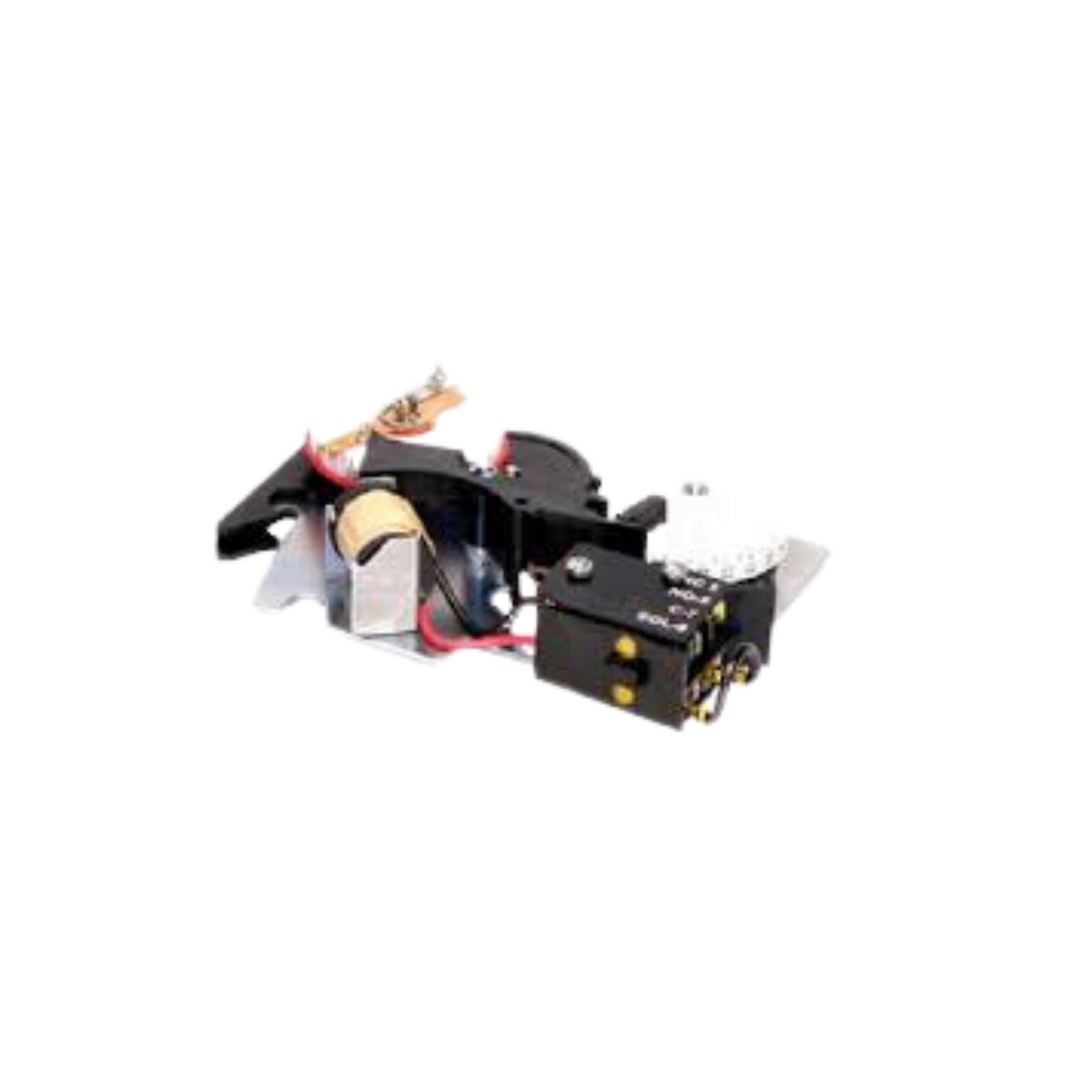

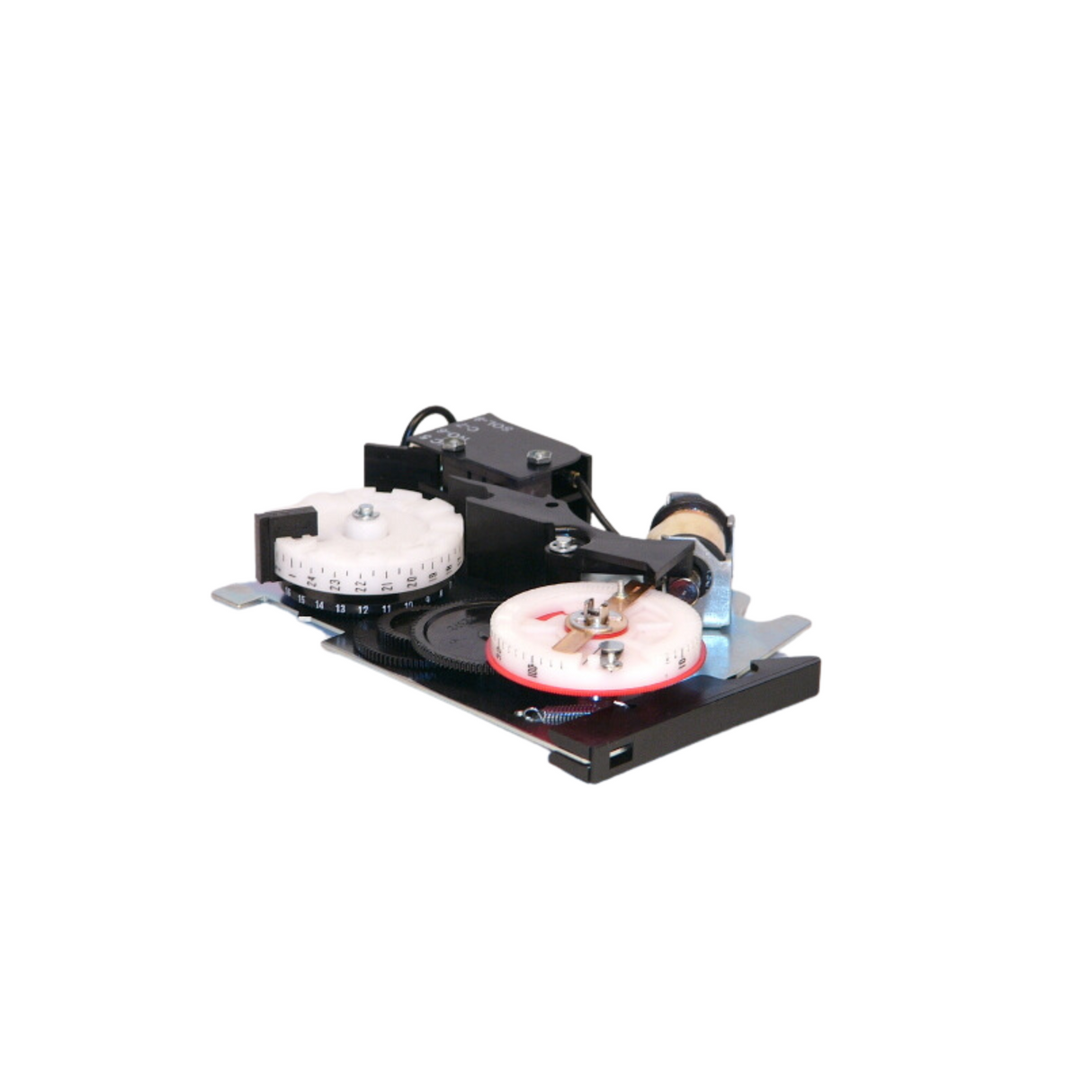

Paragon D877-20 208-240 VAC 60 Hz Odd Hour Defrost Timer with Solenoid

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features:

Defrost initiation is adjustable from 1-12 operations per circuit, per day; minimum 2 hours required between successive operations
Mechanical defrost termination is adjustable from 6-106 minutes in one-minute increments
Solenoid termination is optional
Instantaneous transfer if solenoid is energized at time of defrost initiation
Two SPDT snap switches per module. 3/16" male push-on switch terminals. Switch rating: 10 Amps, 1/3 HP, 120-240V AC; 345 VA pilot duty
Extra trippers, part number X-7248 (12 per bag). Recognized under the component program of UL and CSA
Ru Listed and CSA Approved

Specifications:

Manufacturer: Paragon
Manufacturer Part Number: D877-20
Product Type: Defrost Timer with Solenoid
Voltage Rating: 208-240 VAC
Frequency Rating: 60 Hz
Timer: Odd Hour
High Pressure (Open High) Cut-Out: 1 (0.5)
Dimensions: 4.8" x 7.35" x 2.5"
Weight: 2.0 lb.
