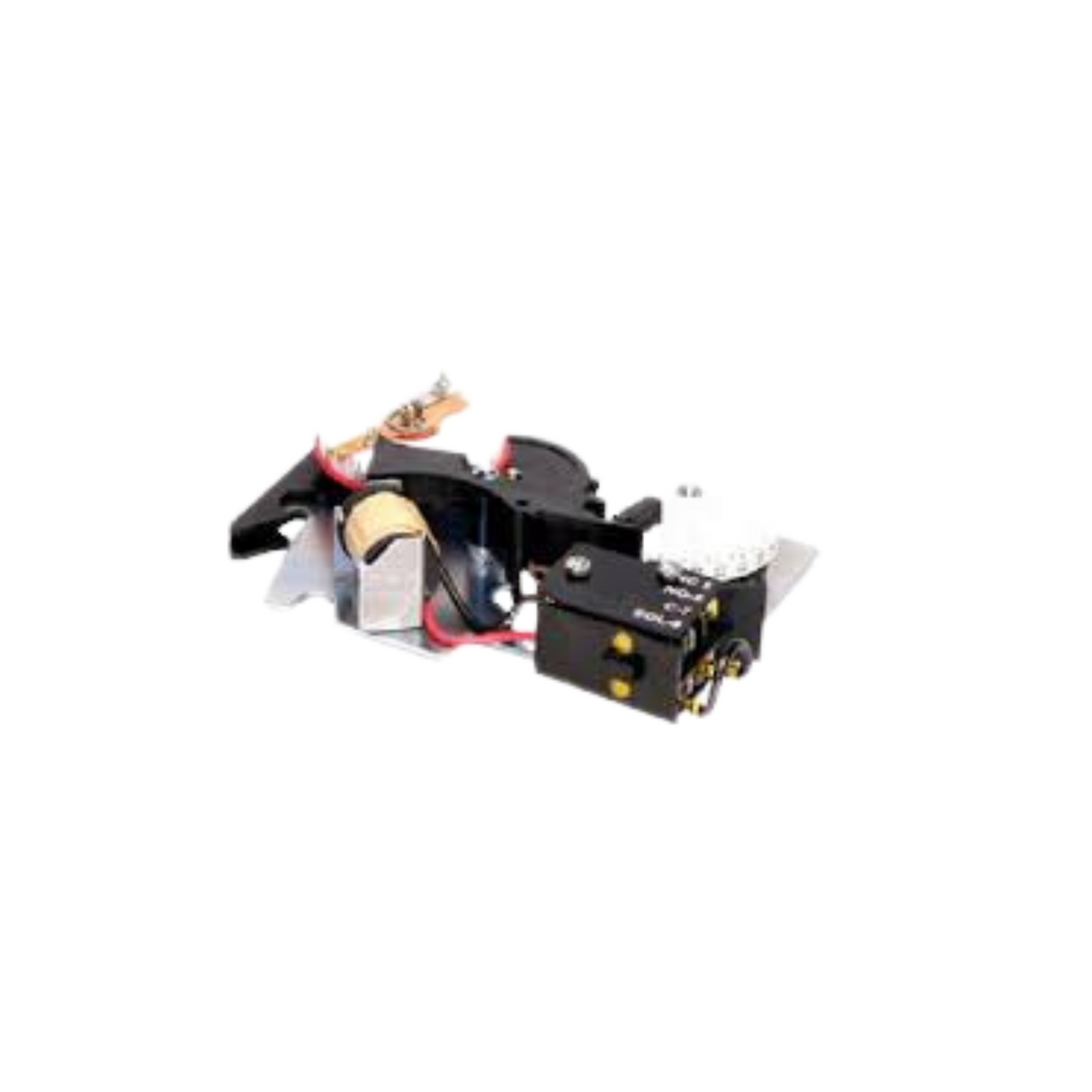

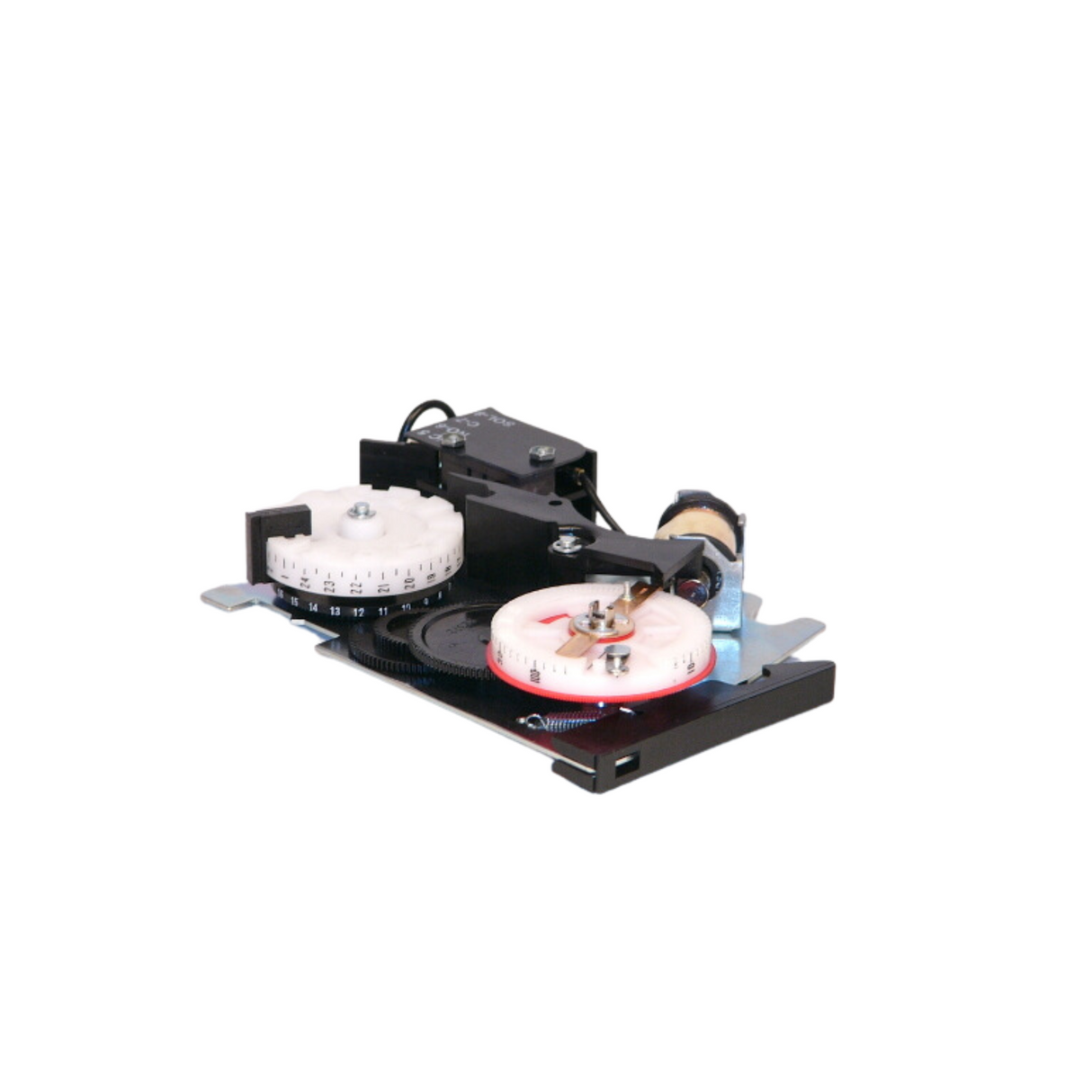

Paragon E877-20 208-240 VAC 60 Hz Odd Half Hour Circuit Mod Defrost Timer with Solenoid

Features:

Defrost initiation is adjustable from 1-12 operations per circuit, per day; minimum 2 hours required between successive operations
Mechanical defrost termination is adjustable from 6-106 minutes in one-minute increments
Solenoid termination is optional. Instantaneous transfer if solenoid is energized at time of defrost initiation
Two SPDT snap switches per module. 3/16" male push-on switch terminals
Switch rating: 10 Amps, 1/3 HP, 120-240V AC; 345 VA pilot duty
Extra trippers, part number X-7248 (12 per bag). Recognized under the component program of UL and CSA
Ru Listed and CSA Approved

Specifications:

Manufacturer: Paragon
Manufacturer Part Number: E877-20
Product Type: Circuit Mod Defrost Timer with Solenoid
Voltage Rating: 208-240 VAC
Frequency Rating: 60 Hz
Timer: Odd Half Hour
High Pressure (Open High) Cut-Out: 1 (0.5)
Dimensions: 5.1" x 7.45" x 2.5"
Weight: 2.0 lb.
