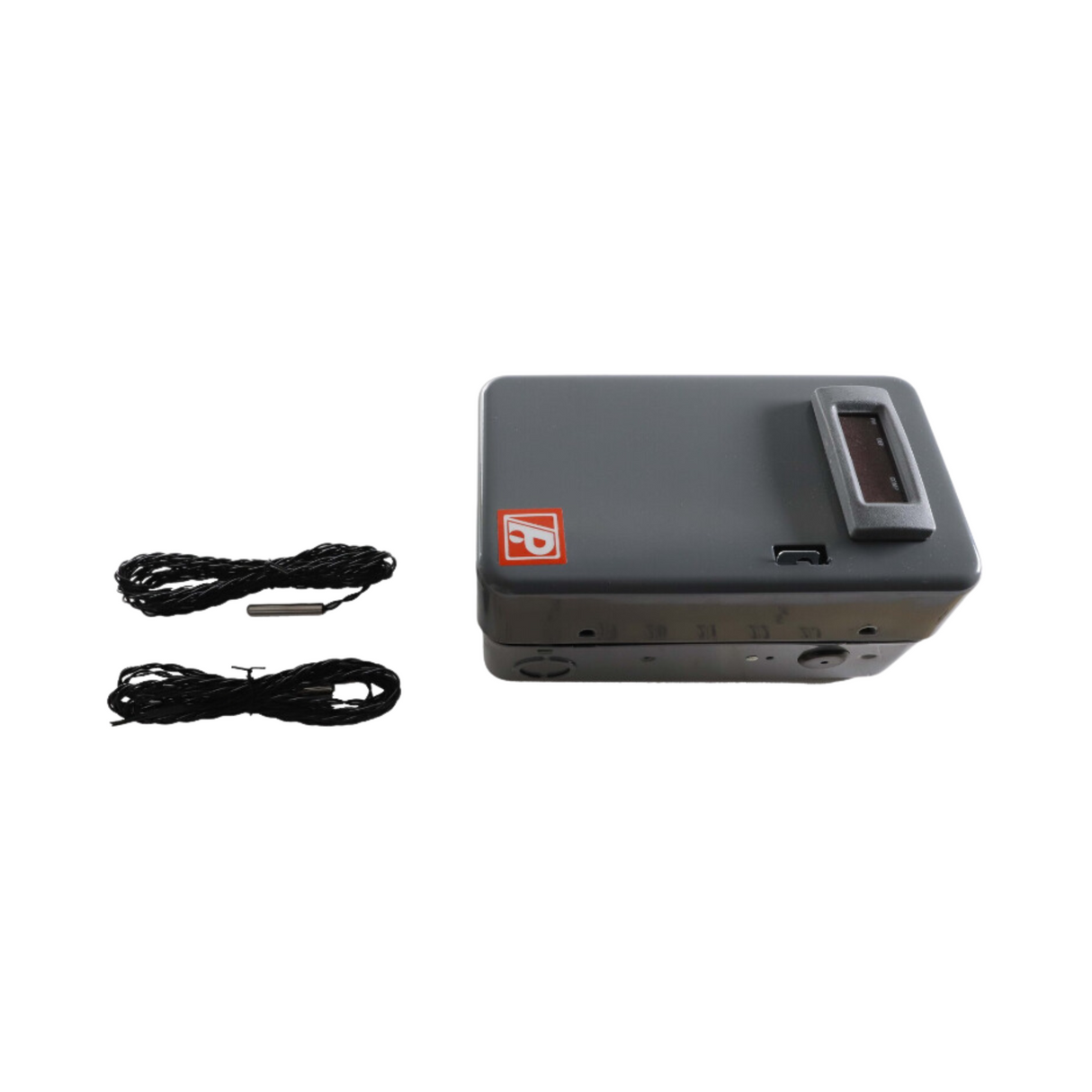

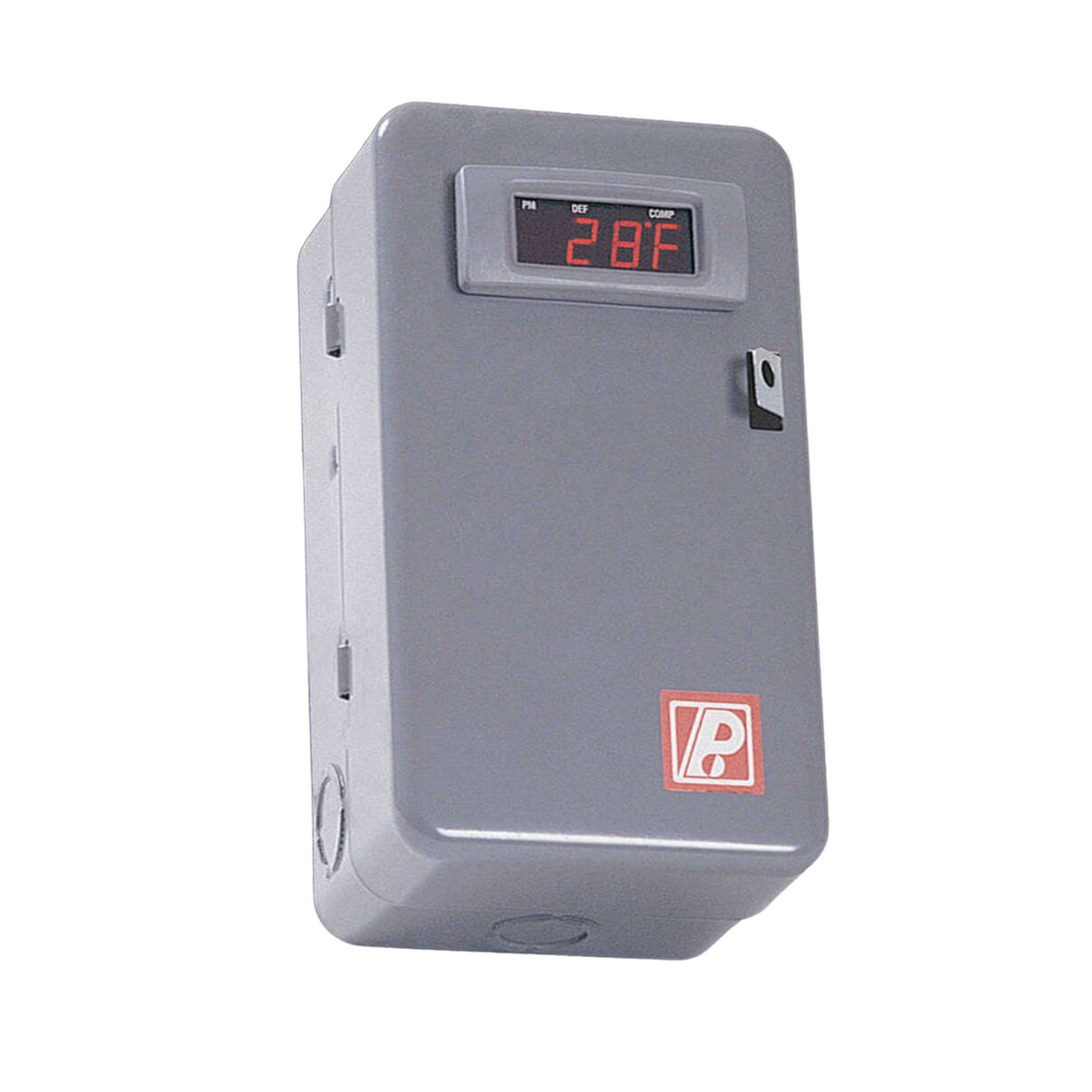

Paragon ERC2-212111-370 120/208-240 VAC 50/60 Hz NTC Thermistor Electronic Temperature Defrost Control

The Paragon ERC-2 Electronic Refrigeration Control is a microprocessor-based electronic controller designed to manage both the temperature and the defrost functions of a commercial refrigeration unit.

Features:

Real-time clock for defrost control
Integrated control
Temperature control function
4 relay outputs 120-240V AC @ 50/60 Hz
Compressor
Evaporator fan
Alarm
Digital display module
Keypad programming
Two temperature sensors (supplied)
Refrigeration cycle
Safe mode operation
Continues operation based on performance average in the event sensor fails
Power failure recovery
All settings retained in memory
Time-of-day carried over for 100 hours

Specifications:

Manufacturer: Paragon
Manufacturer Part Number: ERC2-212111-370
Product Type: Electronic Temperature Defrost Control
Voltage Rating: 120/208-240 VAC
Frequency Rating: 50/60 Hz
Defrost Cycles: 1 to 8 per Day or 1 Every 48 Hours
Temperature Sensor: NTC Thermistor
Temperature Range: -40 to 60 Degrees F
Ambient Temperature: -40 to 122 Degrees F
Ambient Humidity: 0 to 95% Relative Humidity (Non-condensing)
Enclosure: NEMA 1
Dimensions: 7.7" x 9.25" x 4.75"
Weight: 3.15 lb.
