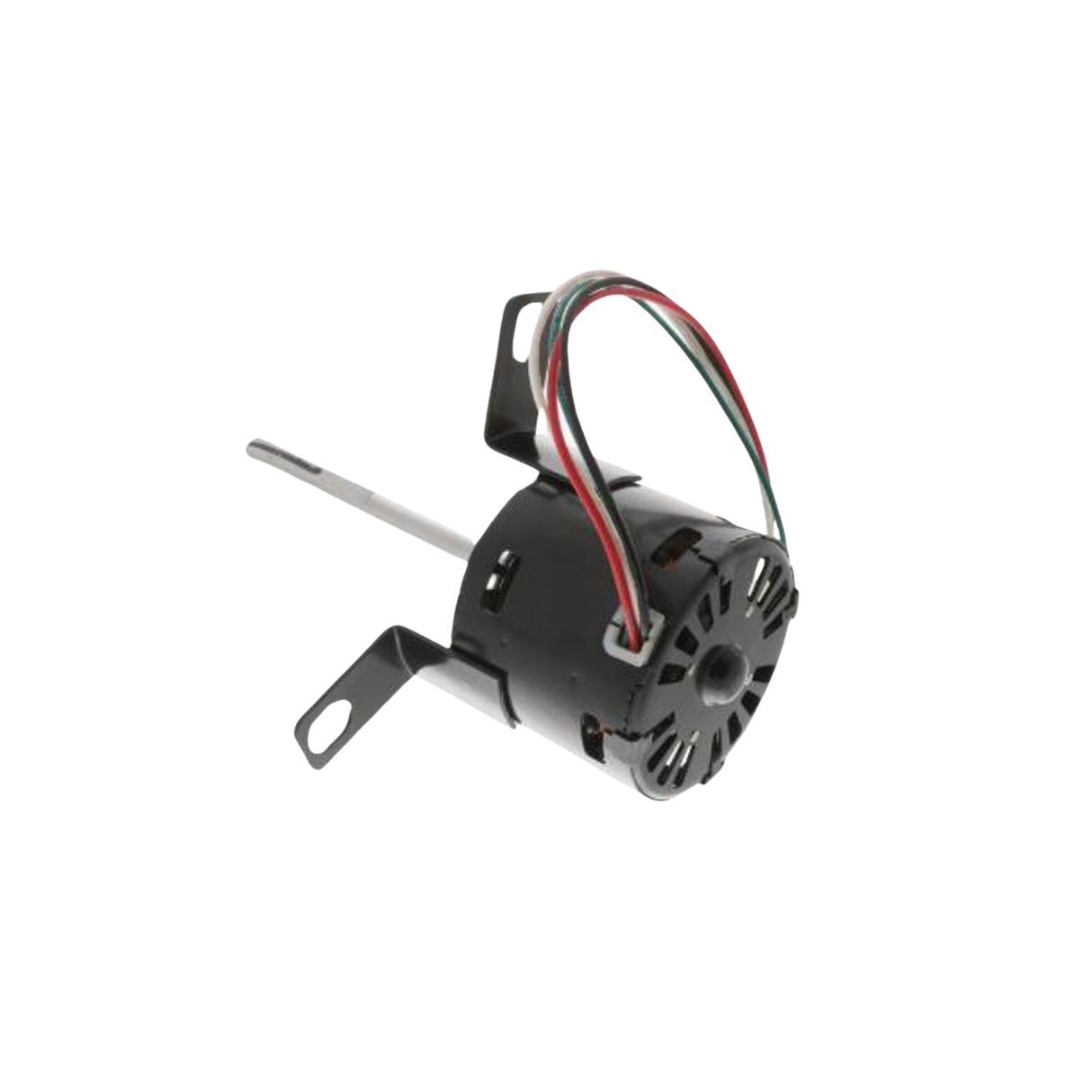

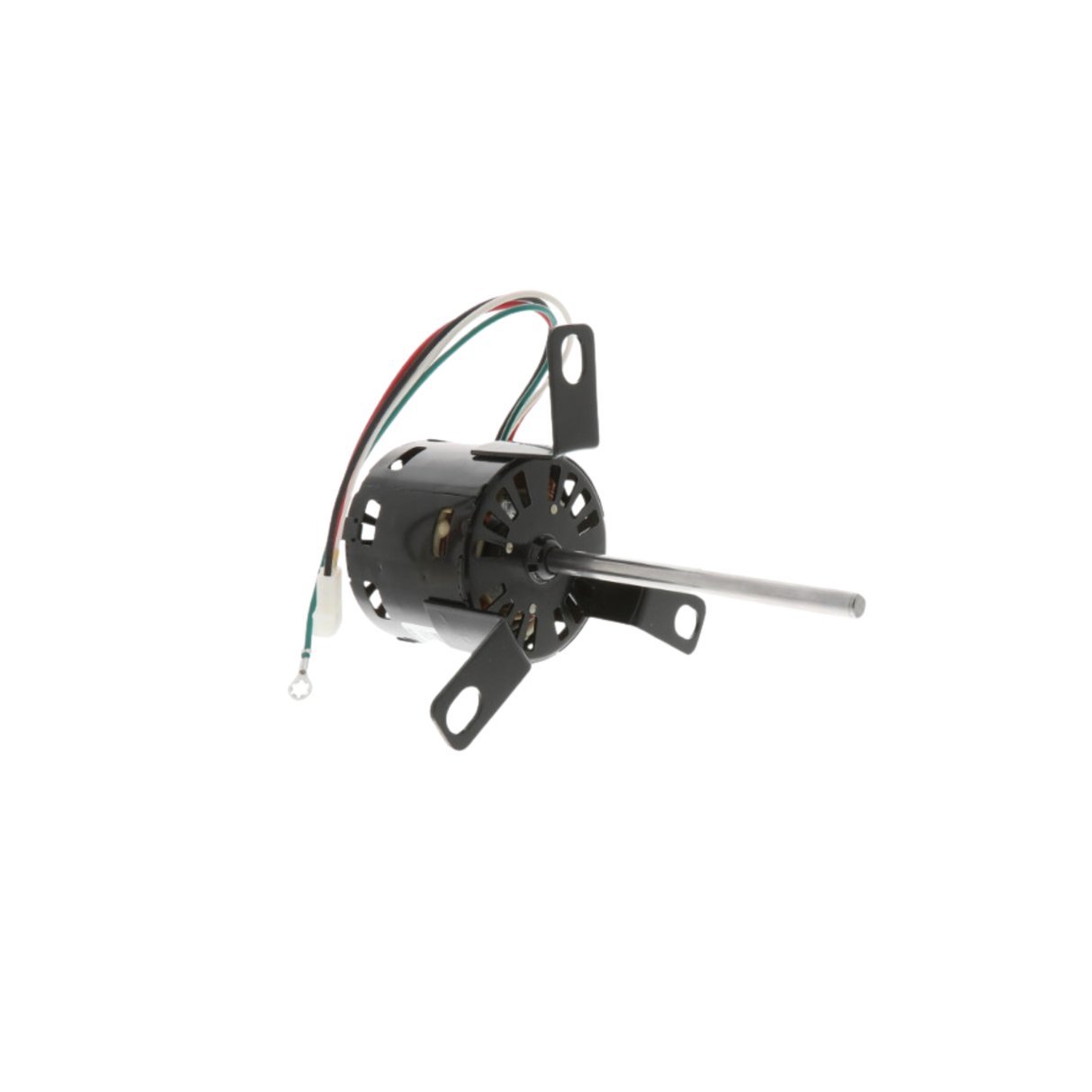

PennBarry 56343-0 115 V 60 Hz 1550 RPM 0.27 HP Electric Motor

PennBarry 56343-0 is a replacement Blower Fan Motor for Zephyr Ceiling and In-Line Centrifugal Fan. The motor operates at 2-Speed with a rotation speed of 1350 RPM and 1550 RPM. It runs at a voltage of 115 V and 0.027 Horsepower. This is compatible with Zephyr Ceiling & In-Line Fan Assembly Models Z6S/H, Z3H, and Z5H. PennBarry Blower Fan Motor is a part of the blower assembly that gives power to the blower wheel for air distribution. It is a type of motor which is used for HVAC applications. Model No. Shaft Dimension Motor Diameter RPM Rotation Amperage 56343-0 3/8" x 5 9/16" 3.3" 1550/1350 Clockwise 115 V1.4/.6 Amps

Specifications:

Manufacturer: PennBarry
Manufacturer Part Number: 56343-0
Product Type: Electric Motor
Material: Copper
Voltage Rating: 115 V
Frequency Rating: 60 Hz
Motor Size: 0.27 HP
Motor Speed: 2
RPM: 1550
No. of Phase: 3
Dimensions: 12.25" x 12.0" x 15.95"
Weight: 22.0 lb.
