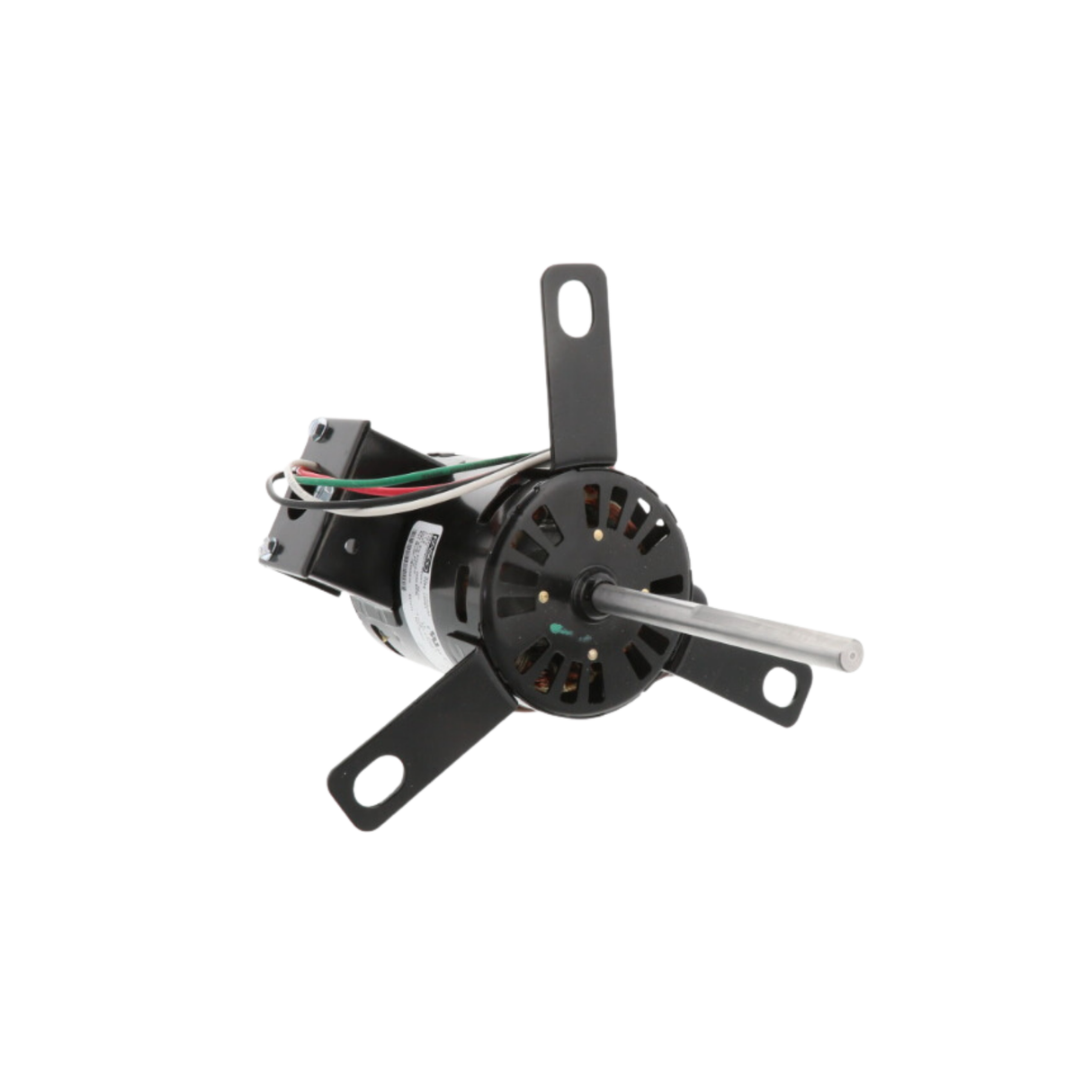

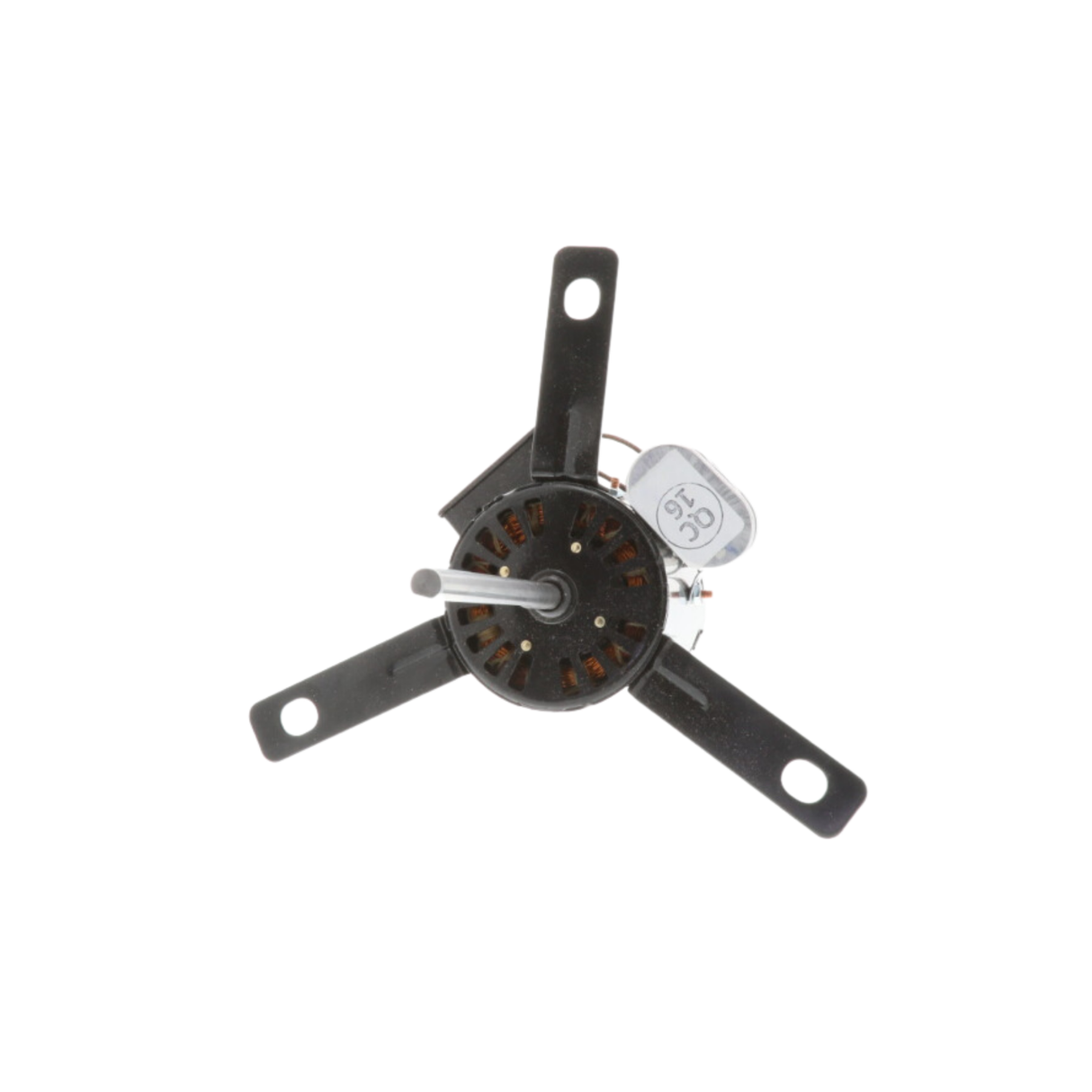

PennBarry 67012-0 115 V 1.6 A 1750 RPM 0.08 HP Clockwise Electric Motor

The PennBarry 67012-0 is a two-speed electric motor replacement designed for use in a variety of HVAC applications, including as air conditioners, ventilation systems, and refrigeration equipment. This essential component ensures effective functioning at two selectable speeds by acting as the driving power behind numerous system functions. Consider a motor that has movable gears that let you adjust an appliance's speed. Operating similarly, but only in HVAC equipment that is compatible, is the 67012-0. The internal parts of the motor produce a revolving magnetic field when they are powered on. When the motor is set to its highest speed, this field interacts with the rotor, a cylindrical part of the motor, causing it to spin at 1750 revolutions per minute (RPM).

Specifications:

Manufacturer: PennBarry
Manufacturer Part Number: 67012-0
Product Type: Electric Motor
Voltage Rating: 115 V
Current Rating: 1.6 A
Motor Size: 0.08 HP
Motor Speed: 2
RPM: 1750
Shaft Diameter: 3/8" x 4 5/8"
Rotation: Clockwise
Dimensions: 10.85" x 11.95" x 12.65"
Weight: 22.0 lb.
