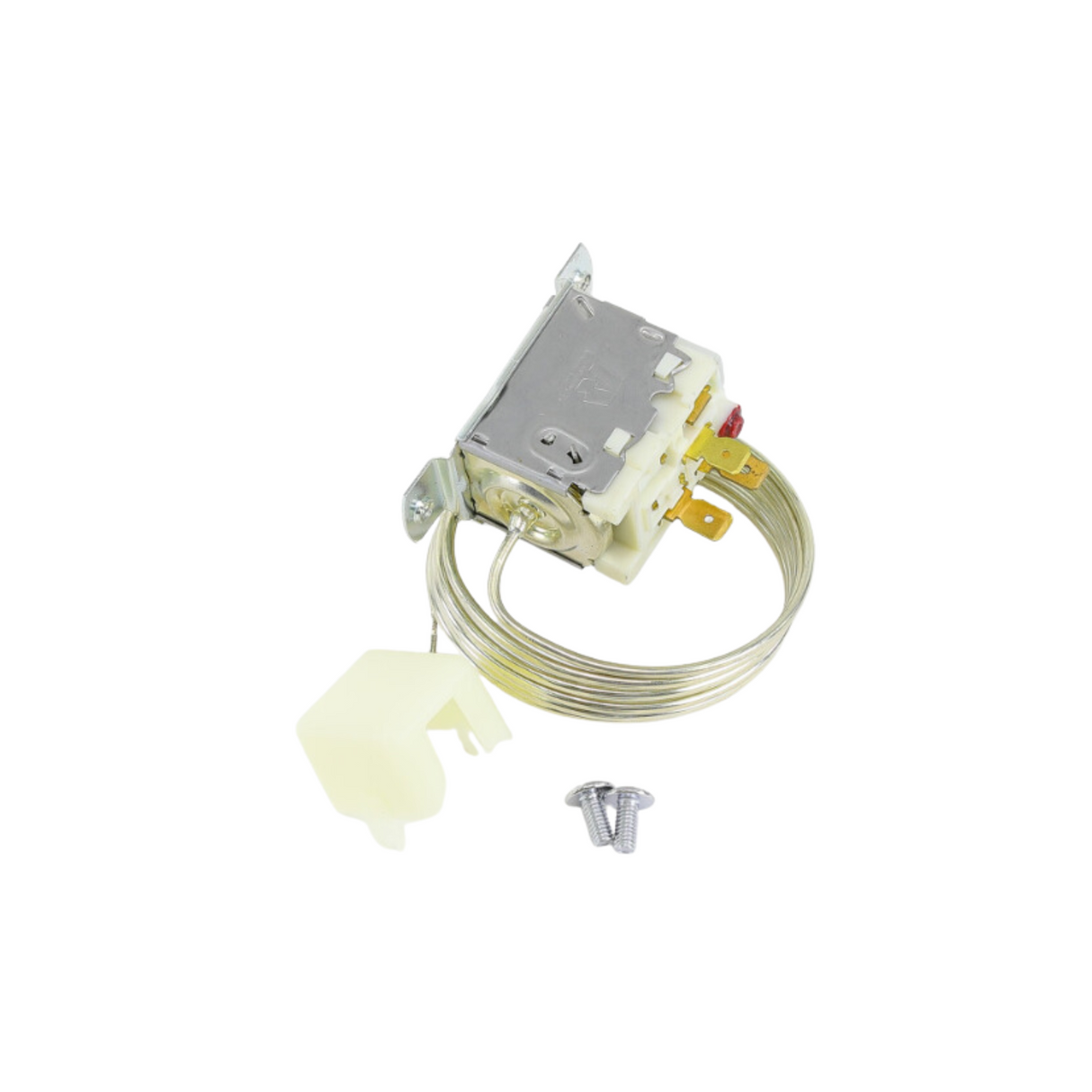

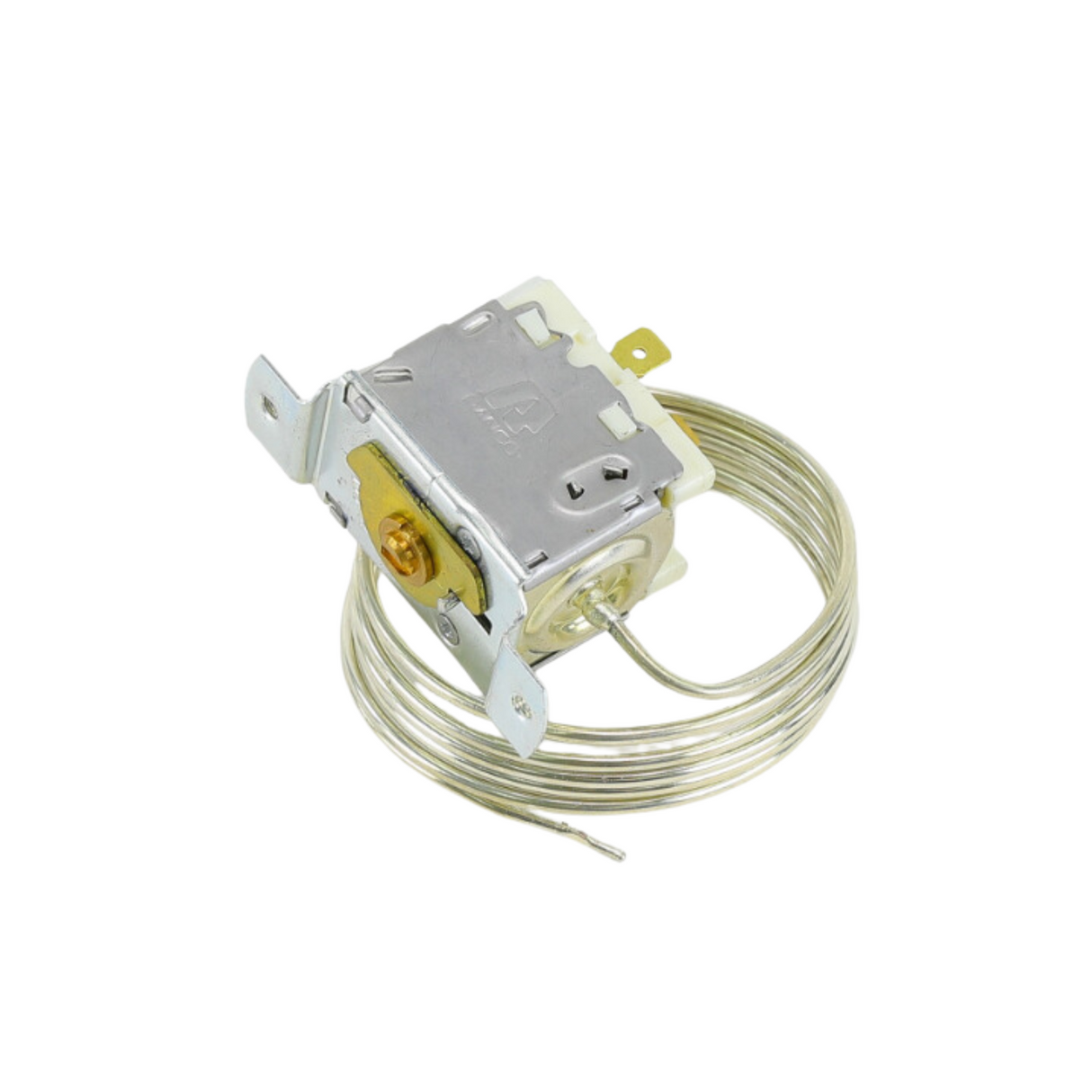

Ranco A22-1129 48" SPDT Ice Machine Bin Level Control
Ranco A22-1129 48" SPDT Ice Machine Bin Level Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Features:
Laser-welded stainless steel bellows
Fixed or adjustable temperature settings
High-amperage contacts
Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing elements
Constant On or Off positions available
Choice of mounting brackets, adjustment ranges and cams, and slotted or flatted shafts
Standard 1/4” quick-connect terminals with optional screw terminals
Specifications:
Manufacturer: Ranco
Manufacturer Part Number: A22-1129
Product Type: Ice Machine Bin Level Control
Voltage Rating: 120/240 V
Current Rating: 20 A
Capillary Length: 48"
Normal On-Off Range: 35 to 51 Degrees F
Differential: 6 Degrees F
Switch Type: SPDT
Dimensions: 4.15" x 4.95" x 2.65"
Weight: 0.3 lb.
