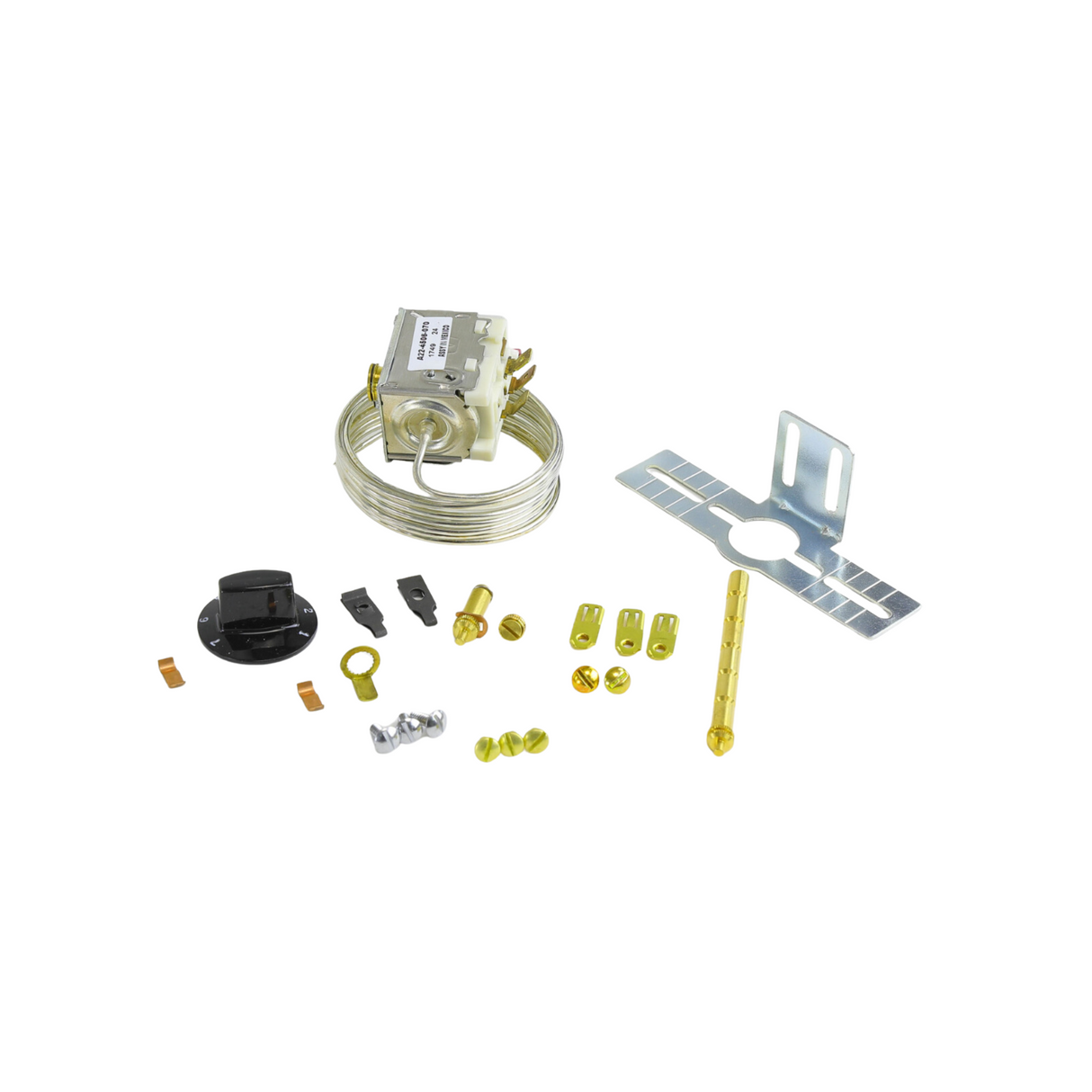

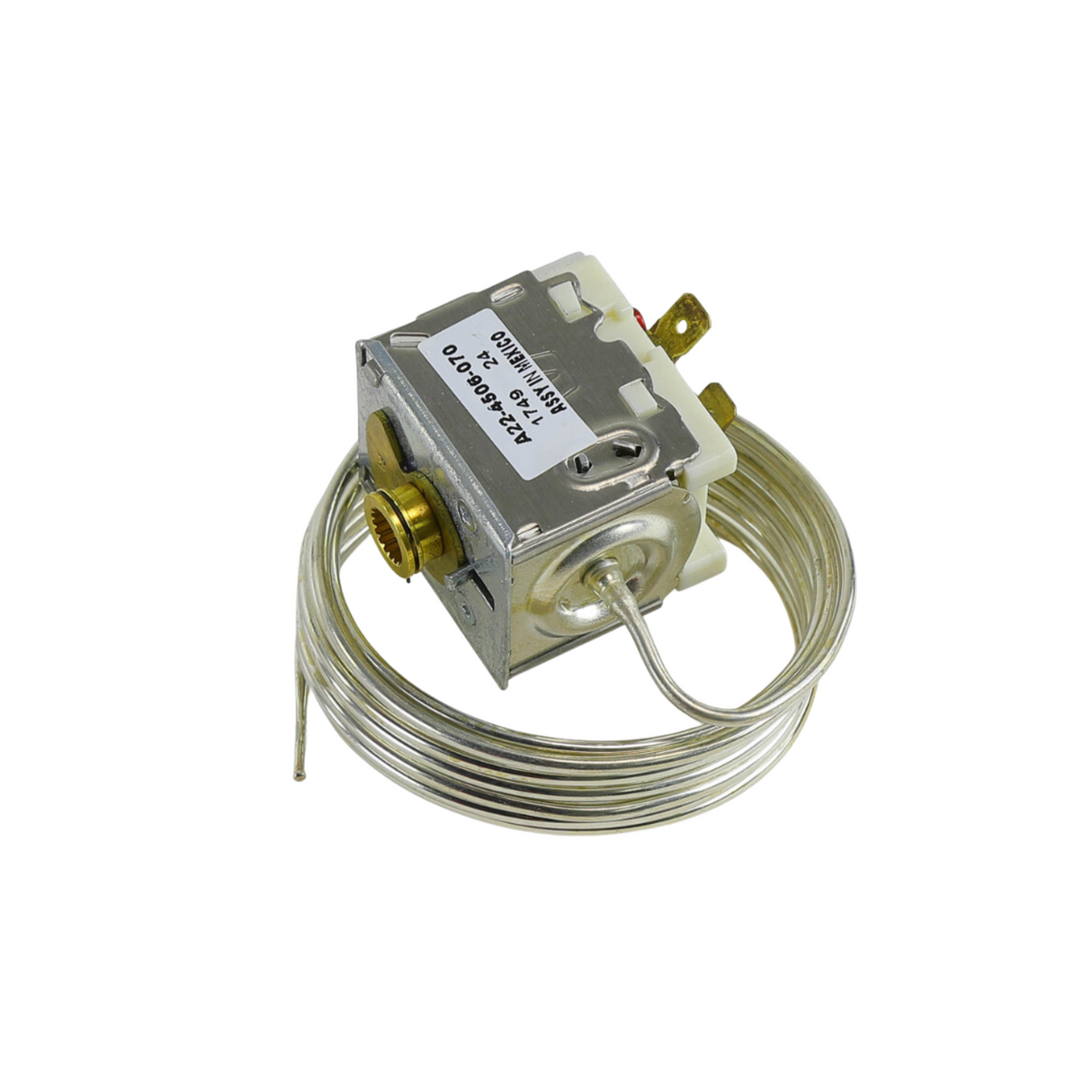

Ranco A22-4506 72" SPDT Ice Harvest Control
Ranco A22-4506 72" SPDT Ice Harvest Control is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Ranco A22-4506 72" SPDT Ice Harvest Control
Description
Description
Features:
Laser welded stainless steel bellows
Fixed or adjustable temperature settings
High amperage contacts
Pneumatic action provided by capillary tube filled with vapor, or by capillary tube with bulb sensing elements
Constant On or Off positions available
Choice of mounting brackets, adjustment bands and cams, and slotted or flat shafts
Standard 1/4" quick-connect terminals with optional screw terminals
Specifications:
Manufacturer: Ranco
Manufacturer Part Number: A22-4506
Product Type: Ice Harvest Control
Capillary Length: 72"
Temperature Rating: -19 to 22 Degrees F
Differential: 8 Degrees F
Switch Type: SPDT
Dimensions: 4.1" x 5.1" x 2.6"
Weight: 2.0 lb.
