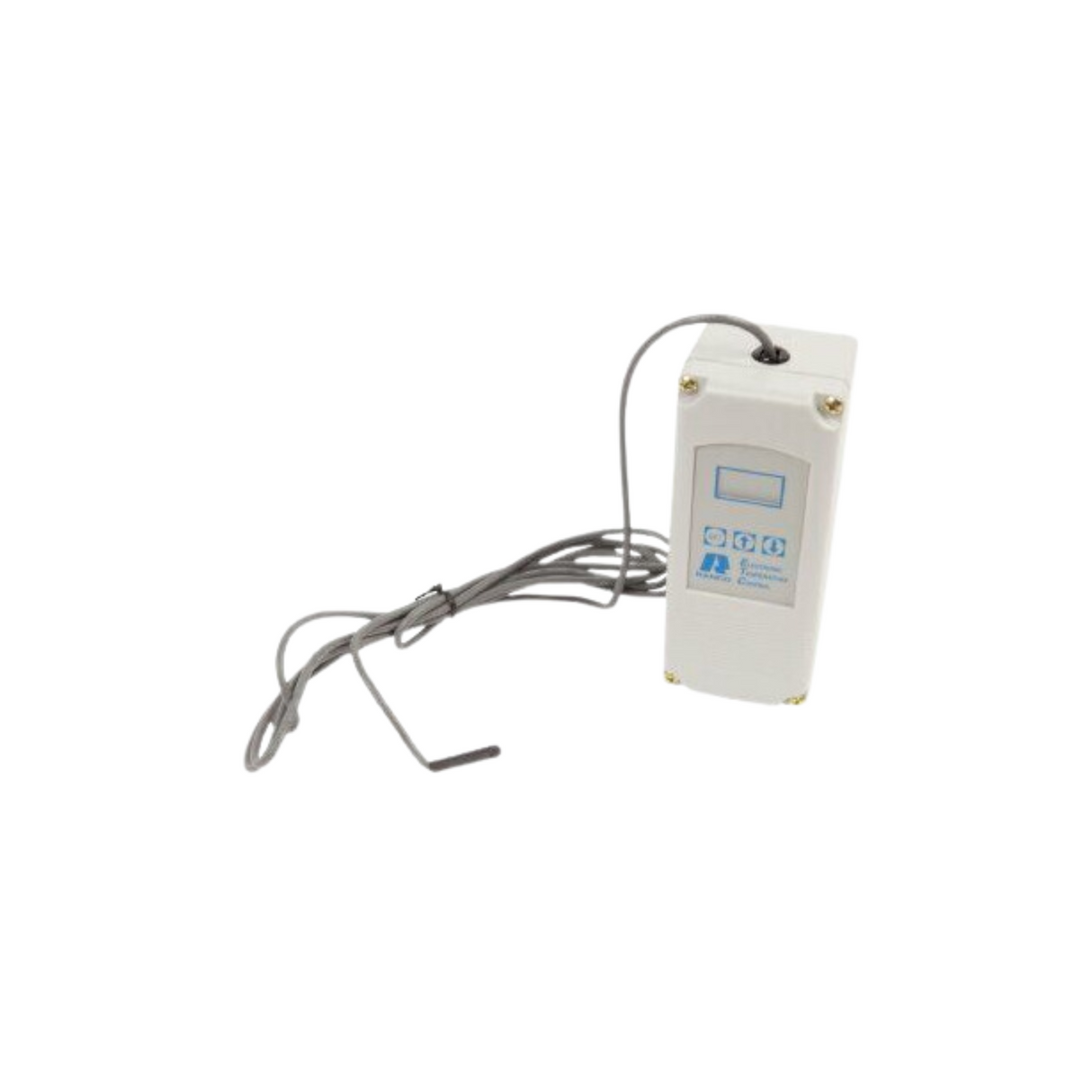

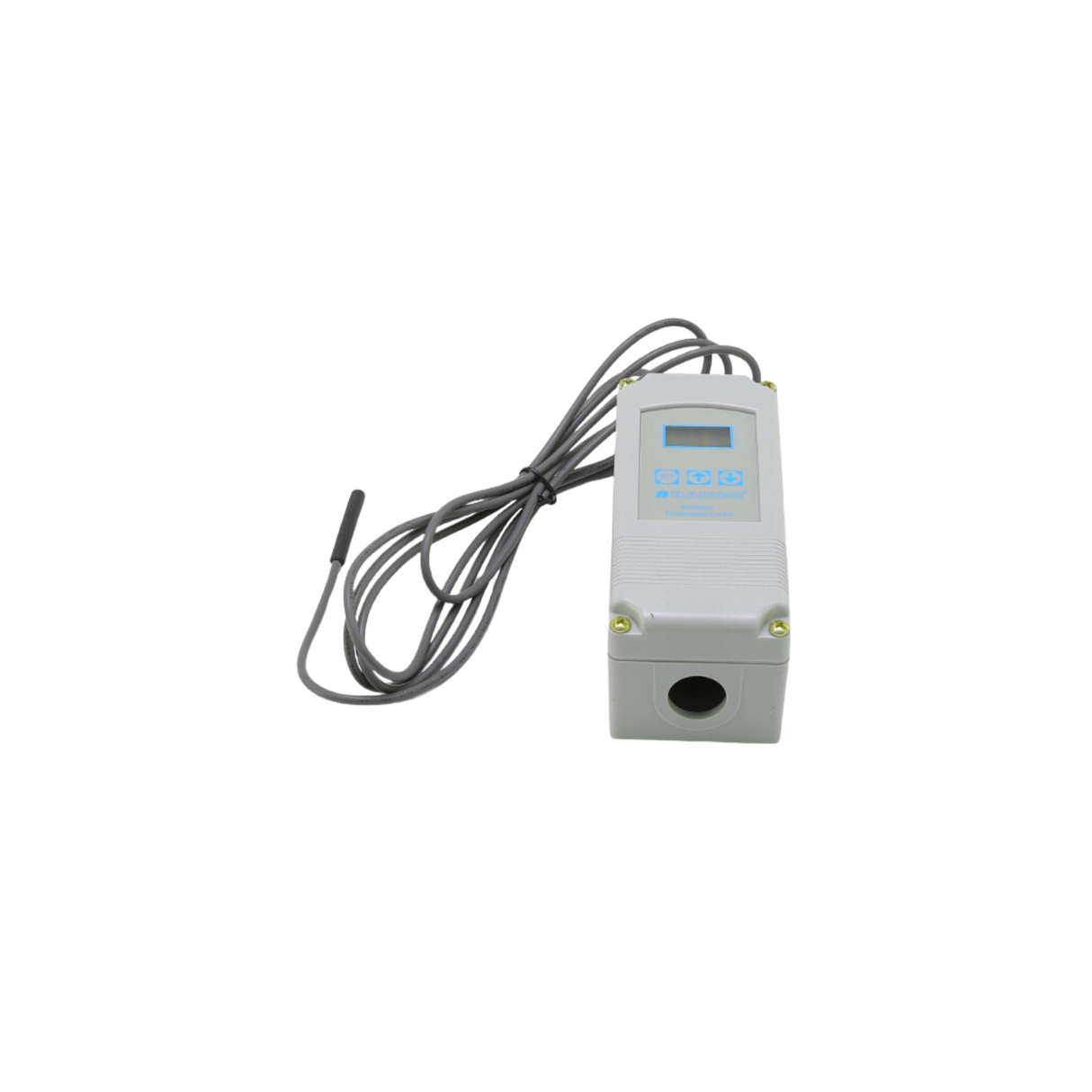

Ranco ETC-212100-000 SPDT Electronic Temperature Control

Features:

Wide temperature range (-30┬░F to 220┬░F [-34.4┬░C to 104.4┬░C])
Wide differential adjustment (1┬░F to 30┬░F [-17┬░C to -1┬░C])
LCD readout of sensor temperature, control settings and relay status
High amperage output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC), single stage
EEPROM memory retains control settings during periods of power failure
Keyboard lock to prevent end user from changing settings
8 sensor wire can be extended up to 400 feet using 18 or 22 gauge thermostat wire
Easy installation in four steps
1 HP heavy duty relay
Selectable heating/cooling modes in ┬░F or ┬░C
One and two stage models
NEMA 1 enclosure and cover
NEMA 4X models available

Specifications:

Manufacturer: Ranco
Manufacturer Part Number: ETC-212100-000
Product Type: Electronic Temperature Control
Voltage Rating: 24 V
Temperature range: -30 to 220 Degrees F
Differential: 1 to 30 Degrees F
No. of Stages: 2
Switch Type: SPDT
Enclosure: NEMA 1
Dimensions: 9.1" x 3.75" x 2.8"
Weight: 3.0 lb.
