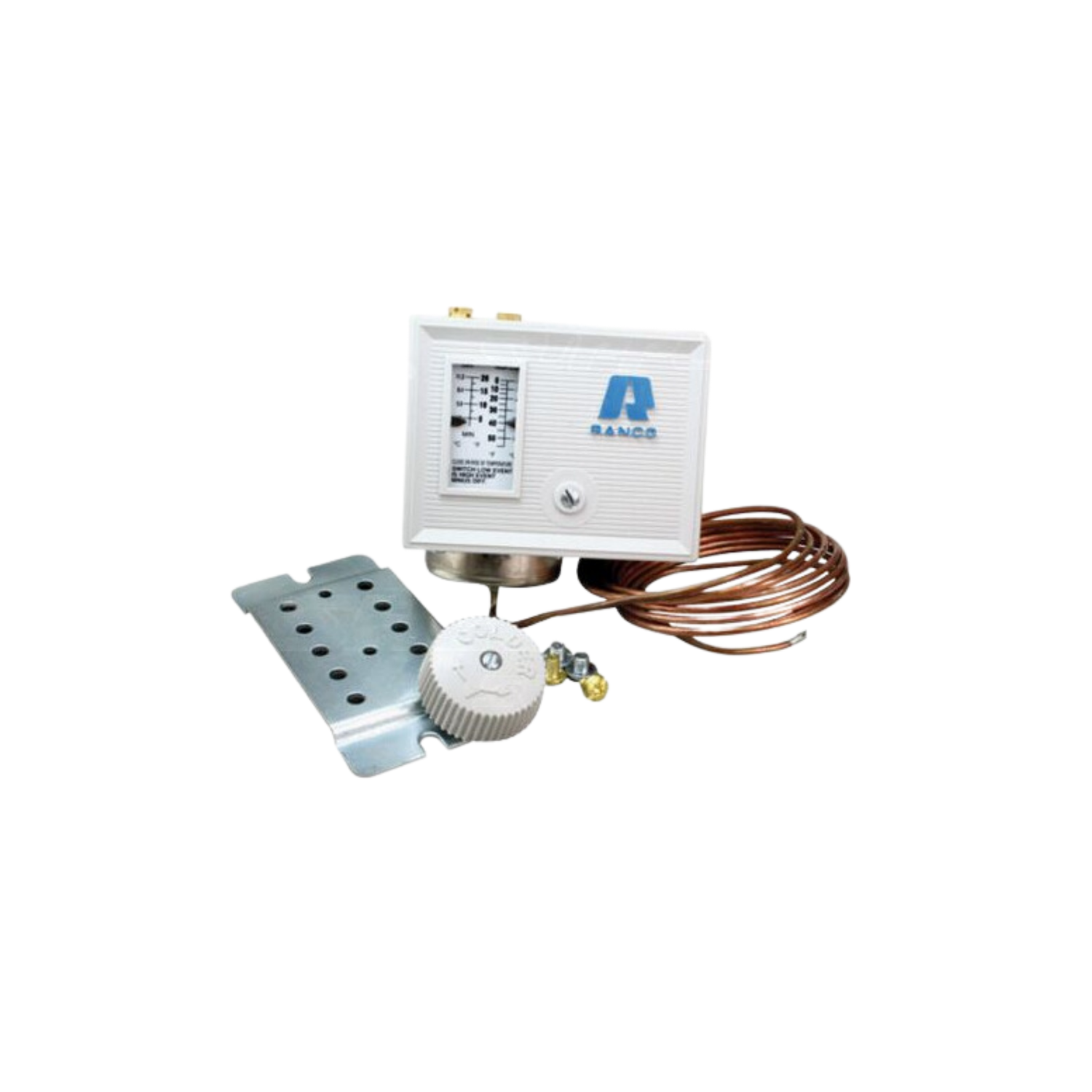

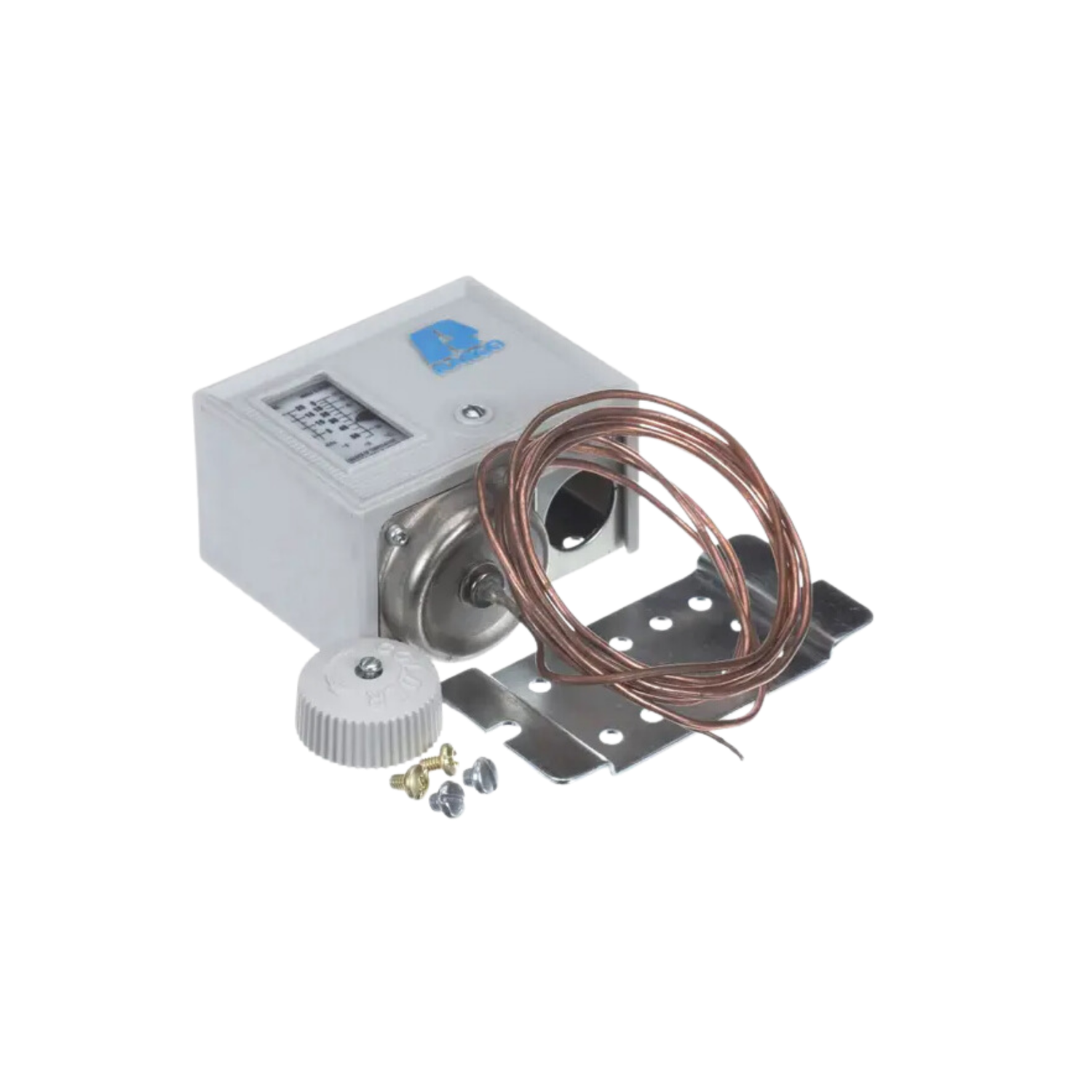

Ranco O10-1409 72" SPST Medium Temperature Control

Features:

Recognizing The Need For Flexibility In Design Of Refrigeration Equipment, These Controls Offer A Wide Selection For Such Products As Self-Contained Refrigerators, Freezers, Coolers, Walk-In Units, and Refrigeration Display Cases.
Maximum Adjustment Accuracy with 7 Revolution Range Adjustment Screws
Nema 1 Enclosure with Non-Conductive Cover
Front-Located Captive Cover Screw
Large Easy-To-Read Scale Plate
Universal Mounting and Compact Design
Laser-Welded Bellows For Extended Life
The O60, Which Uses The Industrys Most Advanced Sensing Element Technology, Has These Additional Features:
Virtually Unaffected By Ambient Temperature
10 Times The Setting Sensitivity Of Most Other Wide Range Controls
Gas-Filled, Nonposition-Sensitive Bulb
Adjustable Differential
72" Remote Bulb Capillary (0 To 55 ┬░F) *Spst Switch Opens Low
Universal Mounting and Compact Design

Specifications:

Manufacturer: Ranco
Manufacturer Part Number: O10-1409
Product Type: Medium Temperature Control
Capillary Length: 72"
Differential: 3 to 20 Degrees F
Temperature Range: 0 to 55 Degrees F
Switch Types: SPST
Dimensions: 4.3" x 6.7" x 2.65"
Weight: 2.0 lb.

Installation Manual

Tech Sheet
