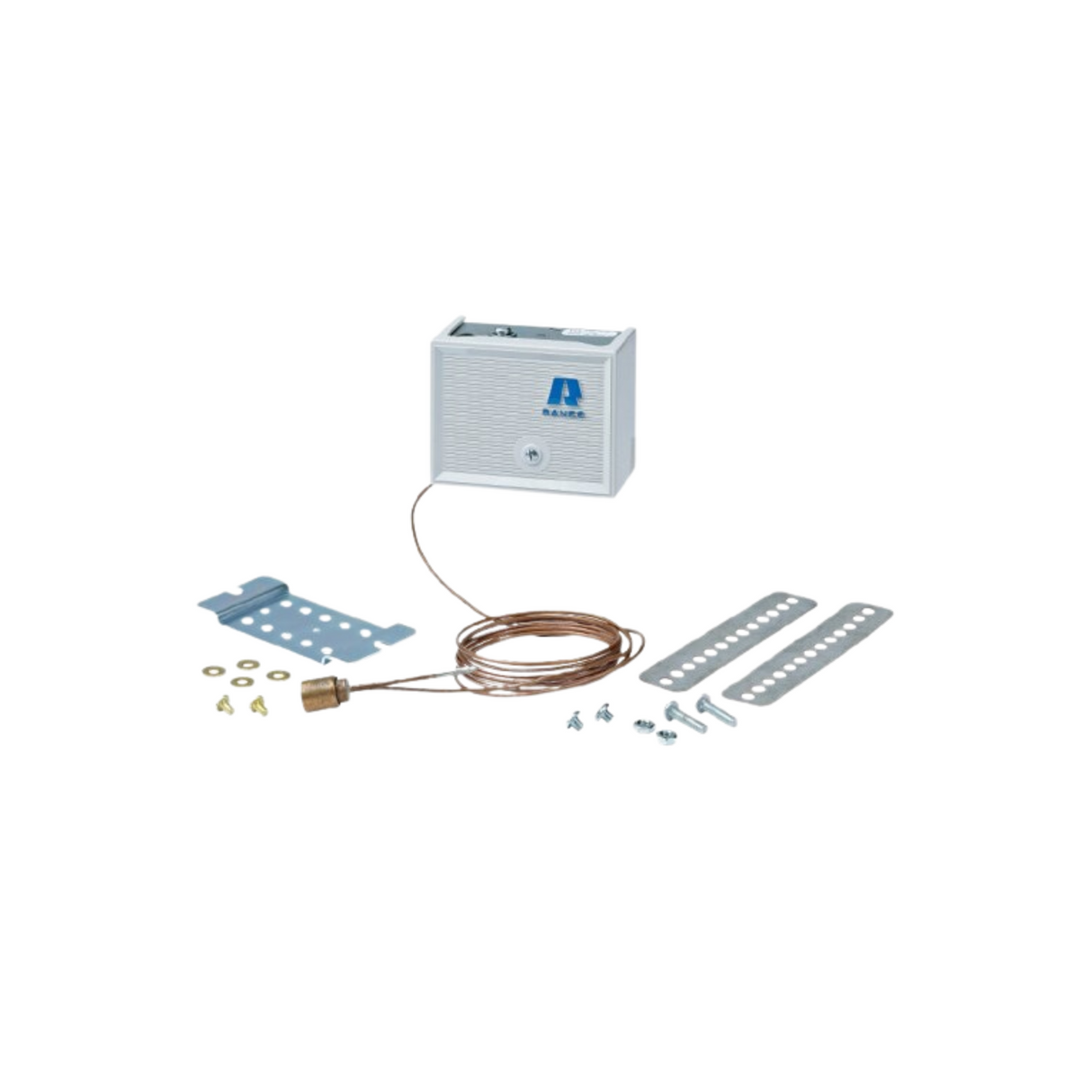

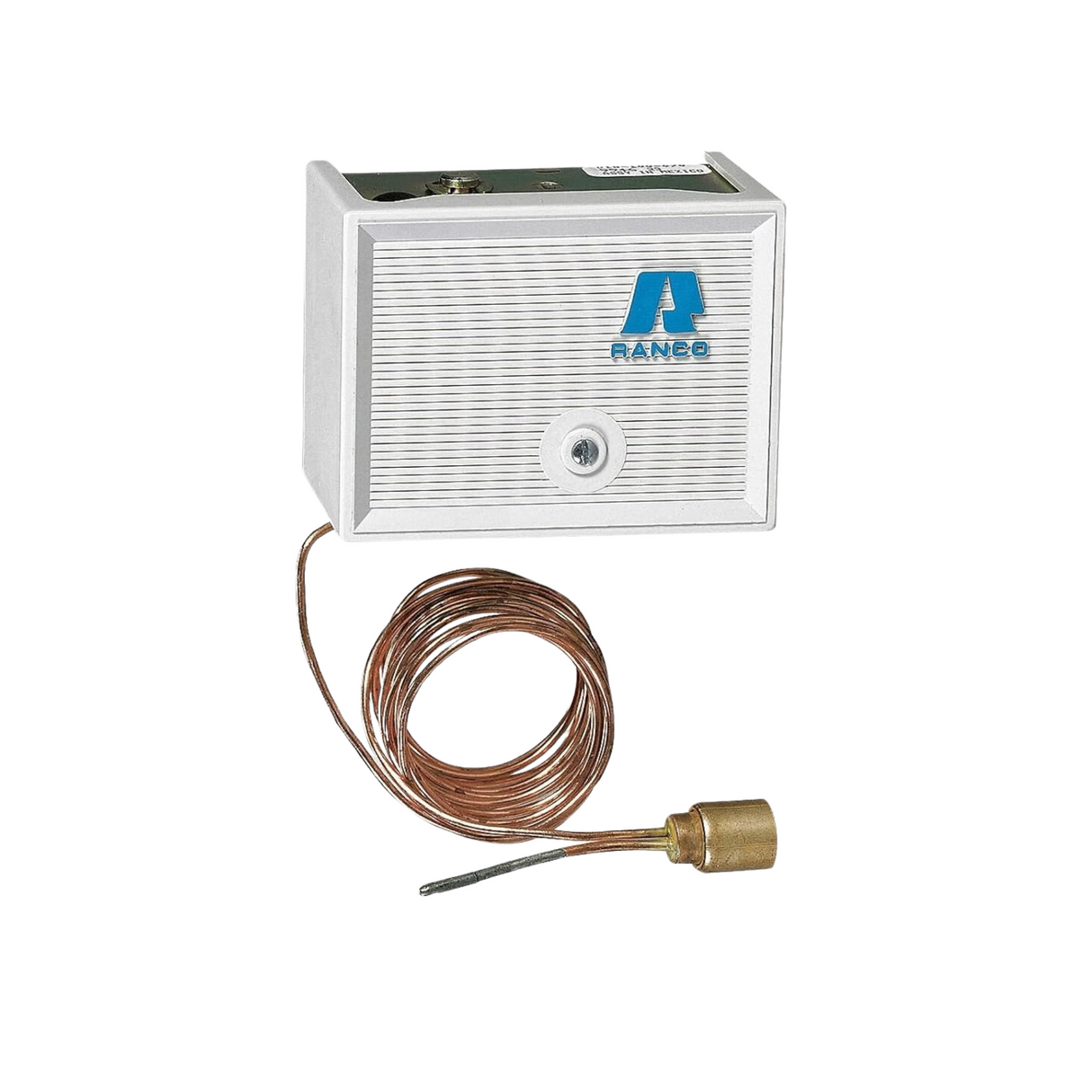

Ranco O18-100 76" Ice Bank Control
Description
Description
The Ranco O Series Ice Bank Control is suitable for soft drink dispensers, drink vending machines and ice builders for thermal storage. Uses a special water-filled bulb and transmission fluid to control ice thickness in applications utilizing a refrigerated water bath with ice bank reserve capacity.
Features:
Maximum Adjustment Accuracy with 7 Revolution Range Adjustment Screw
Universal Mounting and Compact Design
Laser-Welded Bellows for Extended Life
Wide Range Adjustable Differential
10 Times Setting Sensitivity of Most Other Wide Range Control
Gas-Filled, Non-Position-Sensitive Bulb
NEMA 1 Enclosure with Non-Conductive Cover
Manufacturer: Ranco
Manufacturer Part Number: O18-100
Product Type: Ice Bank Control
Capillary Length: 76"
Switch Type: SPST
Cut-In: 34.5 Degrees F
Cut-Out: 27.5 Degrees F
Sensor Type: Bulb
Switch Type: SPTS
Dimensions: 4.4" x 6.8" x 2.7"
Weight: 2.0 lb.
