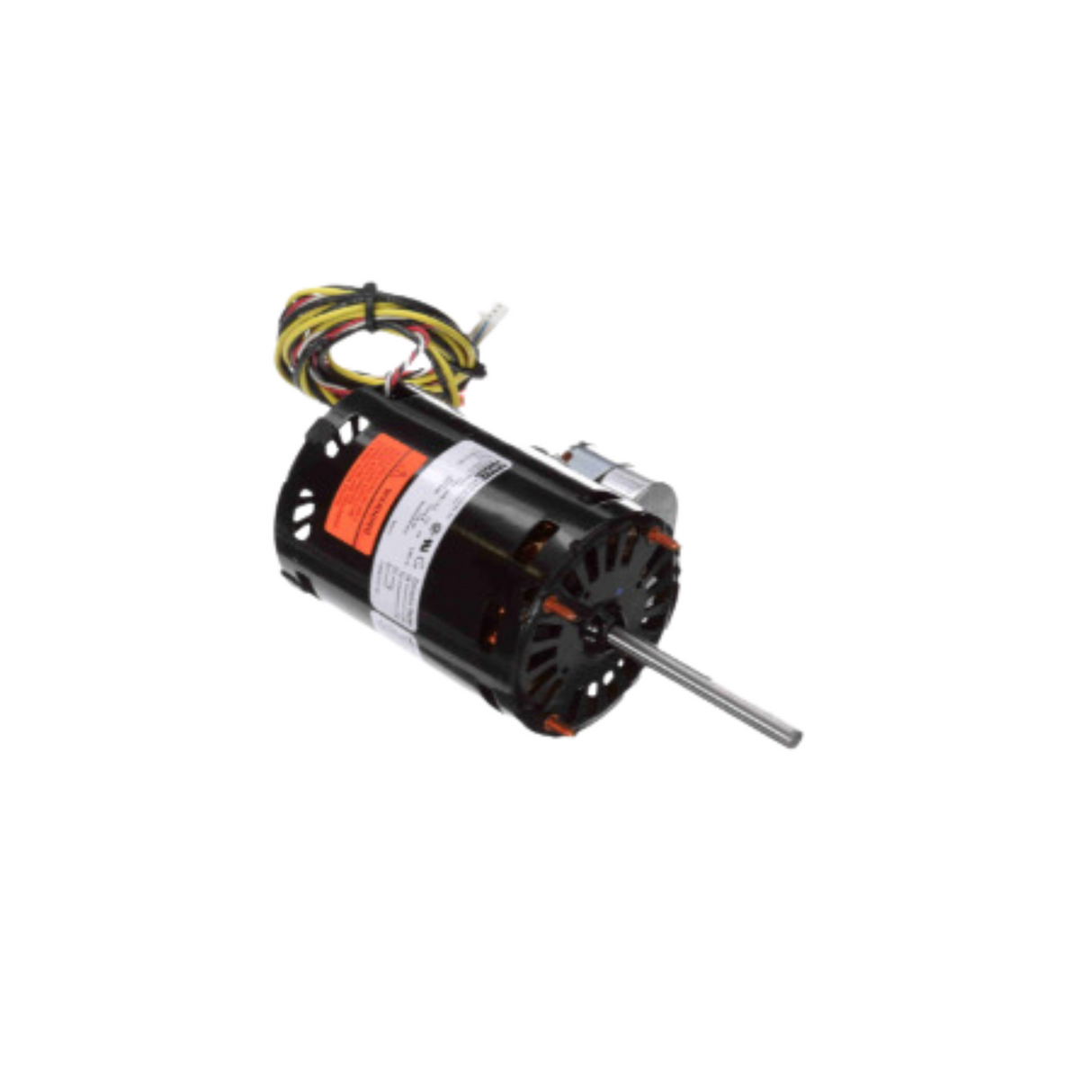

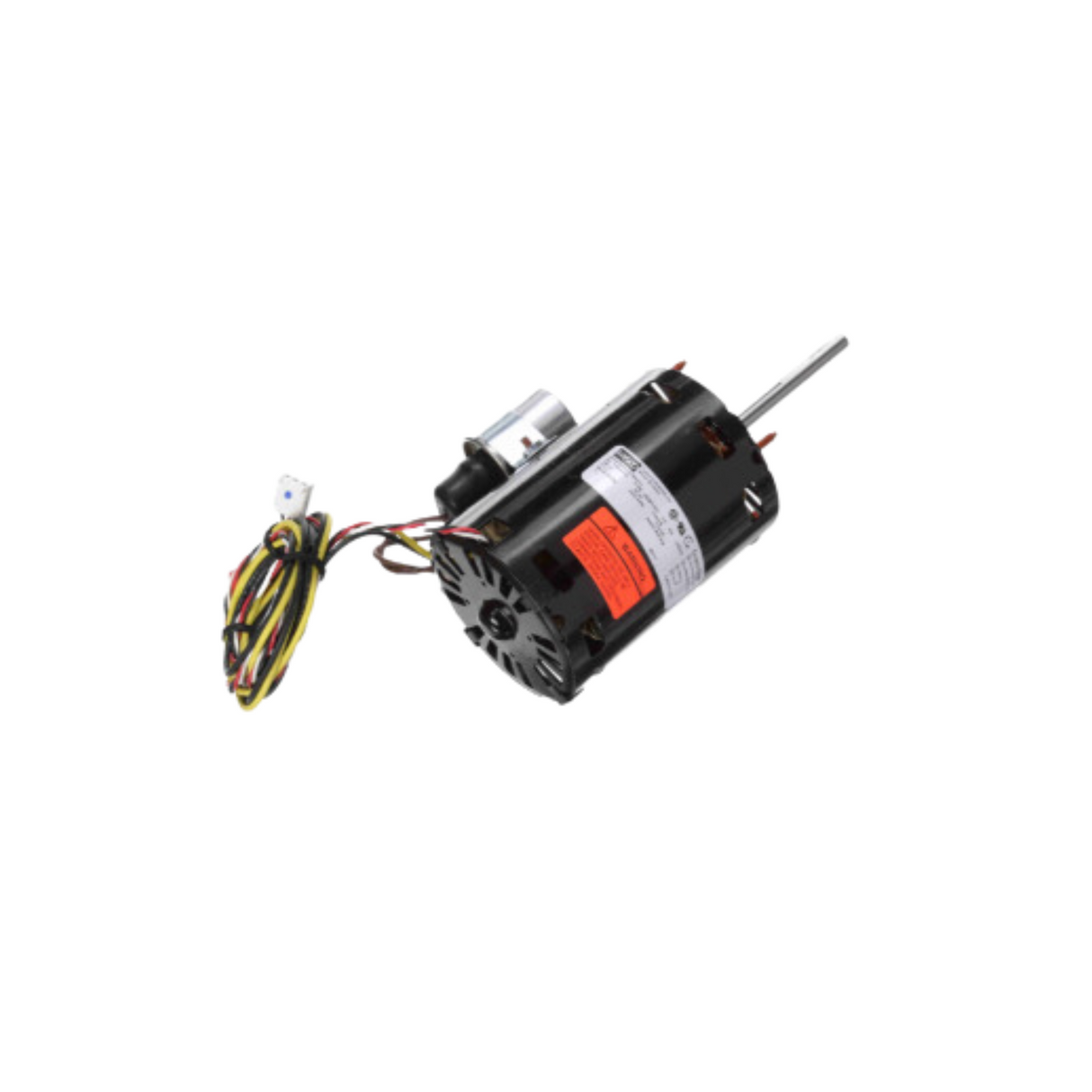

Regal Rexnord - Fasco D1184 460 V 0.3 A 3450 1/16 HP Counterclockwise Draft Inducer Blower
Regal Rexnord - Fasco D1184 460 V 0.3 A 3450 1/16 HP Counterclockwise Draft Inducer Blower is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Regal Rexnord - Fasco D1184 460 V 0.3 A 3450 1/16 HP Counterclockwi...
Description
Description
Features:
Draft Inducer Motor
3.3" Diameter
Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Shaft End End-Frame and Lead End End-Frame, Open Lead End Shell and Enclosed Shaft End Shell, Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
5/16" Diameter Shaft with Double Flat
56" Leads with Spade Terminals
Extended Studs Shaft End
Specifications:
Manufacturer: Regal Rexnord - Fasco
Manufacturer Part Number: D1184
Product Type: Draft Inducer Blower
Voltage Rating: 460 V
Frequency Rating: 60 Hz
Current Rating: 0.3 A
No. of Phase: 1
No. of Speed: 1
RPM: 3450
HP: 1/16
Frame Size: 3.3
Rotation: Counterclockwise
Dimensions: 12.4" x 5.55" x 4.4"
Weight: 5.03 lb.
