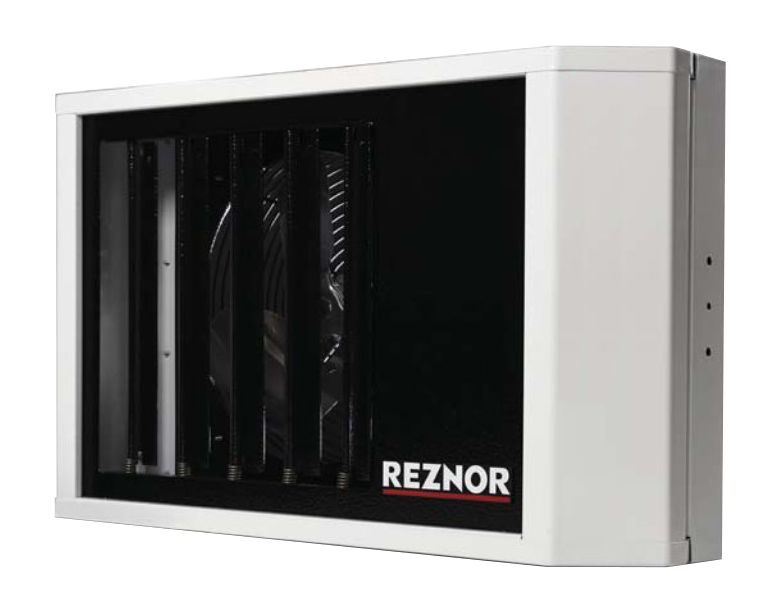

Reznor Model H Destratification Fans
Destratification Fans
Reznor® Destratification Fans move warm air from the upper reaches of the space back to the floor using minimal energy improving overall building energy efficiency and occupant comfort. During heating season, this action minimizes the amount and cost of heat needed to satisfy occupant comfort or product safety by eliminating the natural stratification that occurs and directing heat already provided to the space back to lower levels. Model H destratification fans are available in four sizes based on maximum mounting height ranging from 25 to 60 feet. Huracan fans can reduce cooling load as well by providing a consistent yet gentle air flow during the heat of summer or warmer days during spring and fall. Integrated louvers and directional brackets enable directed airflow in unusual geometry spaces or around features that block airflow such as warehouse shelving.

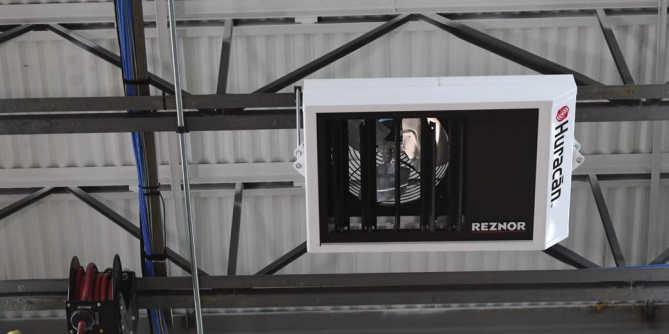

Reznor Destratification Fans are extremely flexible for installation with two-point suspension from threaded rod. The unique Reznor side mounting brackets are designed for vertical or angled mounting and the front of the units have directional louvers to fine tune air distribution. Reznor Destrat fans have features that improve control and make servicing the unit easier and installation safer.
STANDARD FEATURES & BENEFITS
- Reduces heat load and building energy efficiency by distributing existing space heat to all levels including the floor that is occupied
- Provide cooling air movement improving occupant comfort
- Suitable for use in spaces with 10 to 60 feet of height to effectively drive air to the floor
- Ready for most building electrical – Low Amp Draw
- Easy to direct airflow – side brackets are designed for vertical or angled mounting and the front of the units have directional louvers
- Energy savings - EPACT Compliant axial fan motors
- Safe Operation – Close mesh fan guards
- Ease of installation – Lightweight units, External control and power connections
- Attractive styling – Blends in with Ceiling, complimentary to Reznor Unit Heaters
OPTIONAL FEATURES
- Multiple Voltage options: 120V/1ph, 208V/1ph, 230V/1ph, 240V/1ph, 277V/1ph
- Remote occupied/unoccupied (on/o) switch available for manual operation
- Multi-unit controls for zoning up to 5 units
- Internal temperature control so unit runs only when needed saving operating expense
- Single stage for simple temperature driven control
- Dual stage thermostat for use when coordinating unit heater and destratification operation to reduce operating expense
- BACnet linkable thermostat for Building Management System (BMS) integration
- Thermostat protection and mounting
