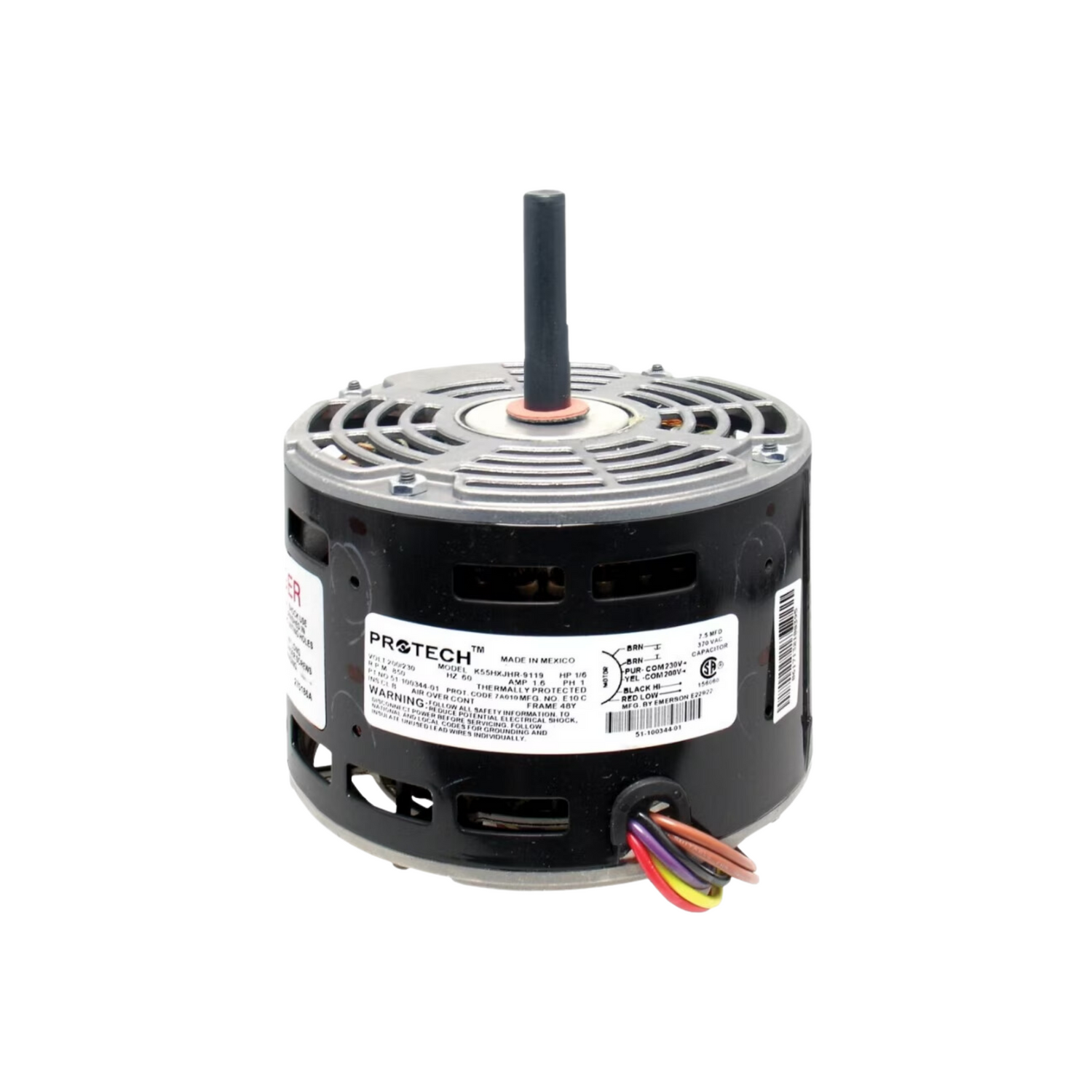

Rheem 51-100344-01 1/6 HP 1 Phase, 2 Speed Blower Motor
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-100344-01
Product Type: Blower Motor
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 230V: 1.60 A
Frame Size: 48
Frequency: 60 Hz
High Speed: 825 RPM
HP: 1/6
Input Voltage: 208, 230 V
Keyed/Flat Shaft Length: 1 1/2"
LRA at 230V: 2.40 A
Motor Body Diameter: 5 5/8"
Motor Body Length: 4 1/16"
Mounting: Shell-band. Shell-screw
No. of Phases: 1
No. of Speeds: 2
Overall Motor Length: 6 11/16"
Overall Shaft Length: 2 5/8"
Rotation Direction: CCW
Run Capacitor: 7.5/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 13.2" x 7.25" x 6.95"
Weight: 11.07 lb.
