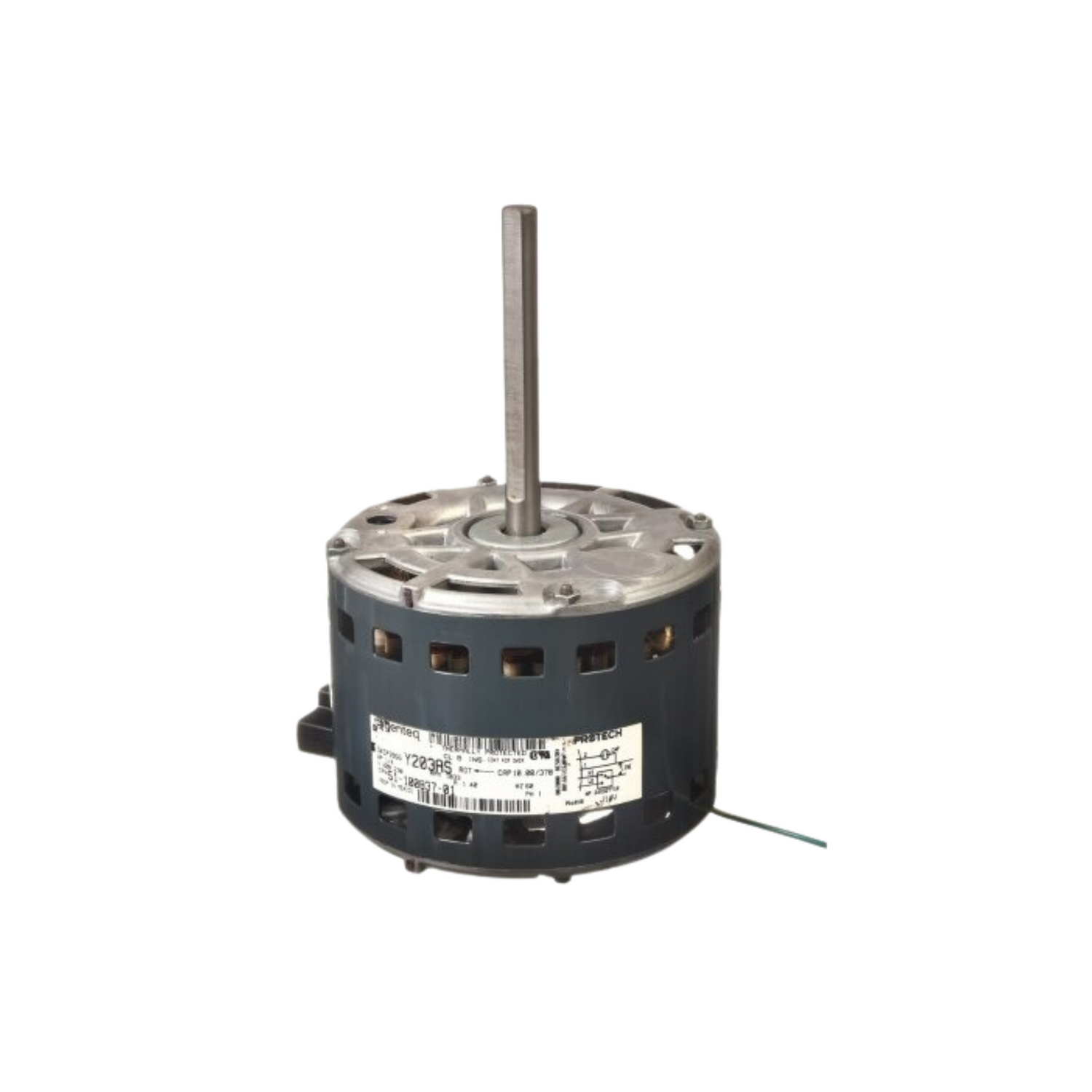

Rheem 51-100837-08 1/2 HP 1 Phase, 2 Speed Blower Motor
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fedex ground and freight. Free Shipping on everything!
Description
Description
Specifications:
Manufacturer: Rheem
Manufacturer Part Number: 51-100837-08
Product Type: Blower Motor
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 380-415V: 1.20 A
FLA at 460V: 1.20 A
Frame Size: 48
Frequency: 50, 60 Hz
High Speed: 1075 RPM
HP: 1/2
Input Voltage: 380-415 V, 460 V
Keyed/Flat Shaft Length: 4"
LRA at 380-415V: 2.40 A
LRA at 460V: 2.40 A
Motor Body Diameter: 5 5/8"
Motor Body Length: 5 15/64"
Mounting: Shell-band
No. of Phases: 1
No. of Speeds: 2
Overall Motor Length: 9 47/64"
Overall Shaft Length: 4 1/2"
Rotation Direction: CCW
Run Capacitor: 20/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 14.5" x 7.2" x 6.8"
Weight: 10.6 lb.
