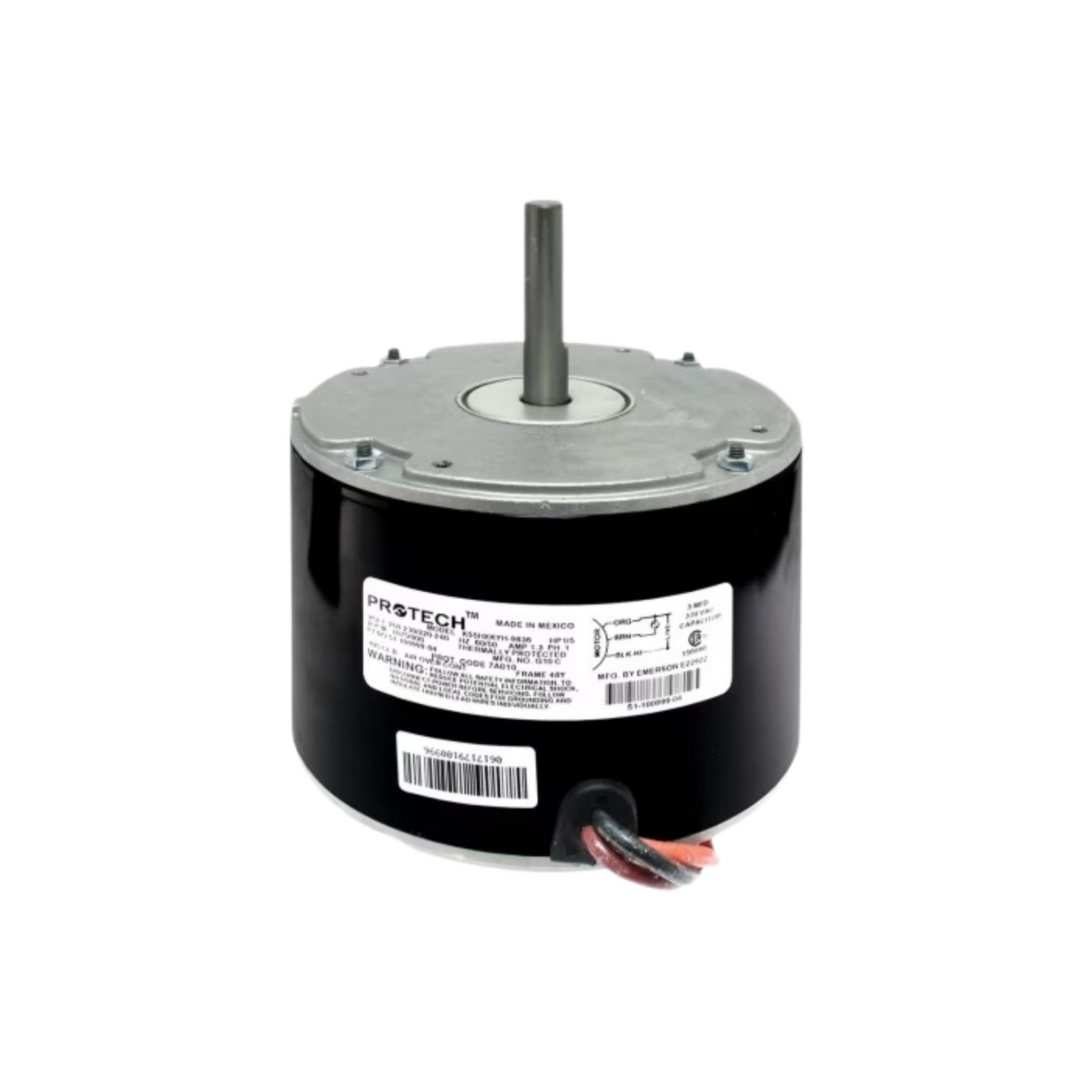

Rheem 51-100998-20 1/3 HP 1 Phase, 1 Speed Condenser Motor

The Condenser Motor transfers heat from the refrigerant system into outdoor air, keeping your compresser from over-heating. The OEM replacement condenser motor extends equipment life by replacing old or damaged HVAC motors in ventilators, fans, and blowers. The parts match the equipment's existing motor from the original manufacturer to ensure faultless installation and consistent performance.

Specifications:

Manufacturer: Rheem
Manufacturer Part Number: 51-100998-20
Product Type: Condenser
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 380-415V: 1.00 A
FLA at 460V: 1.00 A
Frame Size: 48
Frequency: 50, 60 Hz
High Speed: 1075 RPM
HP: 1/3
Input Voltage: 380-415 V, 460 V
Keyed/Flat Shaft Length: 2 3/4"
LRA at 380-415V: 2.20 A
LRA at 460V: 2.20 A
Motor Body Diameter: 5 39/64"
Motor Body Length: 5 1/2"
Mounting: End boss, Shell-band
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length: 9 3/16"
Overall Shaft Length: 3 9/32"
Rotation Direction: CCW
Run Capacitor: 7.5/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 14.65" x 7.05" x 7.15"
Weight: 17.92 lb.
