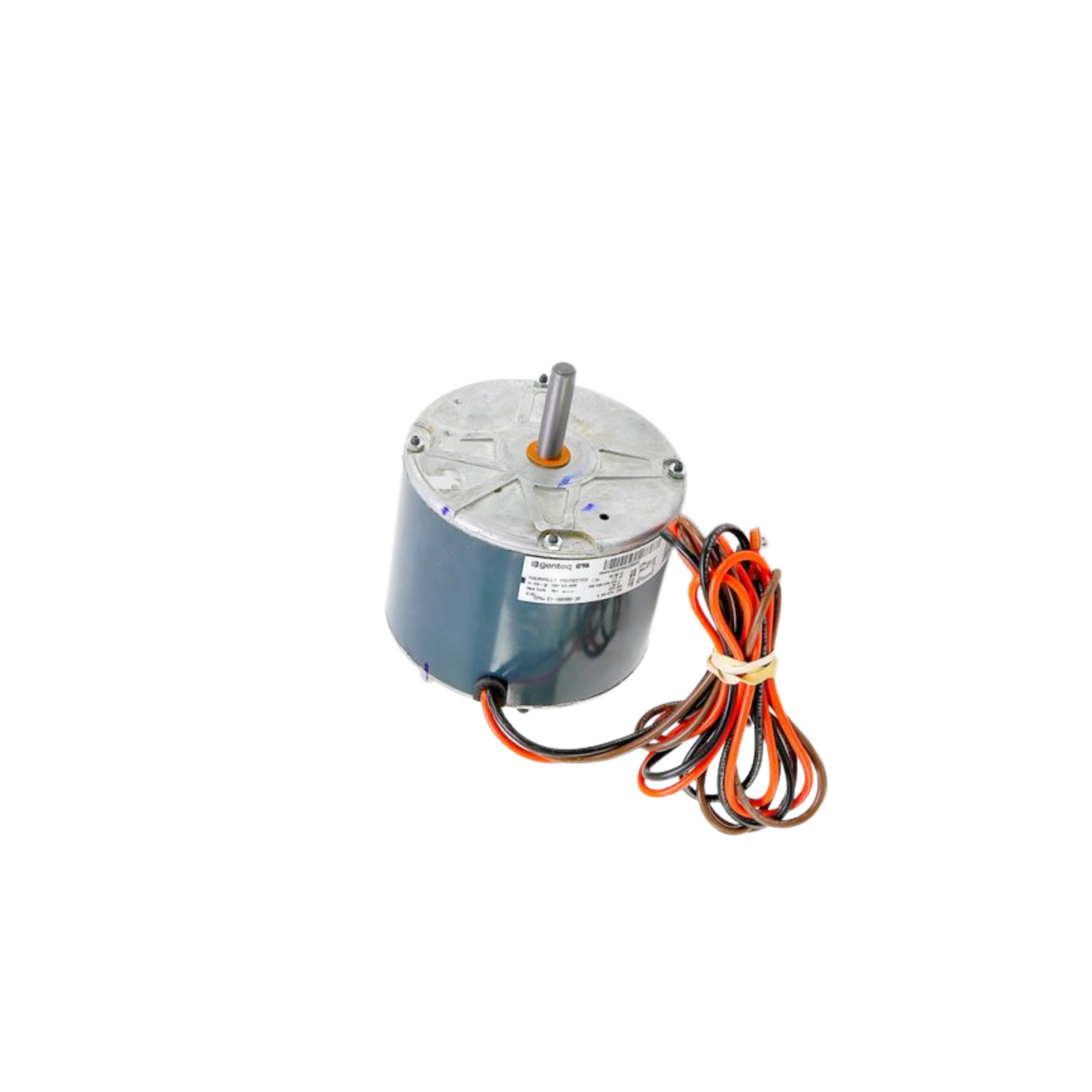

Rheem 51-100998-30 1/3 HP 1 Phase, 1 Speed Condenser Motor

The Condenser Motor transfers heat from the refrigerant system into outdoor air, keeping your compresser from over-heating. The OEM replacement condenser motor extends equipment life by replacing old or damaged HVAC motors in ventilators, fans, and blowers. The parts match the equipment's existing motor from the original manufacturer to ensure faultless installation and consistent performance.

Specifications:

Manufacturer: Rheem
Manufacturer Part Number: 51-100998-30
Product Type: Condenser Motor
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 208V: 1.50 A
FLA at 220V: 1.50 A
FLA at 230V: 1.50 A
Frame Size: 48
Frequency: 50, 60 HZ
High Speed: 1075 RPM
HP: 1/3
Input Voltage: 208, 230 V
Keyed/Flat Shaft Length: 1 3/4"
LRA at 208V: 3.00 A
LRA at 220V: 3.00 A
LRA at 230V: 3.00 A
Motor Body Diameter: 5 39/64"
Motor Body Length: 4 1/2"
Mounting: End-boss, Shell-band
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length: 6 1/2"
Overall Shaft Length: 2"
Rotation Direction: CCW
Run Capacitor: 5/370 uF/V
Shaft Diameter: 1/2"
Dimensions: 14.45" x 8.05" x 7.15"
Weight: 11.57 lb.
